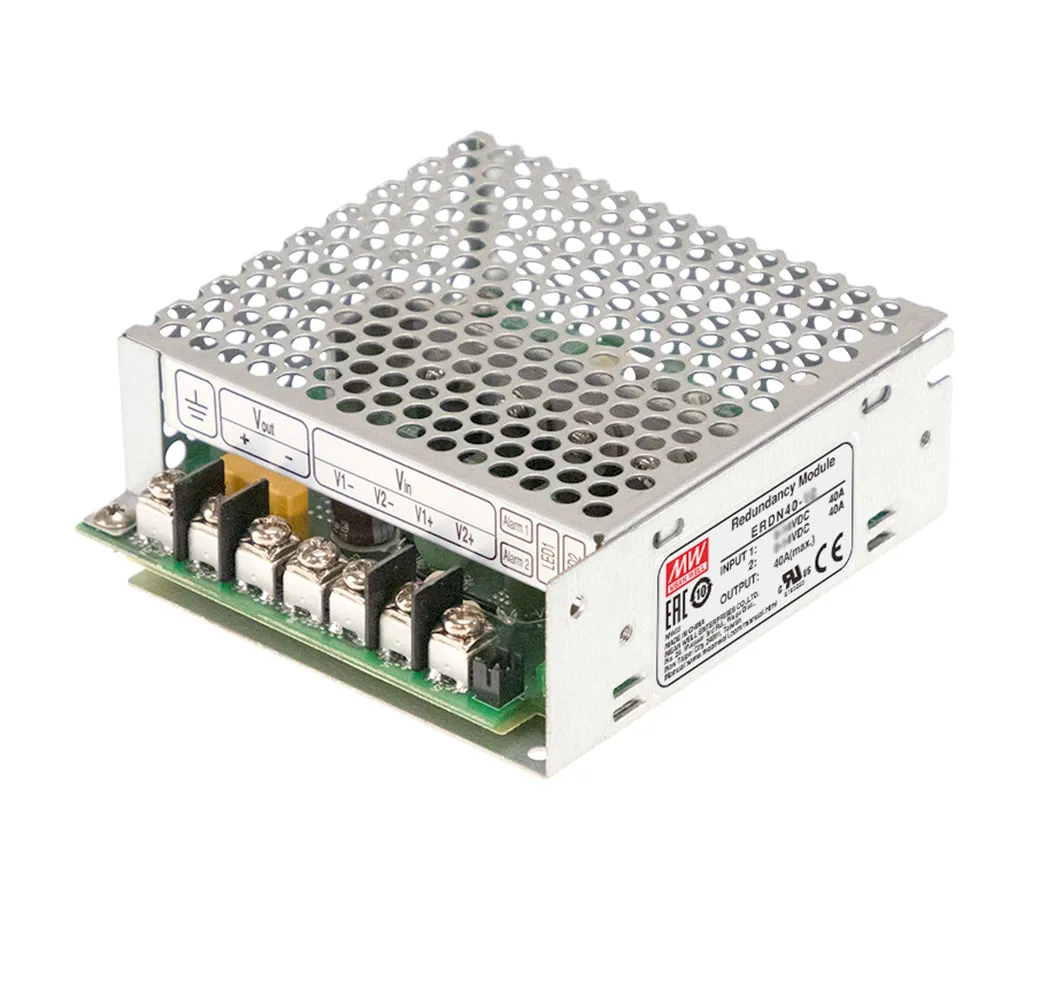

40A 24V Power Redundancy Module Enclosed Frame
Features
- Supports 1+1 and N+1 redundancy system
- 2 channels input and 1 output
- Suitable for redundancy operation of 24V systems
- Output current up to 40 amps
- Cooling by free air convection
- Ultra-wide operating temperature: -40 to +80°C (>+60°C derating)
- Built-in 2 channels DC OK signal and alarm relay contact
- 3 year warranty
Specifications
- Output: 0 to 40A, continuous
- Capacitance: 320µF (typ.)
- Number of Inputs: 2 channels
- DC Normal Voltage: 24 VDC
- DC Voltage Range: 19 to 29 VDC
- Rated Current: 0 to 20 A x2 input; 0 to 40 A x1 input Continuous
- Screw terminal blocks for input and output
- Size: 3.82"W x 3.90"D x 1.42"H (97 x 99 x 36 mm)
- Agency Approvals: UL, CUL, CB, CE, EN, EAC
Applications
- Industrial control systems
- Semiconductor fabrication equipment
- Factory automation
- Electromechanical apparatus
Product Identification
Product Type:Redundancy Module
Manufacturer Series:ERDN40
Compliance
Agency Approvals:UL, CUL, CB, CE, EN, EAC
Dimensions & Appearance
Color:Silver
Height:1.42 in.
Width:3.9 in.
Length:3.82 in.
Operating conditions
Minimum Operating Temperature:-40°C
Maximum Operating Temperature:80°C
Input
Input Voltage:24 VDC
Input Voltage Range:19 VDC to 29 VDC
Maximum Input Current:40 A
Output
Number of Outputs:1
Output Connector Type:Screw Terminal Block
Output Voltage:24 VDC
Additional Output Voltages (VDC):N/A
Output Current:40 A
Features
Pins:7
Power Rating:1.5 W
Efficiency:98%
