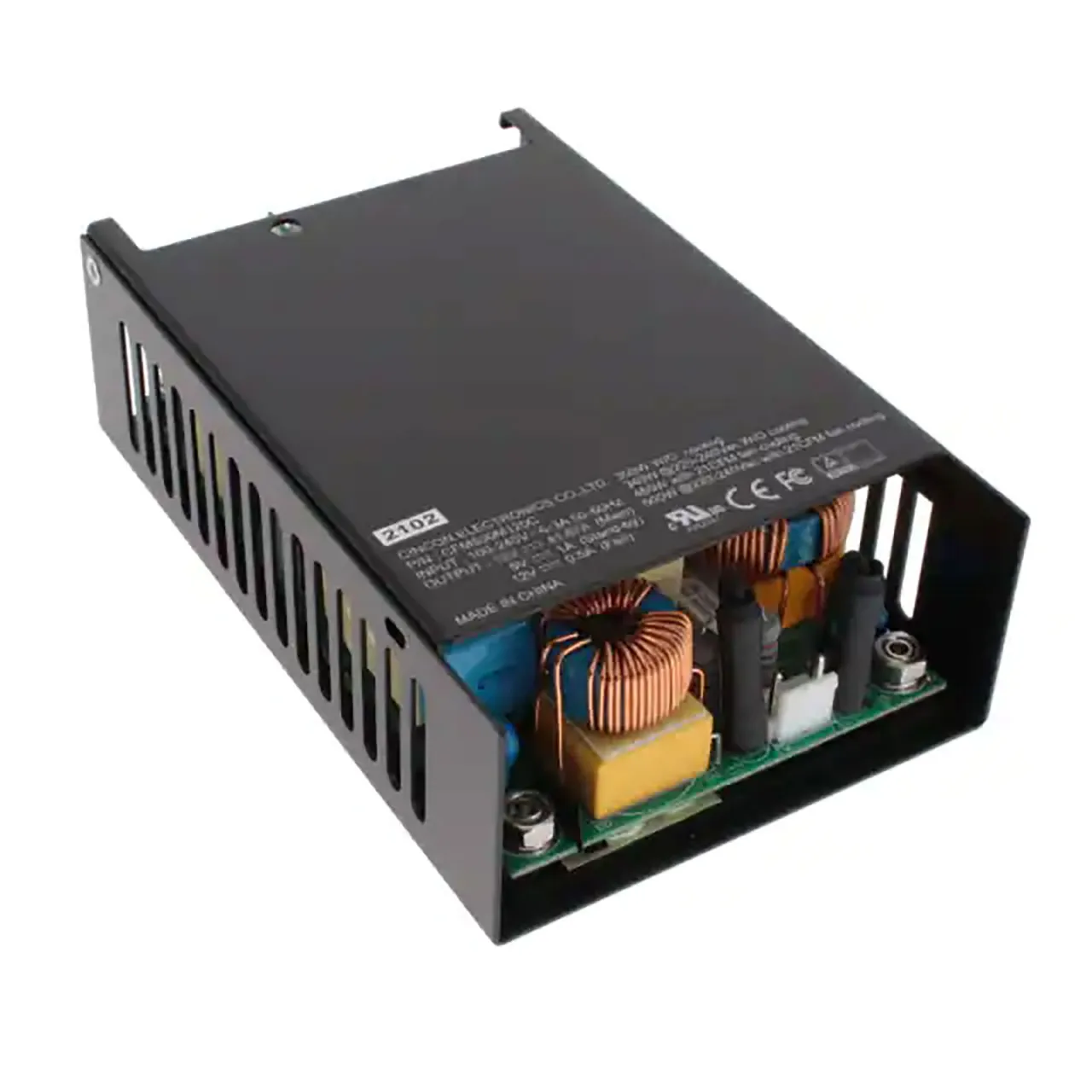

409W Single Output Medical AC-DC Open Frame Power Module with Cover 24VDC 17.08A PFC

Features

  • Universal Input Range 80 to 264 Vac
  • High Efficiency up to 94.5%
  • 3"x 5" Compact Size
  • Class I
  • No Load Power Consumption<0.5W
  • Approval IEC/EN/UL 60601-1 2 MOPP
  • Approval EN 55011, 47 CFR FCC Part 18
  • Active PFC Meets EN 61000-3-2
  • Meets IEC/EN 60335-1
  • Operating Altitude 5000m
  • High Power Density up to 21.64W/Inch3
  • 409W Natural, 470 to 500W Conduction Convection
  • Over Temperature Protection
  • PS On/Off Remote Control
  • Power Good & Power Fail Signal
  • +5V Stand-by, 12V Fan Output
  • Low Inrush Current

Product Identification

Type:Auto Switching SMPS
Manufacturer Series:CFM500M
Product Type:AC to DC Power Supply SMPS

Compliance

Agency Approvals: CE, CUL, EN, FCC, TUV, UL

Dimensions & Appearance

Color:Black
Style:Medical Open Frame
Height:1.673 in.
Width:3.425 in.
Length:5.354 in.

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:85°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:80 VAC to 264 VAC
Maximum Input Current:6 A

Output

Number of Outputs:1
Output Connector Diameters:N/A
Output Connector Type:Screw Terminals
Output Voltage:24 VDC
Additional Output Voltages (VDC):N/A
Output Current:17.08 A

Features

Minimum Isolation Voltage:4000V
Efficiency:94.5%
Power Rating:409 W
,
