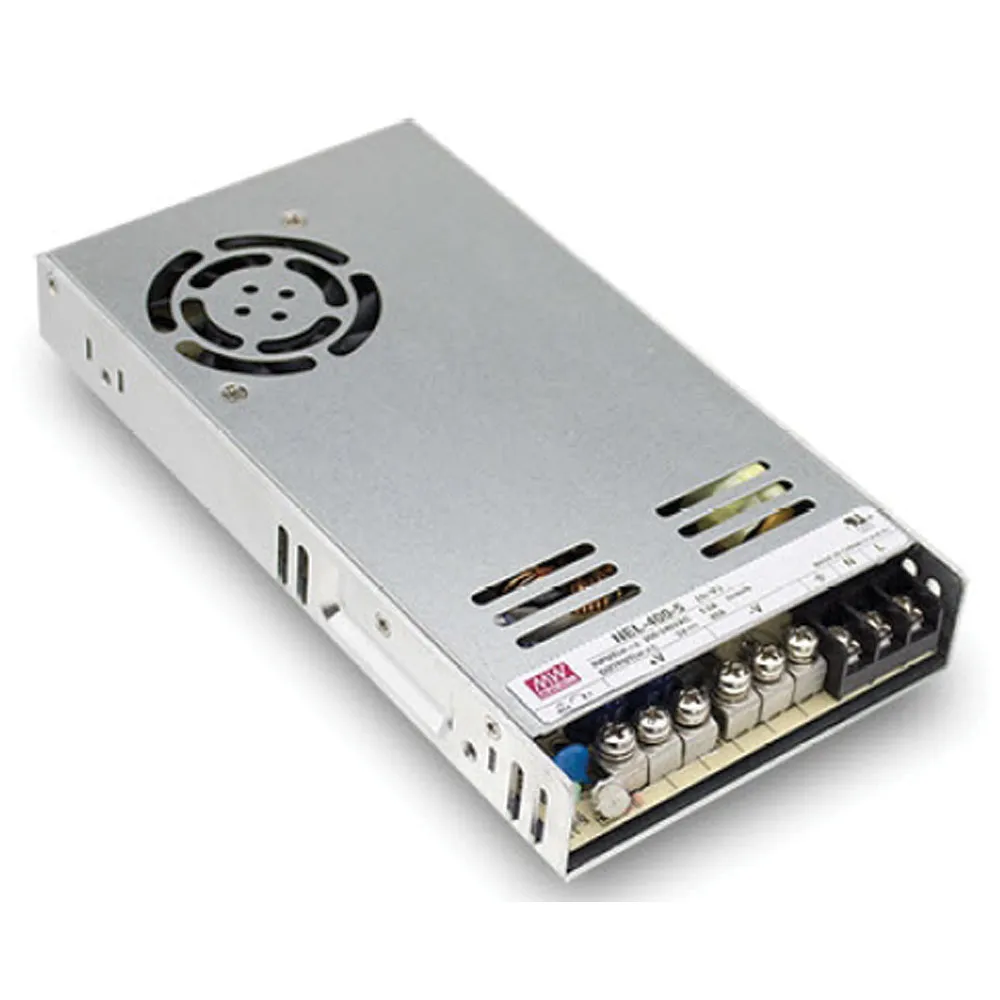

400W 80A 5V Single Output AC/DC Switching Power Supply

Specifications

  • Output Power (W): 400
  • DC Voltage (V): 5
  • Rated Current (A): 80
  • Ripple & Noise (mV p-p): 150
  • Efficiency: 84%
  • Size (L x W x H) inches: 8.46 x 4.52 x 1.18
  • Universal AC input: 180 - 264 V
  • Protections: short circuit, over voltage, overload, over temperature
  • Forced air cooling by built in DC fan
  • 2 year warranty

Product Identification

Type:Auto Switching SMPS
Manufacturer Series:NEL-400

Compliance

Agency Approvals: CUL, EAC, UL

Dimensions & Appearance

Style:Enclosed
Color:Silver
Height:1.18 in.
Width:4.53 in.
Length:8.46 in.

Operating conditions

Minimum Operating Temperature:-20°C
Maximum Operating Temperature:60°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:180 VAC to 264 VAC
Maximum Input Current:5 A

Output

Number of Outputs:1
Output Voltage (Channel 1):5 VDC
Output Voltage:5 VDC
Output Connector Type:Screw Terminal Block
Output Current (Channel 1):80 A
Output Current:80 A

Features

PFC Function:No
Minimum Isolation Voltage:3000V
Efficiency:84%
Power Rating:400 W
,
