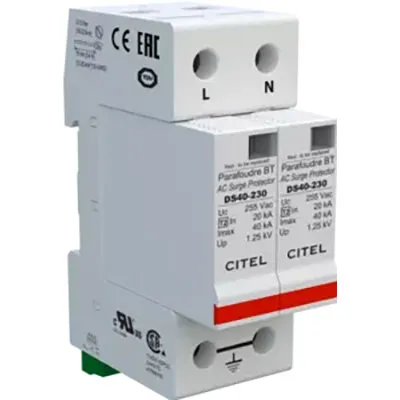

400/230VAC 3Y-Phase 2W+G DIN Rail Surge Protection Device MOV 480V MCOV 40kA IMAX

This surge protection device (SPD) designed for 400 OR 230 VAC 3-phase AC Power circuits and uses MOV technology. It features 40kA surge current rating per module and is UL1449 Type 4CA. It has a visual fault indicator, remote contacts, and comes with a 10-year warranty.

Specifications

• Protection Mode(s): Common Mode or Differential Mode
• Power SPD Type: UL1449 Type 4CA
• Volts: 480 V
• AC voltage systems
• Phase: 1
• Amps: n/a
• Ambient Temperature: -35°C to +60°C
• Modes: L-L, L-G
• VPR (V): 2730 / - / 1600 / -
• MCOV (V): 480 / - / 275 -
• IN: 20 kA
• SCCR: (kA): N/A
• IMAX: 40 kA
• Technology: MOV
• Network Configuration: 1PH, 2W+G, Single Phase (or 2PH, 2W+G, Two Phase)
• Connection Method: Screw Terminal (8 to 12 AWG)
• Mounting: DIN RAIL
• Material: Thermoplastic UL94-V0
• NEMA Rating (IP Rating): NEMA 2 (IP20)
• Fail-Safe Behavior: Disconnection via fuse-link
• Real-Time Diagnostics: Visual indicator and remote contacts
• Certification: CSA, EAC, UL, TUV SUD
• UL Standard: UL 1449 5th Edition
• UL Category: VZCA2, VZCA8
• UL File Number: E326289
• Standards: NOM-003-SCFI-2014, NOM-001-SCFI-1993
