400/230 VAC 3-Phase 3W+G Delta DIN Rail Surge Protection Device MOV 275V MCOV 40kA IMAX

This surge protection device (SPD) designed for 400 or 230 VAC 3-phase AC Power circuits and uses MOV technology. It features 40kA surge current rating per module and is UL1449 Type 4CA listed. It has a visual fault indicator, remote contacts, and comes with a 10-year warranty.

Specifications

  • Protection Mode(s): Common Mode or Differential Mode
  • Power SPD Type: UL1449 Type 4CA
  • Volts: 400/230 V
  • AC voltage systems
  • Phase: 3Y
  • Amps: n/a
  • Ambient Temperature: -40°C to +60°C
  • Modes: L-L, L-G
  • VPR (V): 2730 / - / 1600 / -
  • MCOV (V): 480 / - / 275 / -
  • IN: 20 kA
  • SCCR: (kA): N/A
  • IMAX: 40 kA
  • Total Maximum Discharge Current: 160 kA (Imax Total)
  • limp: 4 kA
  • Technology: MOV
  • Network Configuration: 3PH, 3W+G, Delta
  • Connection Method: Screw Terminal (8 to 12 AWG)
  • Mounting: DIN RAIL
  • Material: Thermoplastic UL94-V0
  • NEMA Rating (IP Rating): NEMA 2 (IP20)
  • Fail-Safe Behavior: Disconnection via fuse-link
  • Real-Time Diagnostics: Visual indicator and remote contacts
  • Spare Part: DSM40-230
  • UL Standard: UL 1449 5th Edition
  • UL Category: VZCA2, VZCA8
  • UL File Number: E326289
  • Standards: NOM-003-SCFI-2014, NOM-001-SCFI-1993

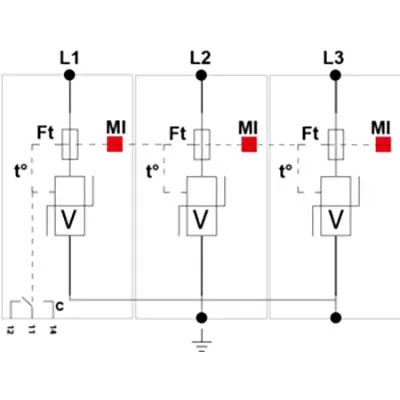

Connection Diagram

Compliance

Agency Approvals:UL1449 4CA

Dimensions & Appearance

Depth:60.80 mm
Width:54 mm
Height:90 mm
Mounting Type:DIN Rail

Input

Input Voltage:400 VAC, 230 VAC

Features

Failsafe Protection:Yes
Short Circuit Protection:N/A
IP Rating:IP20
Technology:MOV
Surge Current Rating:40 kA
Protection Style:Common Mode, Differential Mode, L-L, L-G
Application:230/400VAC 2-Phase+N
Maximum Clamping Voltage:2730 / - / 1600 / -
Voltage Rating:275 VAC
Current Rating:N/A
,
