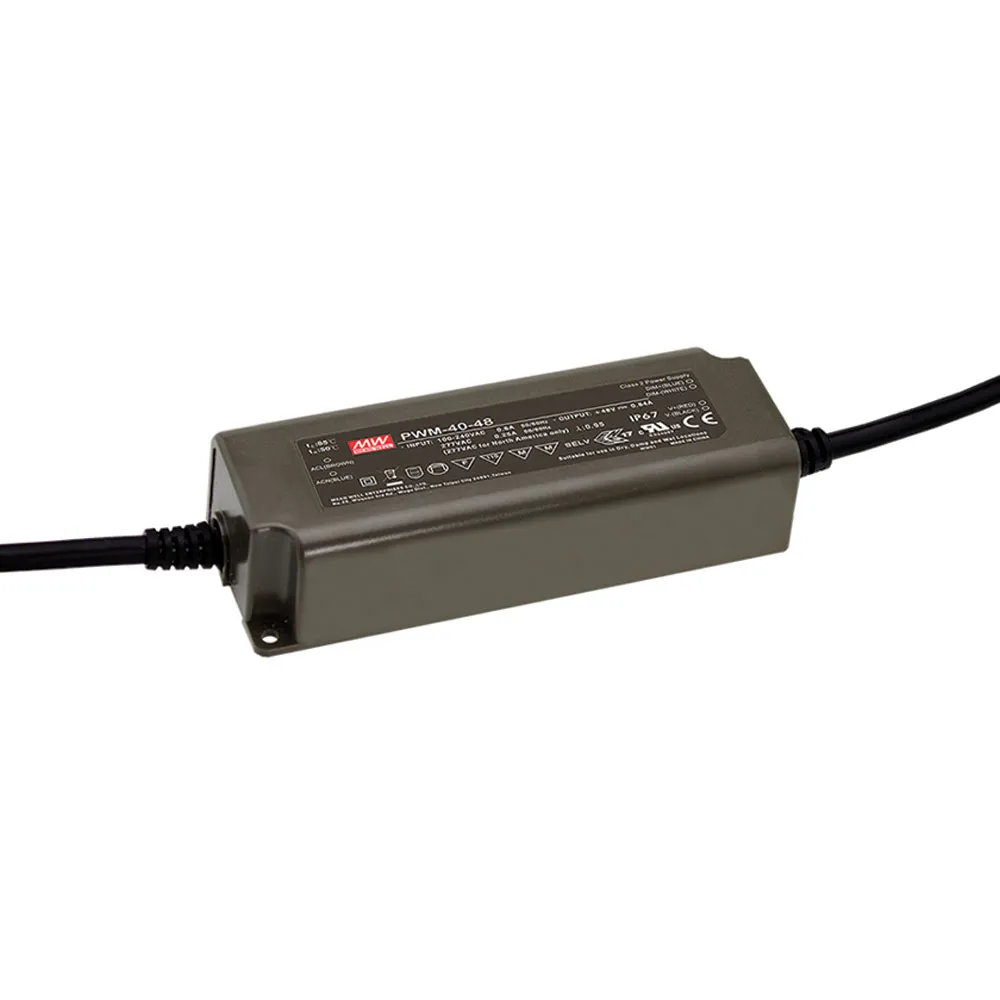

40W 36V 1.12A Enclosed LED Power Supply
36 Volts @ 1.12 AmpsFeatures
- Universal AC input / Full range (up to 305VAC)
- Built-in active PFC function
- Constant voltage PWM style output
- Built-in 3 in 1 dimming function (0-10VDC or PWM signal or resistance)
- Dimming range: 0 to 100%
- High efficiency: 90%
- Protections: Short circuit / Over load / Over voltage / Over temperature
- Class 2 power unit, no FG
- Suitable for dry / damp / wet locations
- No load power consumption <0.5W
- 5 years warranty
Applications
- LED strip lighting
- Indoor LED lighting
- LED decorative lighting
- LED architecture lighting
Product Identification
Product Type:Auto Switching SMPS
Manufacturer Series:PWM-40
Compliance
Agency Approvals: CB, CCC, CE, CUL, EAC, EN, ENEC, UL
Dimensions & Appearance
Style:Enclosed
Color:Black
Height:1.38 in.
Width:2.09 in.
Length:5.91 in.
Operating conditions
Minimum Operating Temperature:-40°C
Maximum Operating Temperature:70°C
Input
Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 305 VAC
Maximum Input Current:0.6 A
Output
Number of Outputs:1
Output Connector Type:Stripped and Tinned
Output Voltage:36 VDC
Output Current:1.12 A
Output Range:N/A
Features
PFC Function:Yes
Minimum Isolation Voltage:3750V
IP Rating:IP67
Efficiency:90%
Power Rating:40.32 W
