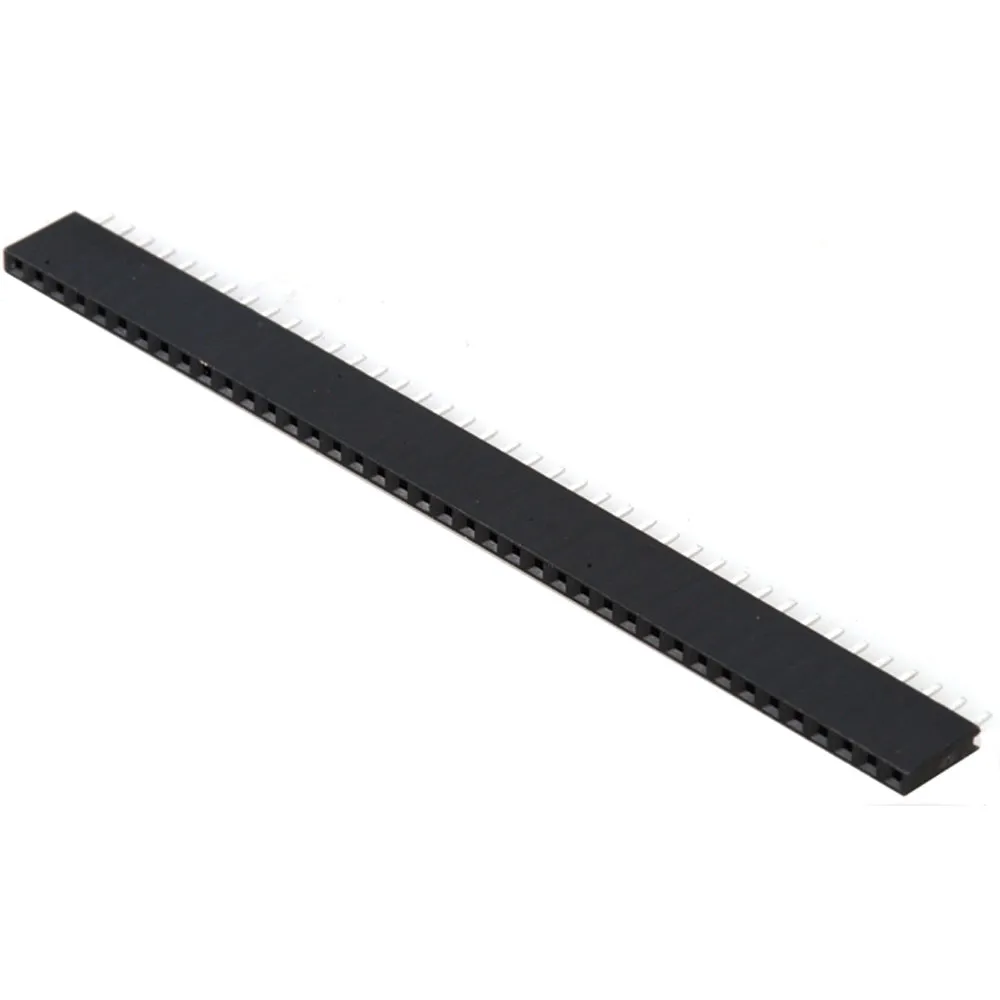

.100" Receptacle Strip
Features:
- Single row vertical mount
- Pin length: 0.118"
- Contact systems with high normal force
- Tin plated
- 40 positions
Dimensions & Appearance
Depth:8.5 mm
Length:102.1 mm
Body Orientation:Straight
Features
Number of Rows:1
Housing Color:Black
Maximum Contact Resistance:20 mOhm
Gender:Female
Contact Material:Phosphor Bronze
Number of Contacts:40
Housing Material:Polybutylene Terephthalate
Contact Plating:Tin Over Copper
Pitch:2.54 mm
Voltage Rating:250 VAC
Current Rating:3 A
