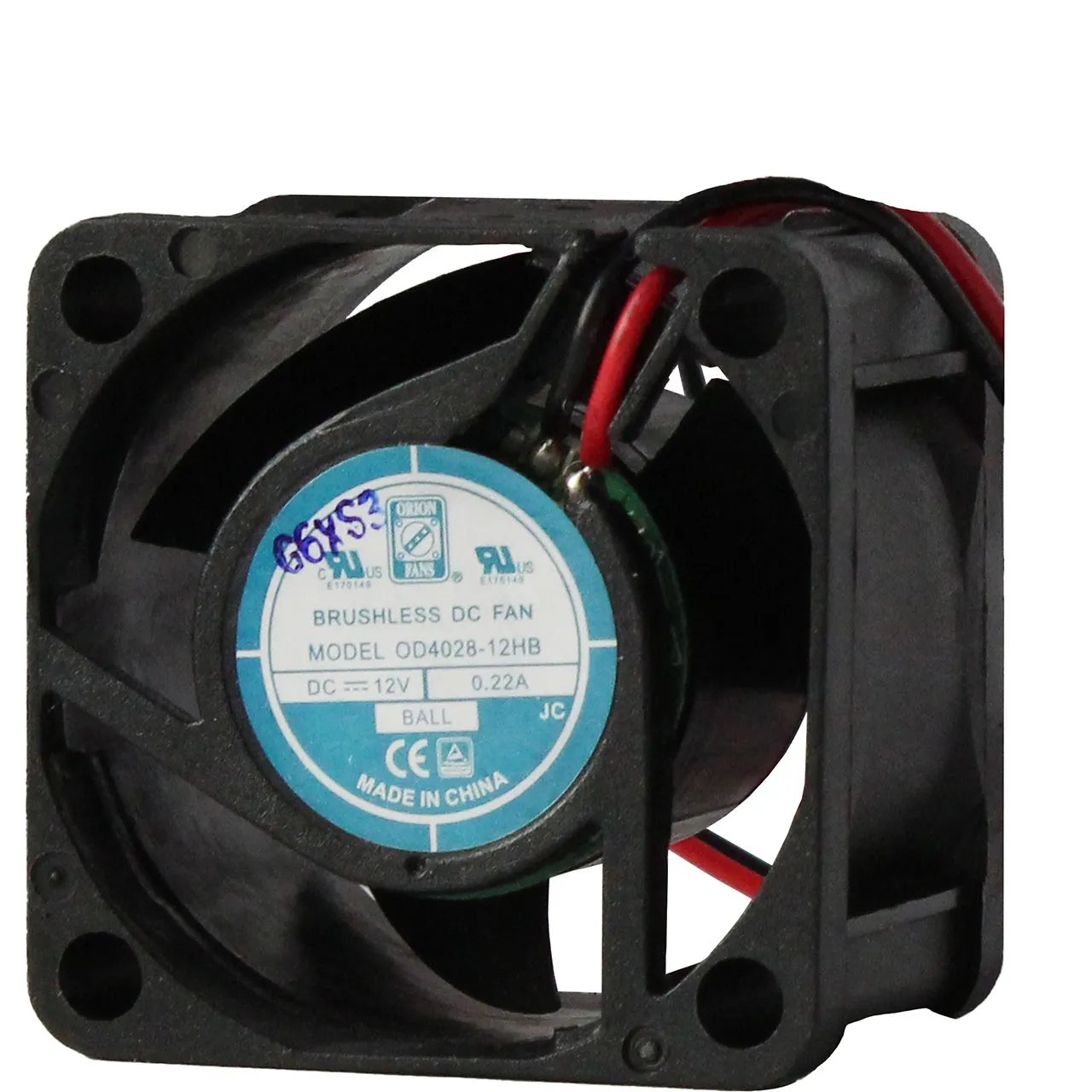

40 mm x 40 mm x 28 mm Tube Axial Fan 12 VDC Ball Bearing 9CFM 29.4dBA 12" Wires

Orion Fans

Jameco Part #:

Manufacturer #:

Primary datasheet

Product Price:

$11.250

In Stock: 0

Quantity	Unit Price	You Save	Discount
500+	$11.250	-	-
1000+	$10.650	0.60	5.33%

Features

Voltage Rating: 12 VDC
Height: 40 mm
Width: 40 mm
Depth: 28 mm
Air Flow (CFM): 9
Bearing: Ball
Current Rating: 130 mA
Power Rating: 1.56 W
Agency Approvals: UL, CUL, TUV, CE, UKCA
Noise (dBA): 29.4
Termination: 12" Wires
Product Type: 40mm x 40mm DC Fan
Speed: 6485 rpm
Maximum Pressure: 0.17 in.
Motor Drive Type: Brushless DC, Auto Restart, Impedance Protected, Polarity Protected

Overview

Fans are a necessary component when you need to keep electronics cool or to keep the air flow moving. The Ball bearing system of the tube axial fan is designed to operate up to 6485 rpm.
