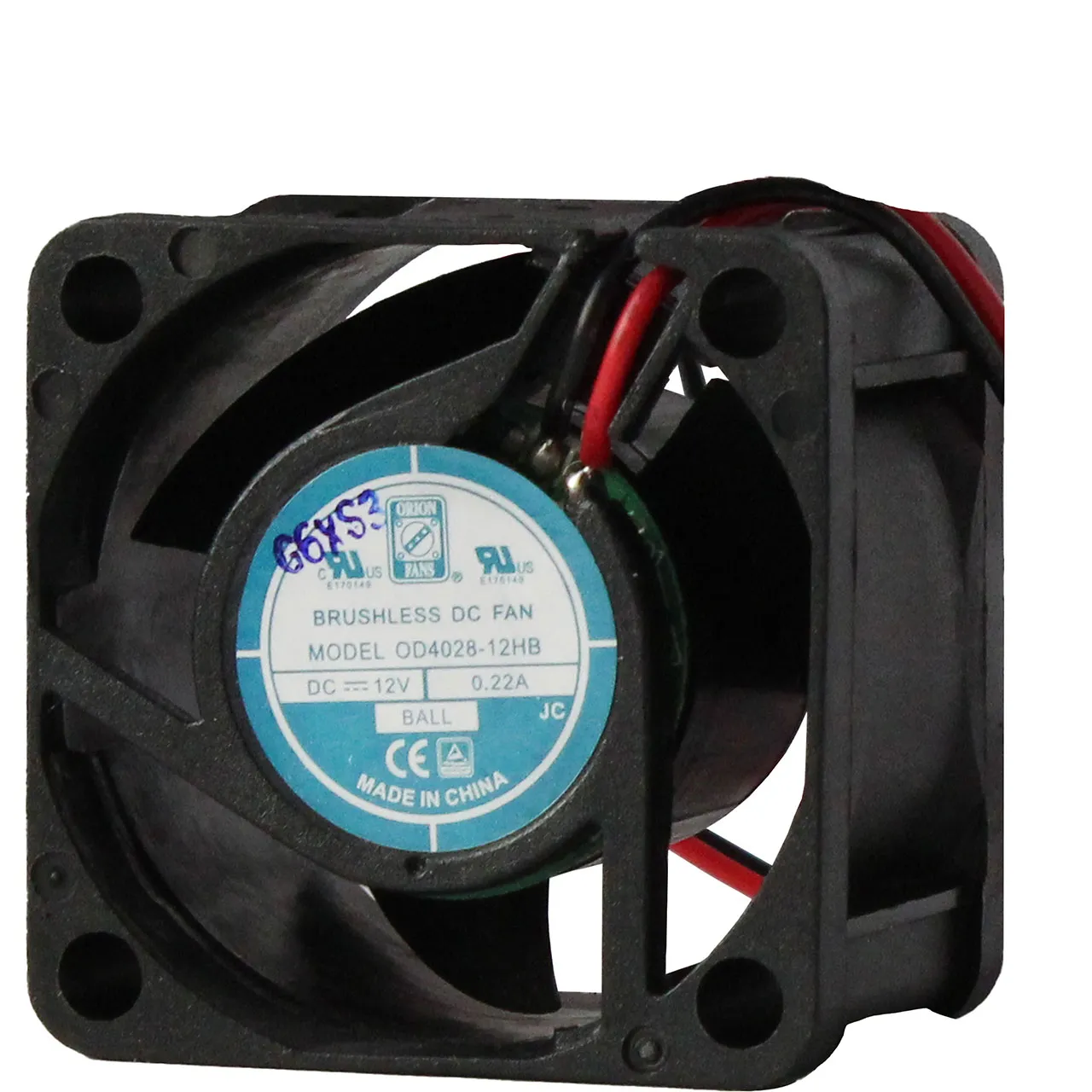

40 mm x 40 mm x 28 mm Tube Axial Fan 12 VDC Ball Bearing 31.5CFM 64.2dBA 12" Wires

Features

  • Voltage Rating: 12 VDC
  • Height: 40 mm
  • Width: 40 mm
  • Depth: 28 mm
  • Air Flow (CFM): 31.5
  • Bearing: Ball
  • Current Rating: 1400 mA
  • Power Rating: 16.8 W
  • Agency Approvals: UL, CUL, TUV, CE, UKCA
  • Noise (dBA): 64.2
  • Termination: 12" Wires
  • Product Type: 40mm x 40mm DC Fan
  • Speed: 22750 rpm
  • Maximum Pressure: 3 in.
  • Motor Drive Type: Brushless DC, Auto Restart, Impedance Protected, Polarity Protected

Overview

Fans are a necessary component when you need to keep electronics cool or to keep the air flow moving. The Ball bearing system of the tube axial fan is designed to operate up to 22750 rpm.

Product Identification

Product Type:DC Fan

Compliance

RoHS Status:ROHS Compliant
Compliance:Compliance Docs
Agency Approvals: CE, CUL, TUV, UKCA, UL

Dimensions & Appearance

Depth:28 mm
Height:40 mm
Width:40 mm

Features

Bearing:Ball
Motor Drive Type:Brushless DC, Auto Restart, Impedance Protected, Polarity Protected
Voltage Rating:12 VDC
Noise (dBA):64.2
Air Flow (CFM):31.5
Maximum Pressure:3 in.
Termination:12" Wires
Speed:22750 rpm
Power Rating:16.8 W
Current Rating:1400 mA
,
