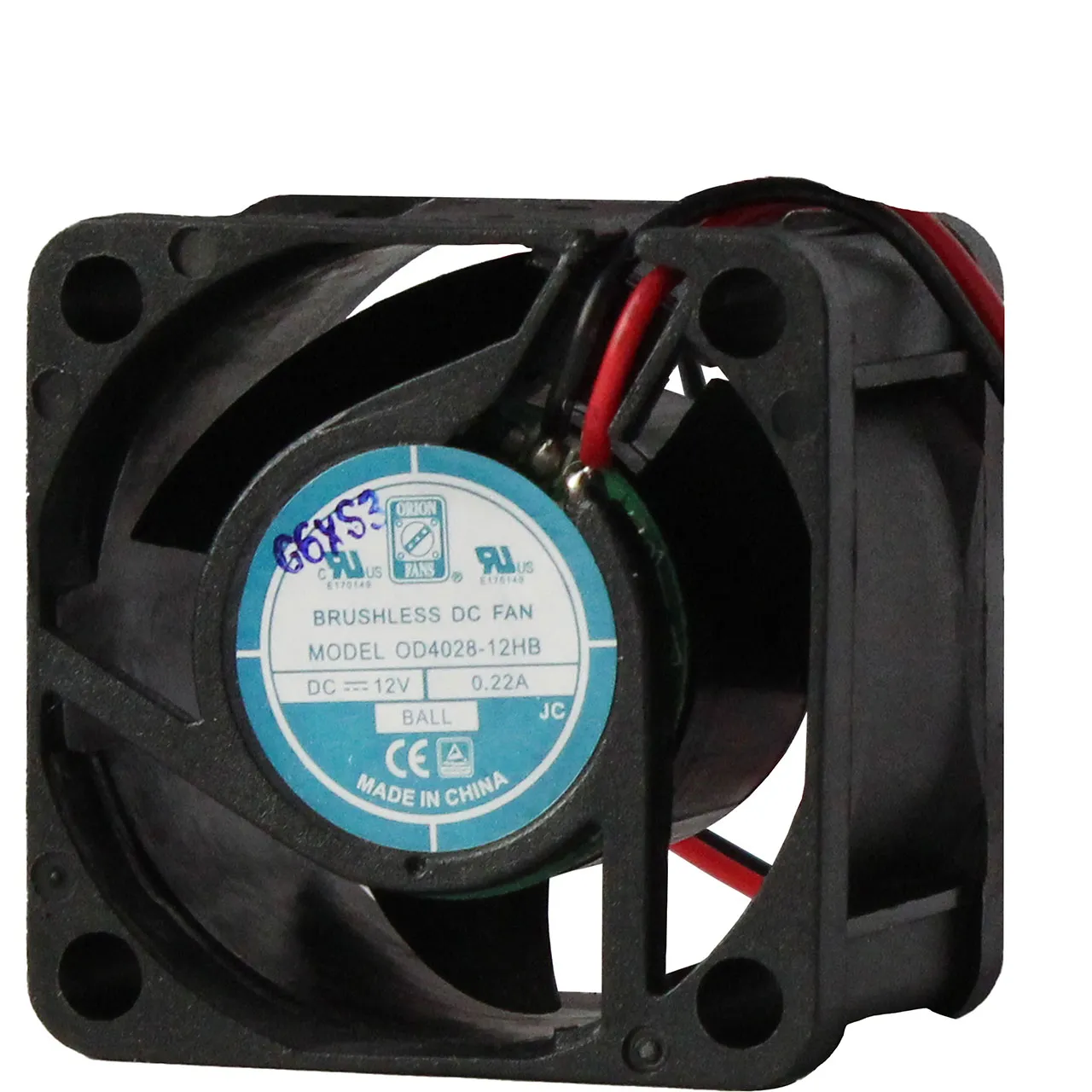

40 mm x 40 mm x 28 mm Tube Axial Fan 12 VDC Ball Bearing 22CFM 61dBA 12" Wires

Features

  • Voltage Rating: 12 VDC
  • Height: 40 mm
  • Width: 40 mm
  • Depth: 28 mm
  • Air Flow (CFM): 22
  • Bearing: Ball
  • Current Rating: 850 mA
  • Power Rating: 10.2 W
  • Agency Approvals: UL, CUL, TUV, CE, UKCA
  • Noise (dBA): 61
  • Termination: 12" Wires
  • Product Type: 40mm x 40mm DC Fan
  • Speed: 20000 rpm
  • Maximum Pressure: 2.63 in.
  • Additional Features: Open Collector Tach Output
  • Motor Drive Type: Brushless DC, Auto Restart, Impedance Protected, Polarity Protected

Overview

Fans are a necessary component when you need to keep electronics cool or to keep the air flow moving. The Ball bearing system of the tube axial fan is designed to operate up to 20000 rpm.

,
