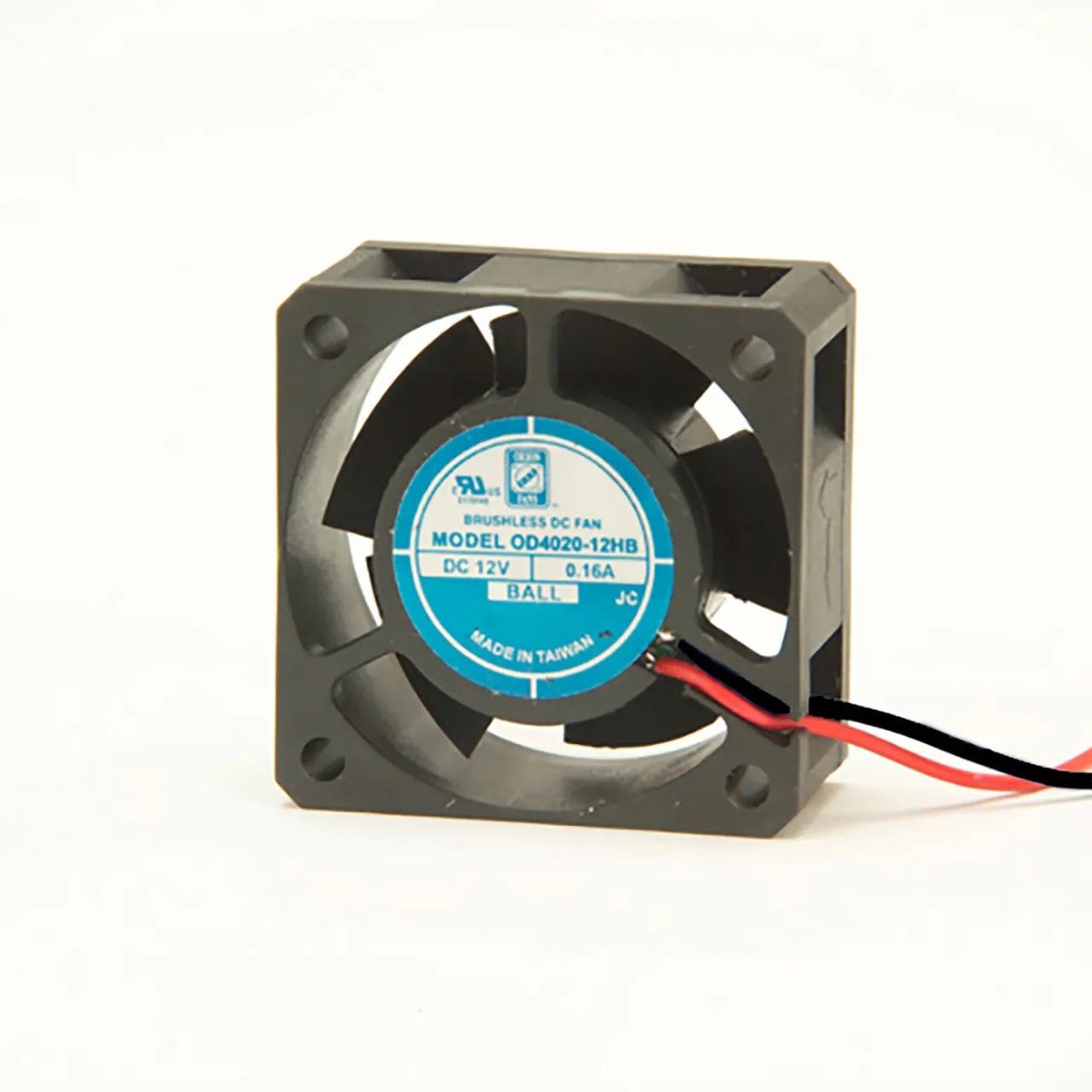

40 mm x 40 mm x 20 mm Tube Axial Fan 12 VDC Ball Bearing 7.5CFM 30.3dBA 12" Wires (3)
Features
- Voltage Rating: 12 VDC
- Height: 40 mm
- Width: 40 mm
- Depth: 20 mm
- Air Flow (CFM): 7.5
- Bearing: Ball
- Current Rating: 80 mA
- Power Rating: 0.96 W
- Agency Approvals: UL, CUL, TUV, CE, UKCA
- Noise (dBA): 30.3
- Termination: 12" Wires (3)
- Product Type: 40mm x 40mm DC Fan
- Speed: 6475 rpm
- Maximum Pressure: 0.17 in.
- Additional Features: Open Collector Tach Output
- Motor Drive Type: Brushless DC, Auto Cutoff, Auto Restart, Electronically Protected, Polarity Protected
Overview
Fans are a necessary component when you need to keep electronics cool or to keep the air flow moving. The Ball bearing system of the tube axial fan is designed to operate up to 6475 rpm.
Product Identification
Additional Feature:Open Collector Tach Output
Product Type:DC Fan
Compliance
Dimensions & Appearance
Depth:20 mm
Height:40 mm
Width:40 mm
Features
Bearing:Ball
Maximum Pressure:0.17 in.
Motor Drive Type:Brushless DC, Auto Cutoff, Auto Restart, Electronically Protected, Polarity Protected
Power Rating:0.96 W
Voltage Rating:12 VDC
Noise (dBA):30.3
Air Flow (CFM):7.5
Speed:6475 rpm
Termination:12" Wires (3)
Current Rating:80 mA
