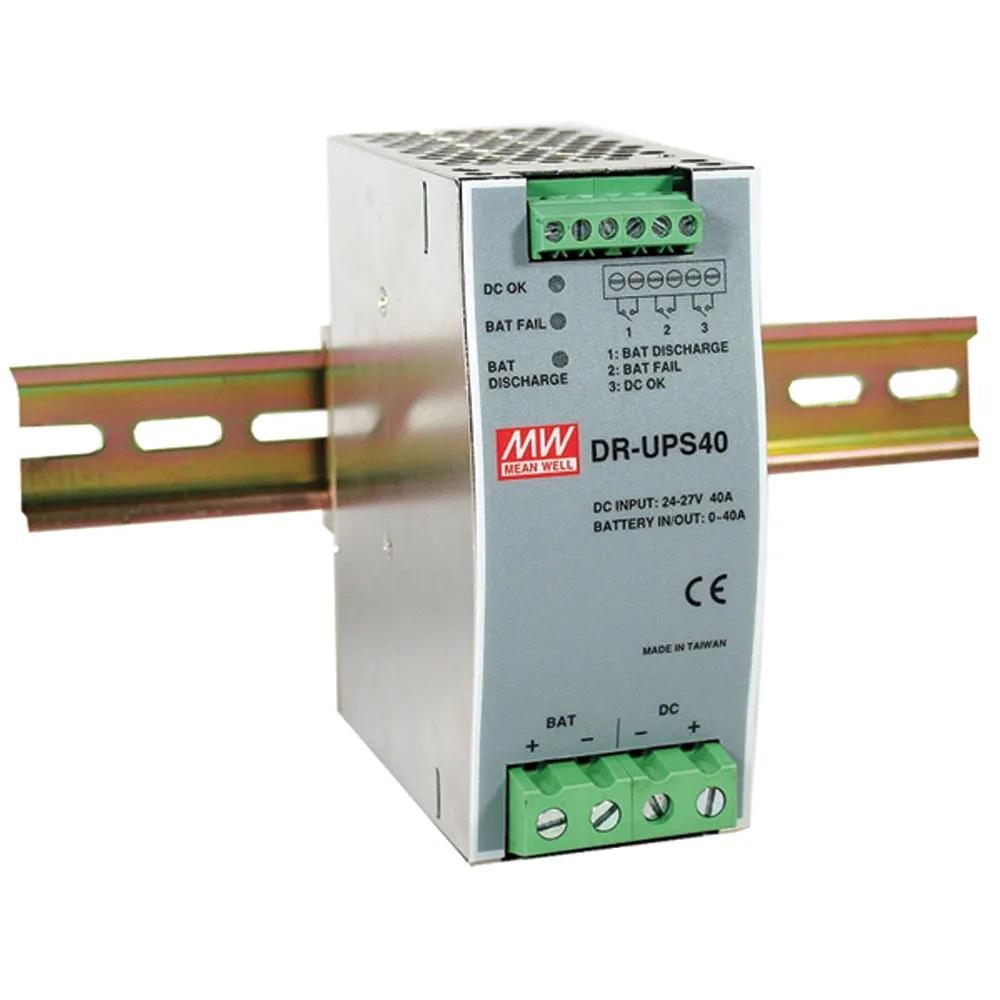

40 Amp DC Uninterruptable Power Supply for DIN Rail Mount

Battery controller for DIN Rail UPS system

Specifications

  • Size (L x W x H) (inches): 4.9 x 2.2 x 4.9
  • DC Input: 24-29V @ 40A
  • Battery Input: 21-29V @ 0-40A, Charge current: 2A
  • External Battery (typical): 4 / 7 / 12AH / 24V
  • Suitable for 24V system up to 40A
  • Parallel connection to DC BUS
  • Built-in battery test function
  • Battery polarity protection
  • 3-year warranty
  • Certifications: CE

Product Identification

Product Type:UPS
Manufacturer Series:DR-UPS

Compliance

Agency Approvals:CE

Dimensions & Appearance

Color:Gray
Width:2.18 in.
Height:4.92 in.
Length:3.93 in.
Mounting:DIN Rail

Operating conditions

Minimum Operating Temperature:-20°C
Maximum Operating Temperature:70°C

Input

Input Voltage:24 VDC
Input Voltage Range:24 VDC to 29 VDC
Maximum Input Current:40 A

Output

Number of Outputs:1
Output Voltage (Channel 1):24 VDC
Output Connector Type:Screw Terminal Block
Output Voltage:24 VDC
Output Current (Channel 1):40 A
Output Current:40 A

Features

Minimum Isolation Voltage:500VDC, 500VAC
Switching Regulator:None
Pins:10
Power Rating:960 W
,
