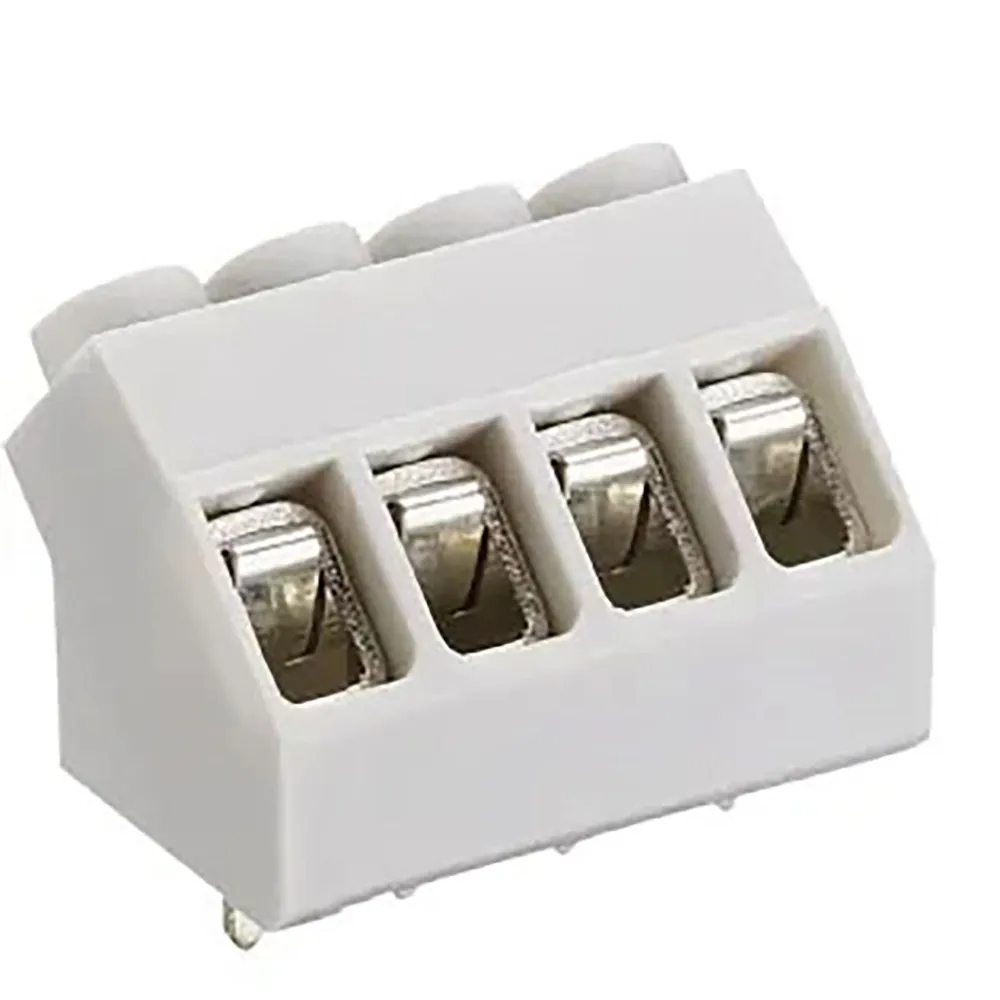

4 Position Terminal Block PCB Screw 5mm 45Deg 15A 250V M2.6 KRESW Series

Features

  • Agency Approvals: UL, CUL, CSA, VDE
  • Body Material: PA 6.6 ; V2
  • Clamp Material: CuZn, Pre-Nickeled and Tinned
  • Current Rating: 15 A
  • Dimensions: 0.79 in L
  • Mounting Type: PCB Mount
  • Number of Poles: 4
  • Number of Positions: 4
  • Operating Temperature: -25 to 100 °F
  • Pin Spacing: 5 mm, 0.197 in.
  • Primary Type: PCB Mount
  • Screw Size: 2.5 mm²
  • Series: KRESW Series
  • Termination: Screw
  • Tightening Torque: 0.4 Nm
  • Voltage Rating: 250 VAC
  • Wire Entry: 45 deg.
  • Wire Termination Type: Screw

,
