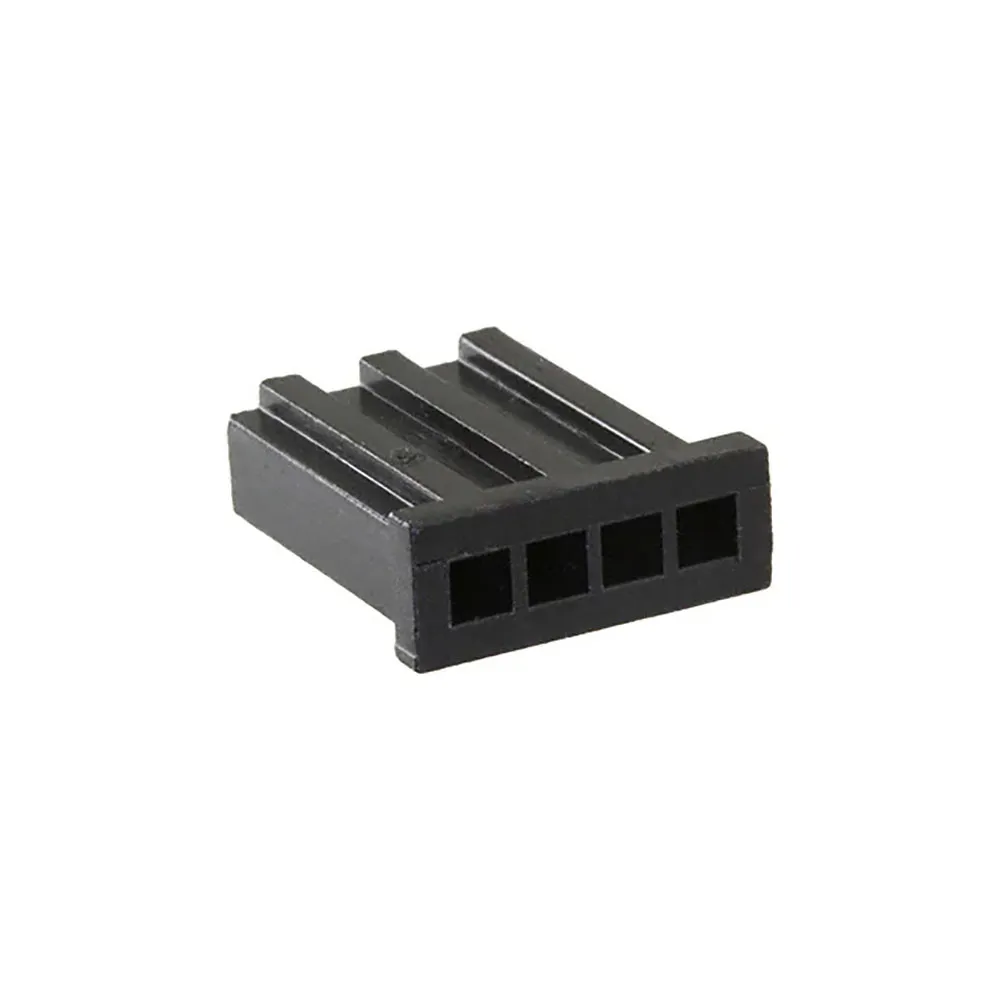

4 Position Receptacle Housing 2.54mm Cable Mount

Specifications

  • Series: AMPMODU MOD II
  • Number of Positions: 4 Position
  • Pitch: 2.54 mm
  • Number of Rows: 1 Row
  • Row Spacing: 2.54 mm
  • Mounting Style: Cable Mount / Free Hanging
  • Termination Style: n/a
  • Mounting Angle: Straight
  • Latching Type: Detent Latching
  • Contact Gender: n/a
  • Contact Plating: n/a
  • Mating Post Length: n/a
  • Termination Post Length: n/a
  • Wire Gauge: 28 AWG to 26 AWG
  • Housing Material: Thermoplastic (TP)
  • Contact Material: Beryllium Copper
  • Housing Color: Black

Product Identification

Additional Feature:Contacts Not Included
Product Type:Receptacle
Manufacturer Series:AMPMODU Mod II

Dimensions & Appearance

Body Orientation:Straight
Mounting:Free Hanging
Style:Housing

Features

Number of Rows:1
Number of Contacts:4
Termination Method:Crimp
Fastening Method:N/A
Gender:Female Socket
Pitch:2.54 mm, 0.100 in.
,
