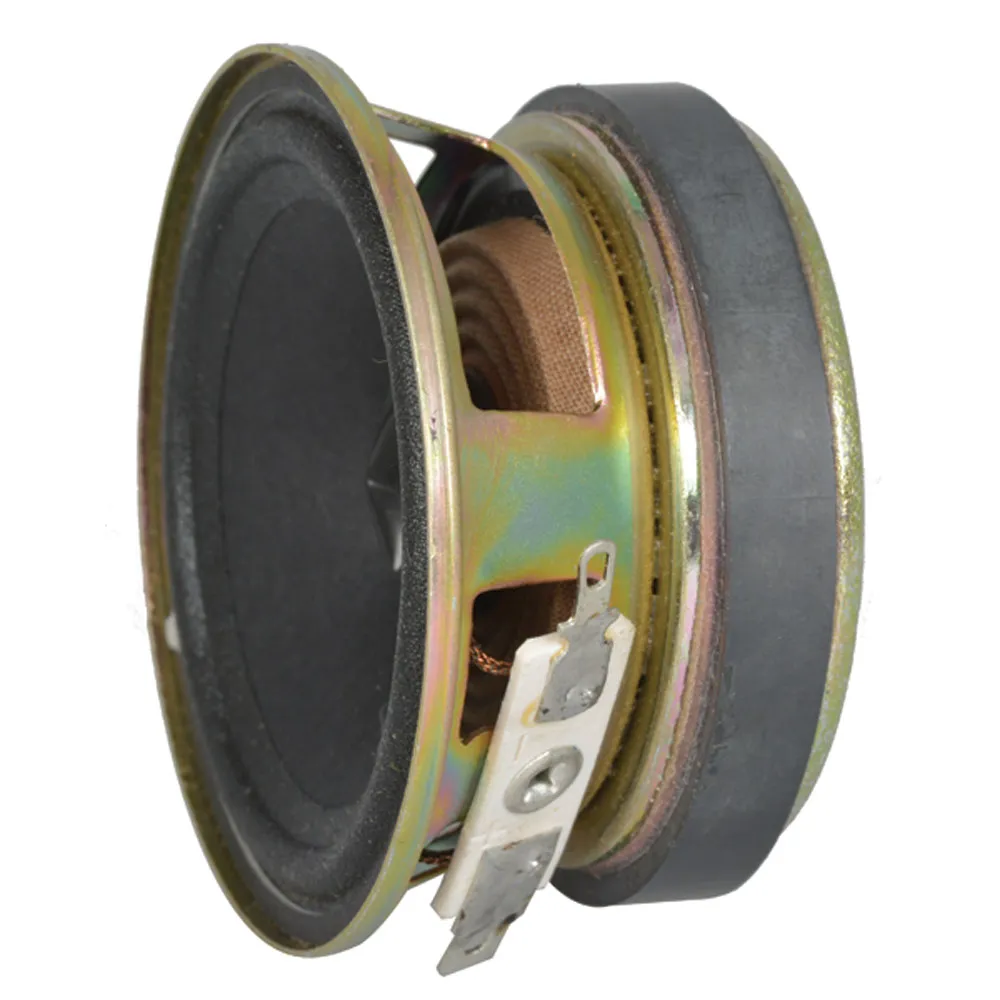

4 Ohm 85dB Round Ferrite Speaker

  • 2.4" dia. X 1.4" D
  • Nominal input: 10 watts
  • Max. input: 10 watts
  • Impedance: 4 Ω
  • Output SPL: 85 dB
  • Frequency range: 1000 - 12,000 Hz
  • Magnet size: 2.2" dia. X 0.5" H

    • Dimensions & Appearance

    Diameter:2.4 in.
    Depth:1.4 in.
    Width:N/A
    Length:N/A

    Input

    Nominal Input Power (W):10
    Input Power (max) (W):10

    Output

    Output:85 dB

    Features

    Impedance:4 Ohm
    Termination Method:Solderable Lug
    Magnet Size (Diameter x H) (inches):2.20 x 0.50
    Frequency Range:1000 Hz to 12000 Hz
    ,
