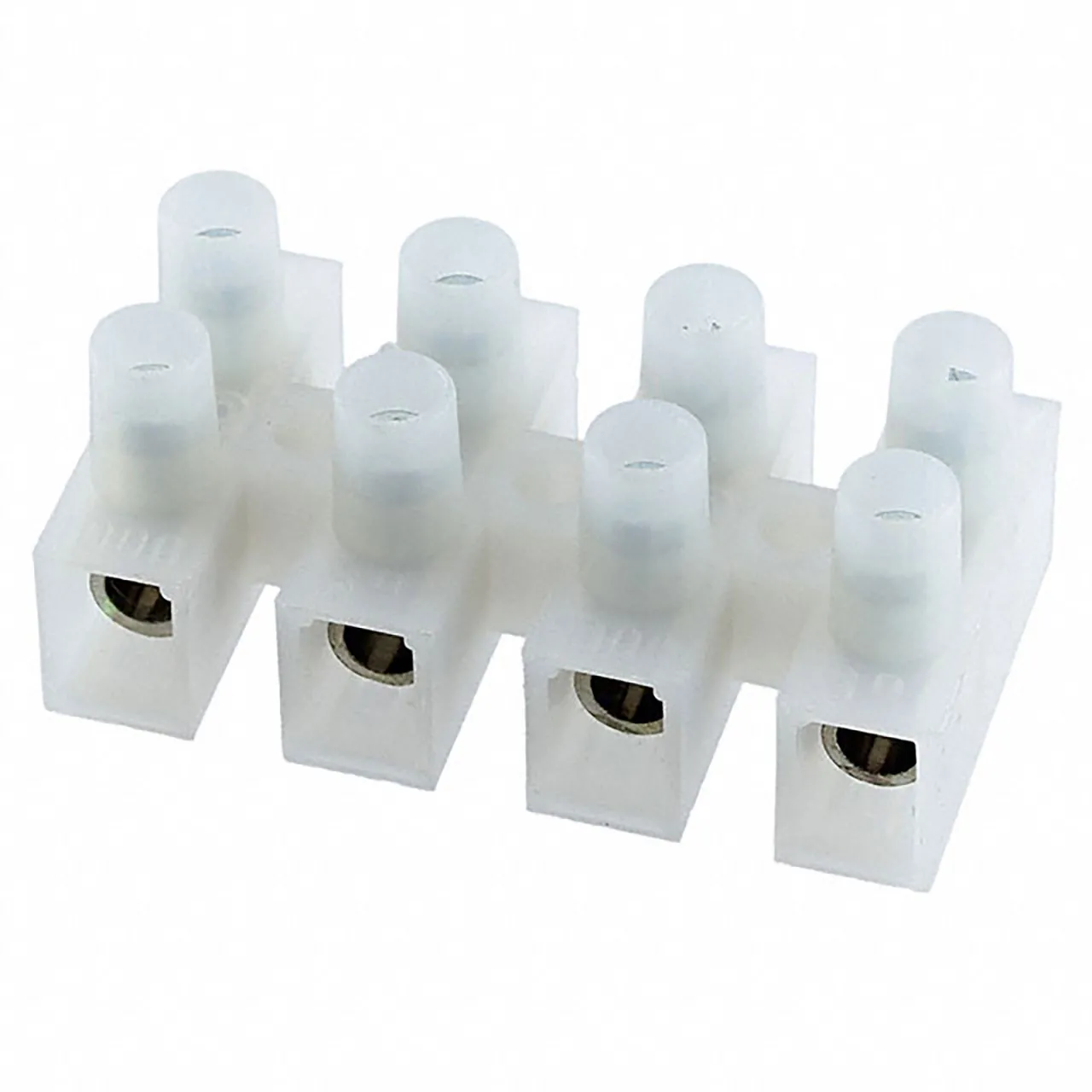

4 Circuit 0.472" (12mm) Eurostyle Terminal Strip Connector Screws

Features

  • Series: TSB1000, Buchanan
  • Terminal Block Type: Eurostyle Terminal Strip
  • Number of Circuits: 4
  • Number of Wire Entries: 8
  • Pitch: 0.472" (12 mm)
  • Number of Rows: 2
  • Current Rating: 50 A
  • Voltage Rating: 250 V
  • Wire Gauge: 8 - 22 AWG
  • Top Termination: Screws
  • Bottom Termination: Closed
  • Barrier Type: Enclosed
  • Color: Natural
  • Terminal Screw Material: Steel
  • Terminal Screw Finish: Zinc, Non-Hexavalent Chromate
  • Mounting Type: Chassis, Panel
  • Operating Temperature: 100°C
  • Material - Insulation: Polyamide (PA66), Nylon 6/6
  • Material Flammability Rating: UL94 V-2

Product Identification

Product Type:Eurostyle Terminal Strip
Manufacturer Series:TSB1000, Buchanan

Dimensions & Appearance

Mounting:Chassis, Panel Mount
Body Orientation:Enclosed

Features

Bottom Termination:Closed
Number of Rows:2
Number of Positions:4
Housing Material:Polyamide 66/6 V2
Housing Color:Natural
Top Termination:Screw
Wire Gauge (AWG):8-22
Contact Material:Steel
Pitch:0.472 in., 12 mm
Contact Plating:Zinc
Voltage Rating:250 V
Current Rating:50 A
,
