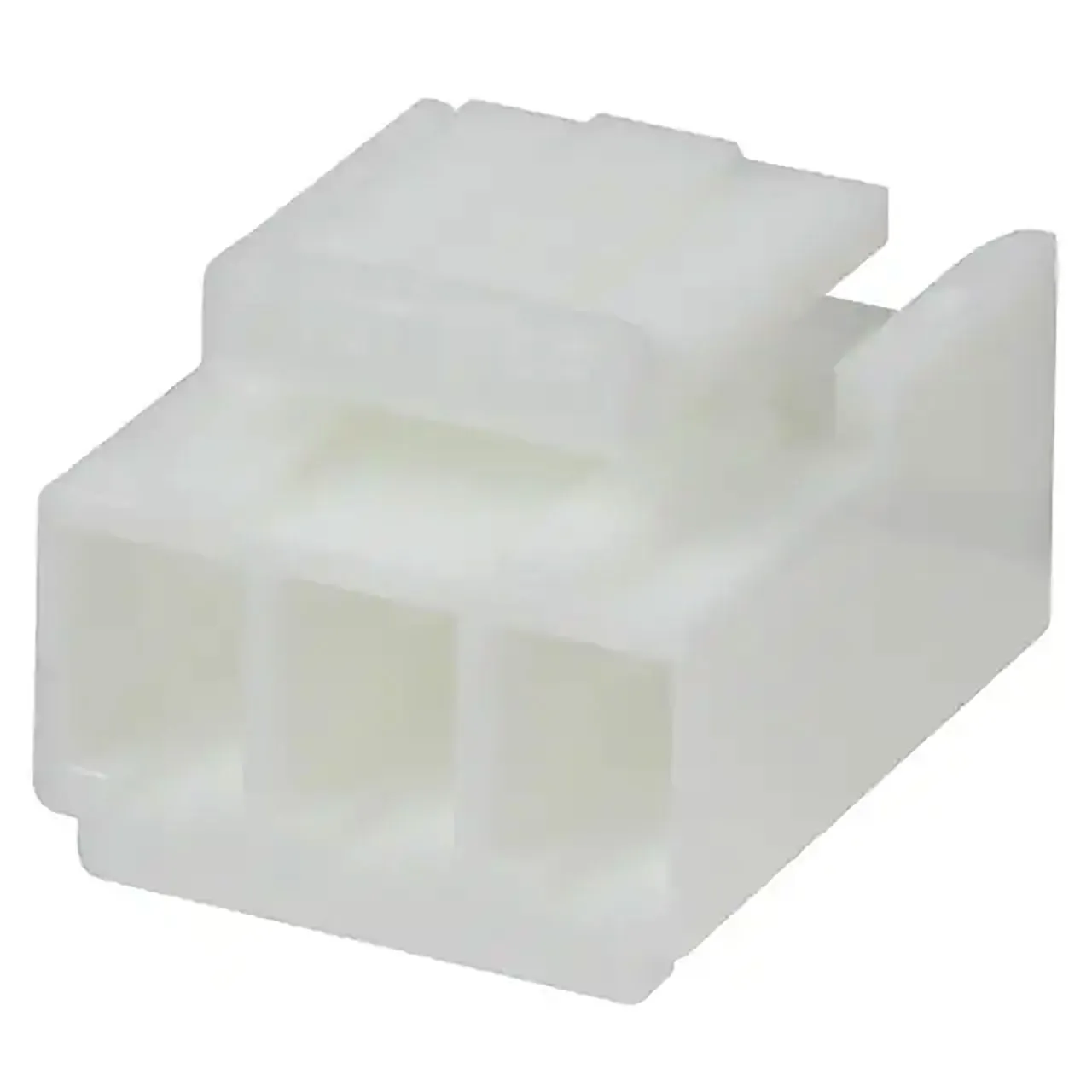

3-Position VH-Type Plug Housing Female Sockets Free-Hanging 0.156" (3.96mm)

Features

  • Series: VH equivalent
  • Connector Type: Plug housing (receptacle)
  • Contact Type: Female Socket
  • Pitch - Mating: 0.156" (3.96 mm)
  • Number of Positions: 3
  • Number of Rows: 1
  • Number of Positions Loaded: None
  • Style: Board to Cable/Wire
  • Mounting Type: Free Hanging (In-Line)
  • Termination: Crimp
  • Fastening Type: Latch Lock
  • Operating Temperature: -25°C to 85°C
  • Insulation Color: Natural
  • Note: Contacts are not included, see PN: 2331735 for contacts

,
