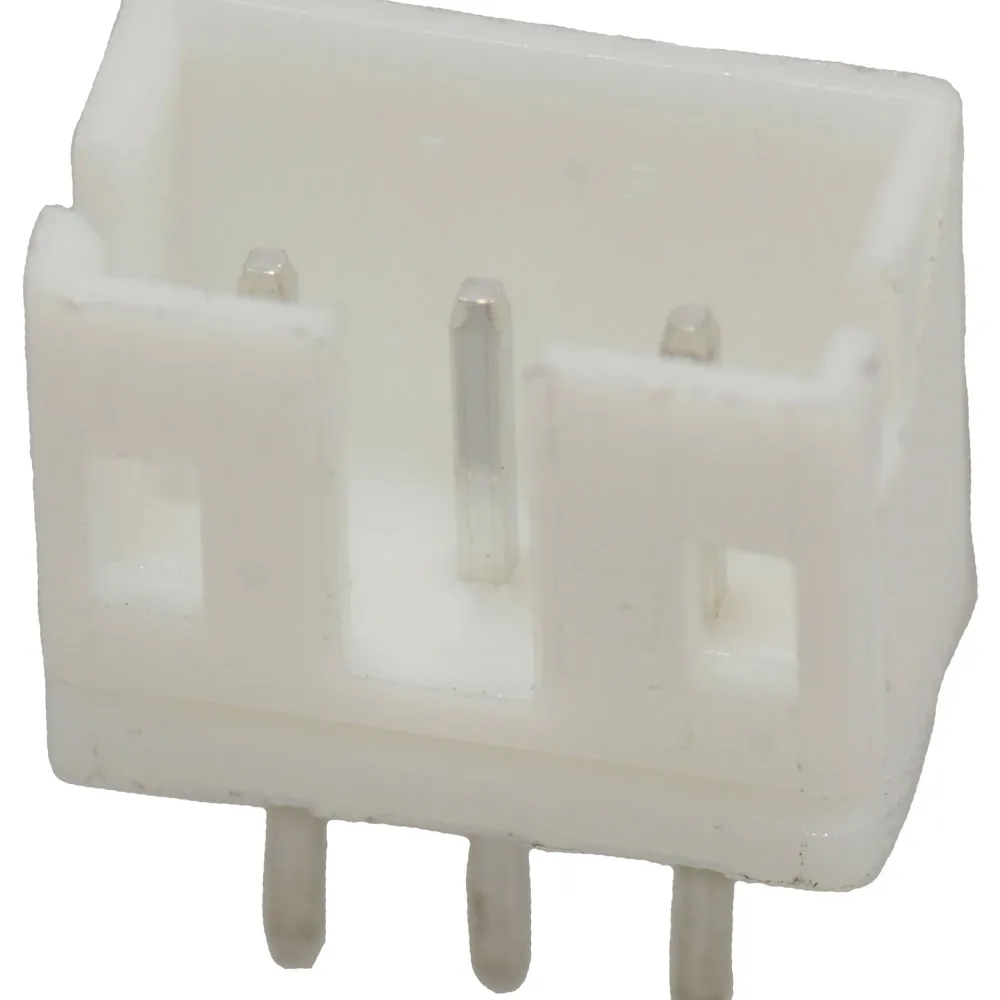

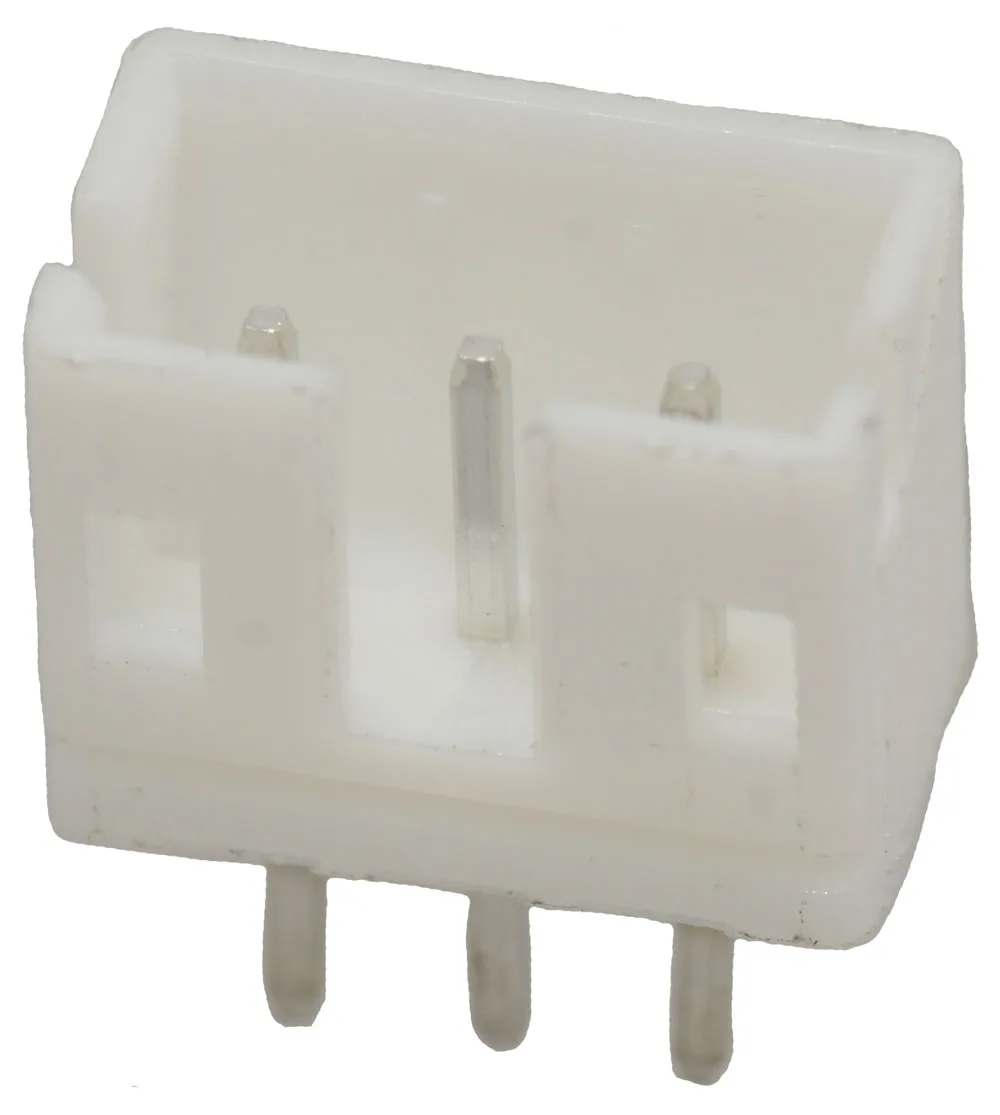

3-Position Shrouded Pin Header Vertical Through Hole 0.079" (2mm)

Features

  • Connector Type: Header
  • Contact Type: Male Pin
  • Pitch - Mating: 0.079" (2 mm)
  • Number of Positions: 3
  • Number of Rows: 1
  • Number of Positions Loaded: All
  • Style: Board to Cable/Wire
  • Shrouding: Shrouded - 4 Wall
  • Mounting Type: Through Hole
  • Termination: Solder
  • Fastening Type: Polarizing Ramp
  • Contact Shape: Square
  • Contact Finish - Mating: Tin
  • Contact Finish - Post: Tin
  • Contact Material: n/a
  • Insulation Material: Polybutylene Terephthalate (PBT)
  • Material Flammability Rating: n/a
  • Insulation Color: Natural
  • Applications: General Purpose, Industrial, Medical

Product Identification

Product Type:Shrouded Header
Manufacturer Series:ValuePro
Family:A2001

Dimensions & Appearance

Mounting:Through Hole
Body Orientation:Vertical
Body/Shell Style:Receptacle

Features

DIN Conformance:N/A
IEC Conformance:N/A
MIL Conformance:N/A
Number of Rows:1
Filter Feature:No
Mixed Contacts:NO
Number of Rows Loaded:1
Pitch:0.079 in., 2 mm
Number of Contacts:3
Fastening Method:Polarized Tab
Gender:Male
Termination:Solder
,
