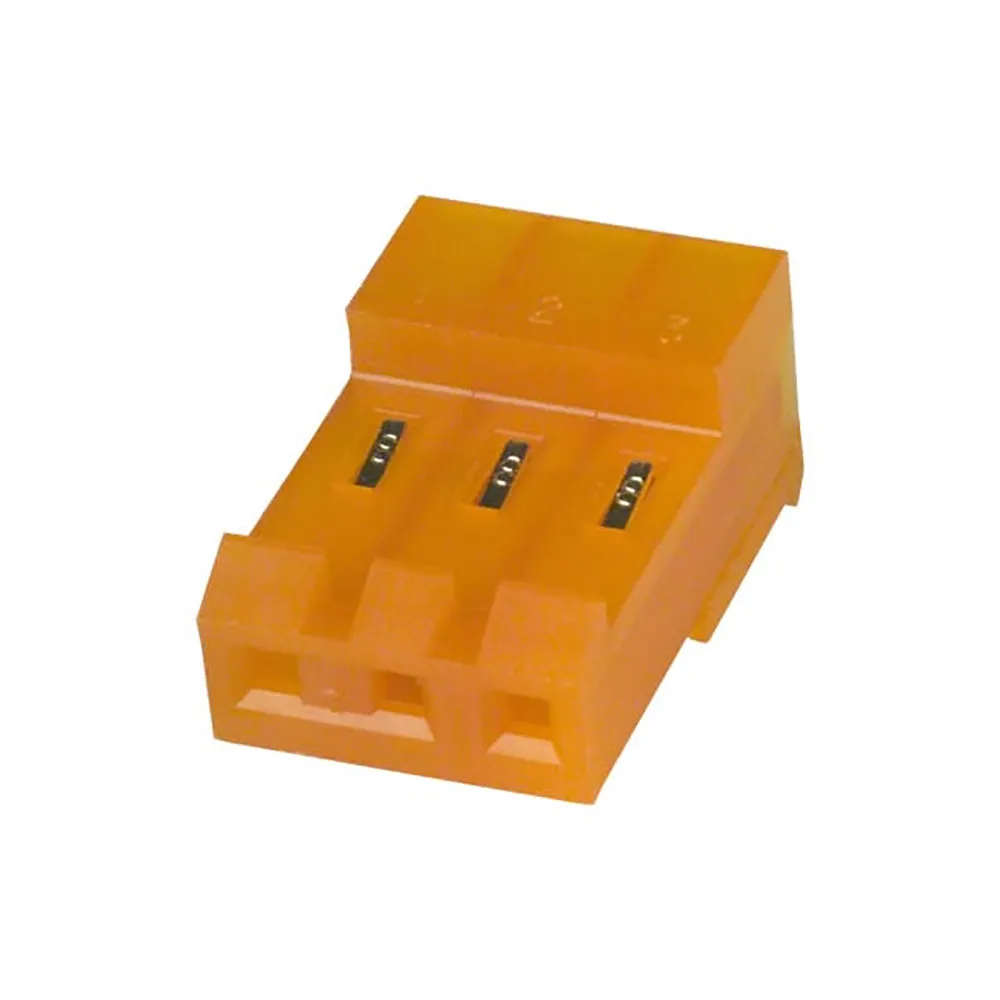

3-Position Rectangular IDC Receptacle Connector Female Socket Orange 18AWG 0.156" (3.96mm)

Specifications

  • Series: MTA-156
  • Connector Type: Receptacle
  • Contact Type: Female Socket
  • Number of Positions: 3
  • Pitch: 0.156" (3.96 mm)
  • Number of Rows: 1
  • Mounting Type: Free Hanging (In-Line)
  • Fastening Type: Locking Ramp
  • Cable Termination: IDC
  • Wire Type: Discrete
  • Wire Gauge: 18 AWG
  • Features: Closed End
  • Contact Finish: Tin
  • Contact Finish Thickness: 80 µin (2.03 µm)
  • Color: Orange
  • Base Number: 640426

Product Identification

Additional Feature:Closed End
Product Type:Housing
Manufacturer Series:MTA-156

Dimensions & Appearance

Mounting:Free Hanging (In-Line)
Body Orientation:Right Angle
Body/Shell Style:Receptacle

Features

Number of Rows:1
Number of Contacts:3
UL Flammability Code:94V-2
Pitch:0.156 in., 3.96 mm
Maximum Contact Resistance:N/A
Fastening Method:Locking Ramp
Housing Color:Orange
Contact Material:Copper Alloy
Housing Material:Nylon
Gender:Female Socket
Contact Plating:Tin
Termination:IDC
Voltage Rating:600 VAC
Current Rating:7 A
,
