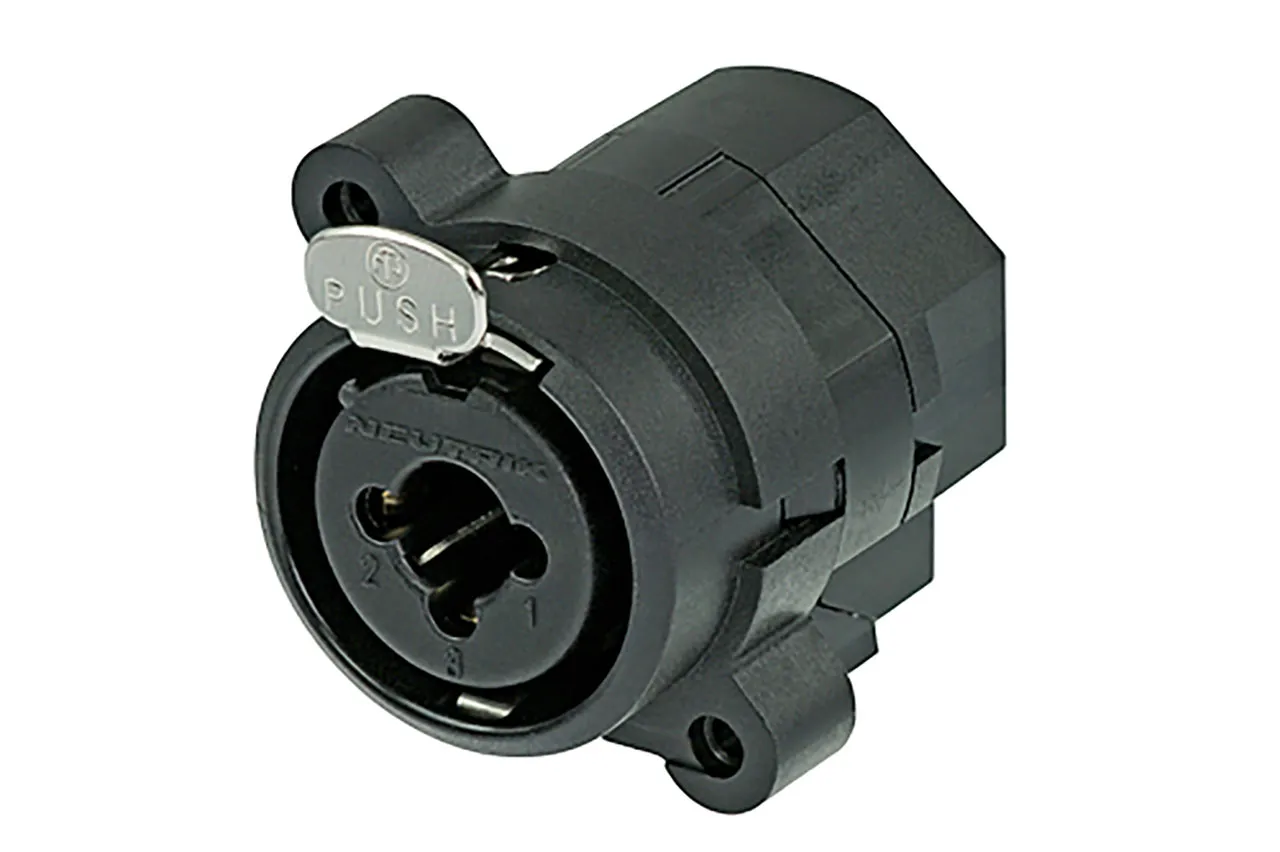

3-Pin Female XLR 1/4 Inch Stereo Horizontal PCB Mount

Features

  • Combined XLR receptacle and 1/4" phone jack
  • Balanced or line inputs in one XLR shell
  • Saves rack space by combining 2 connectors in one housing
  • Very low conductor capacitance, therefore suitable for digital audio
  • Connection Type: Combo
  • Gender: Female
  • Comment: < 20
  • Dielectric strength: 1,5 kVdc
  • Insulation resistance: > 10 G Ohm

Overview

The XLR / jack hybrid chassis connector combines 3 pole XLR receptacle and 1/4" jack.

Product Identification

Product Type:Combo XLR, Stereo

Dimensions & Appearance

Body Color:Black
Body Material:Nylon
Body Orientation:Right Angle
Mounting Type:Panel Mount, Rear
Body Shell Style:JACK

Features

Contact Gender:Female
Number of Contacts:6
Contact Material:Bronze
Contact Plating:Gold Over Nickel
Termination:Solder Pin
Current Rating:7.5A/50V AC
,
