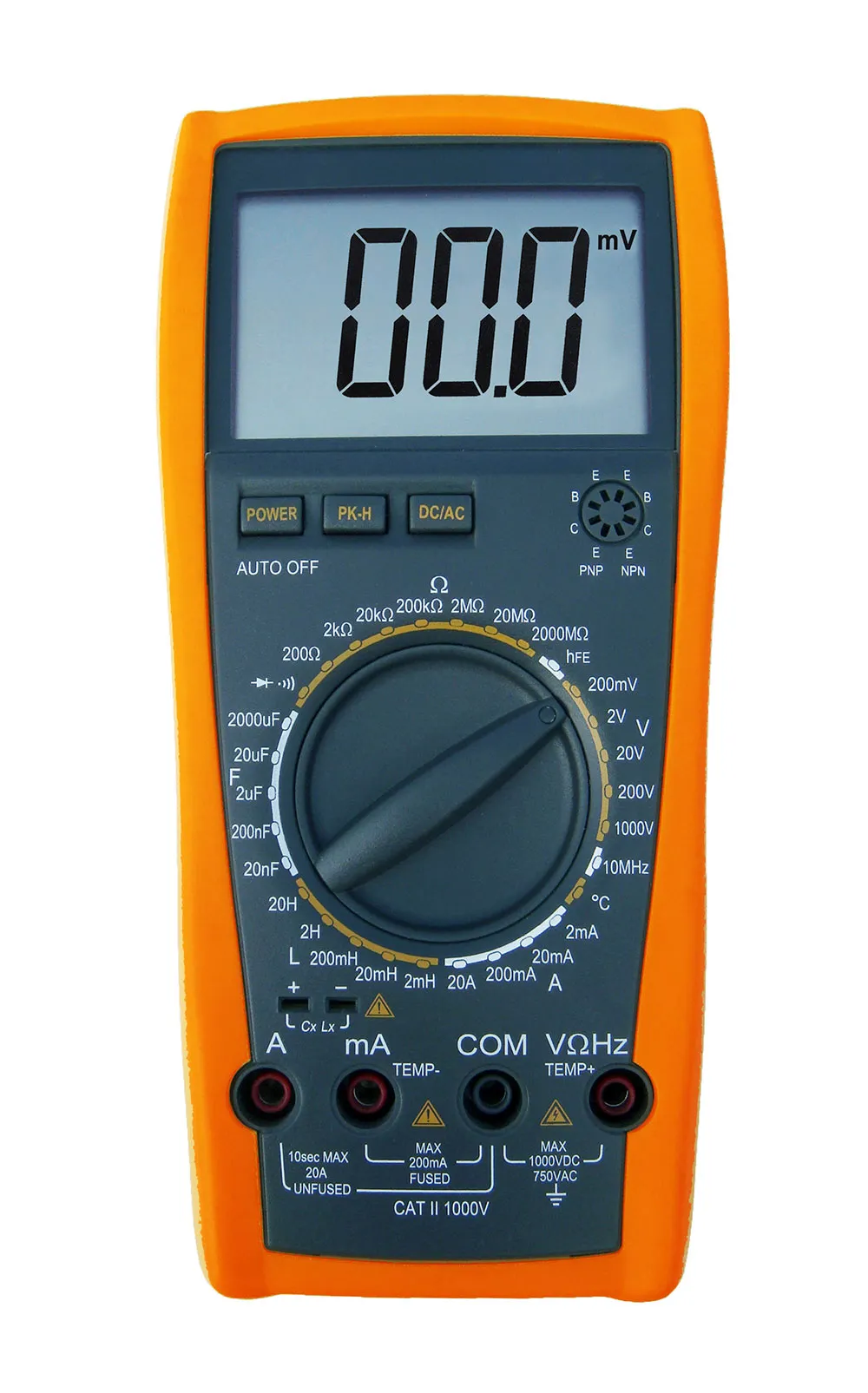

3½-Digit Handheld Digital Multimeter Manual Range

Features

• 3½-digit manual range digital multimeter
• Large LCD for unit and function symbols make for clear and easy reading
• Strong anti-magnetic and anti-jamming performance
• Auto power-off in 30 minutes
• Full protection function, anti-high voltage circuit design (voltage dependent resistor 1300V)
• Capacitance test range up to 2000µF
• Self-discharge when capacitance measuring
• Peak value hold
• Frequency auto ranging up to 10MHz

Specifications

• DCV (±0.5%+3): 200mV, 2V, 20V, 200V, 1000V
• ACV (±0.8%+5): 200mV, 2V, 20V, 200V, 750V
• DCA (±0.8%+3): 2µA, 20mA, 200mA, 20A
• ACA (±1.0%+5): 2µA, 20mA, 200mA, 20A
• Resistance (±0.8%+3): 200Ω, 2kΩ, 20kΩ, 200kΩ, 2MΩ, 20MΩ, 2000MΩ
• Inductance (±3.0%+10): 2mH, 20mH, 200mH, 2H, 20H
• Capacitance (±3.0%+10): 20nF, 200nF, 2µF, 20µF, 2000µF
• Frequency (±0.5%+4): 2kHz, 20kHz, 200kHz, 2000kHz, 10MHz
• Temperature (±0.8%+4): -40°C to 1000°C

• Diode test
• hFE test
• Continuity alarm (<30Ω±10Ω)
• Low battery (approx. <7.5V)
• Data hold (peak value)
• Auto power off (approx. 30 minutes)
• Function protection
• Anti-shock protection
• Input impedance: 10MΩ
• Sampling rate: 3 times/s
• AC frequency: 40 to 400 Hz
• Range: Manual range (Frequency: auto range)
• Max. display: 1999
• LCD size: 65x41 mm (2.56"x1.61")
• Battery: 9V 6F22
• Power: Quiescent current approx. 6mA
• Accessories: Test lead, battery, usero manual, temperature probe
• Meter size: 185x93x35mm (7.25" x 3.66" x 1.38")
• Weight: 290g
