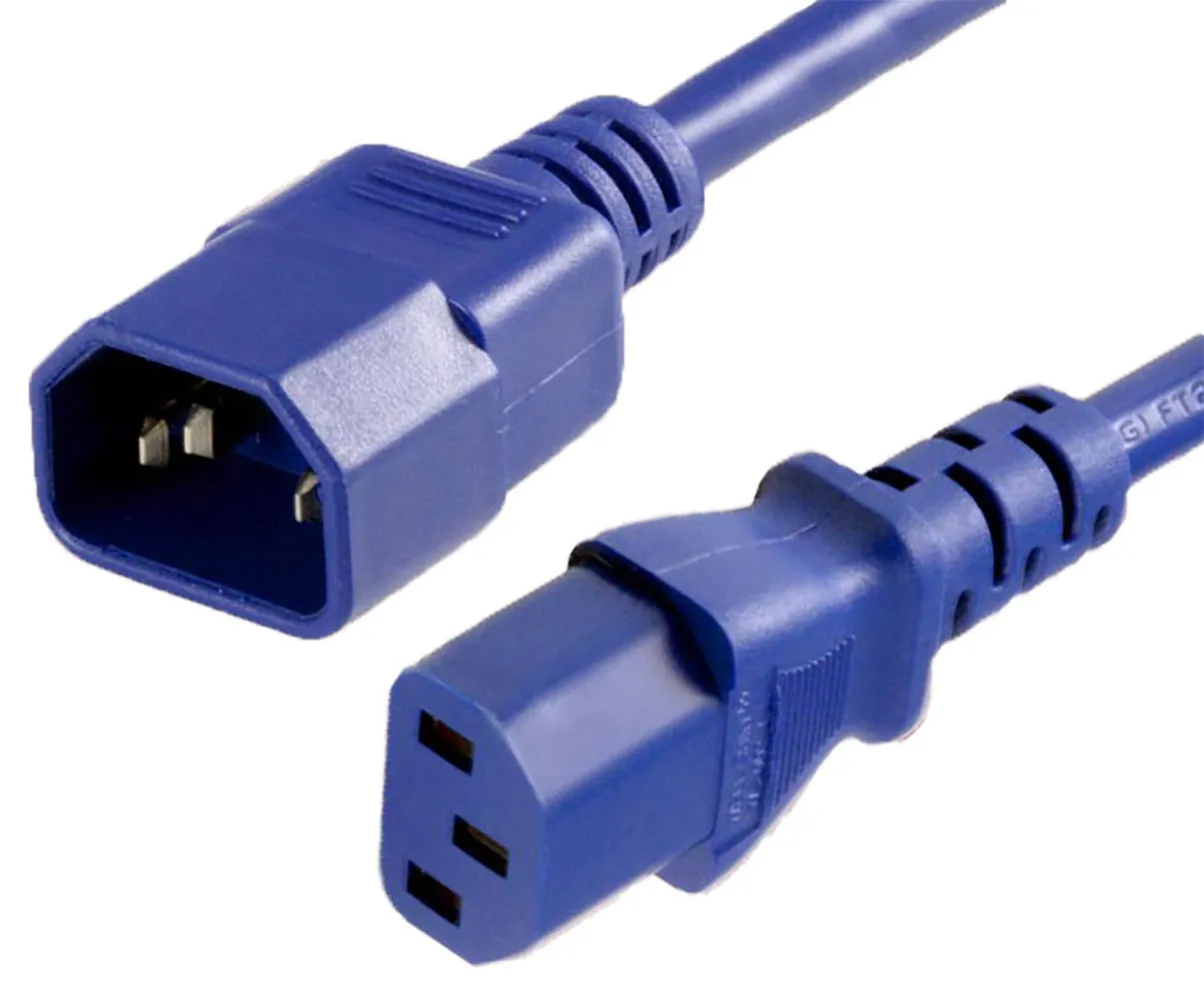

3-Conductor AC Power Cord 17 AWG + 1.00mm² IEC 60320 C14 (Type E) to IEC 60320 C13 SJTW + H05VV-F Jacket 3.25 Feet Blue

Specifications

  • Type: AC Power Cord
  • 1st Connector: IEC 60320 C14 (Type E)
  • 2nd Connector: IEC 60320 C13
  • Cord Type: SJTW + H05VV-F
  • Wire Gauge (AWG): 17 AWG
  • International Wire Size: 1.00 mm2
  • Number of Conductors: 3
  • Color Codes: International
  • Shielding: Unshielded
  • Length (feet): 3.25
  • Certifications: UL, CUL (CSA)
  • Jacket Color: Blue
  • Voltage Rating: 250V
  • Current Rating: 10A
  • Operating Temperature: -40°C to 105°C
  • Humidity: 85% (@ 32°C)

Product Identification

Product Type:AC Power Cord

Compliance

Agency Approvals: CSA, UL

Dimensions & Appearance

Length:3.25 ft.

Operating conditions

Maximum Operating Temperature:105°C
Minimum Operating Temperature:-40°C

Features

Color Codes:International
Number of Conductors:3
International Wire Size:1.00 mm²
Jacket Color:Blue
Cord Type:SJTW + H05VV-F
AWG/Conductor:17/3
Shielding:Unshielded
Wire Gauge (AWG):17
2nd Connector:IEC 60320 C13
1st Connector:IEC 60320 C14 (Type E)
Voltage Rating:250 VAC
Current Rating:10 A
,
