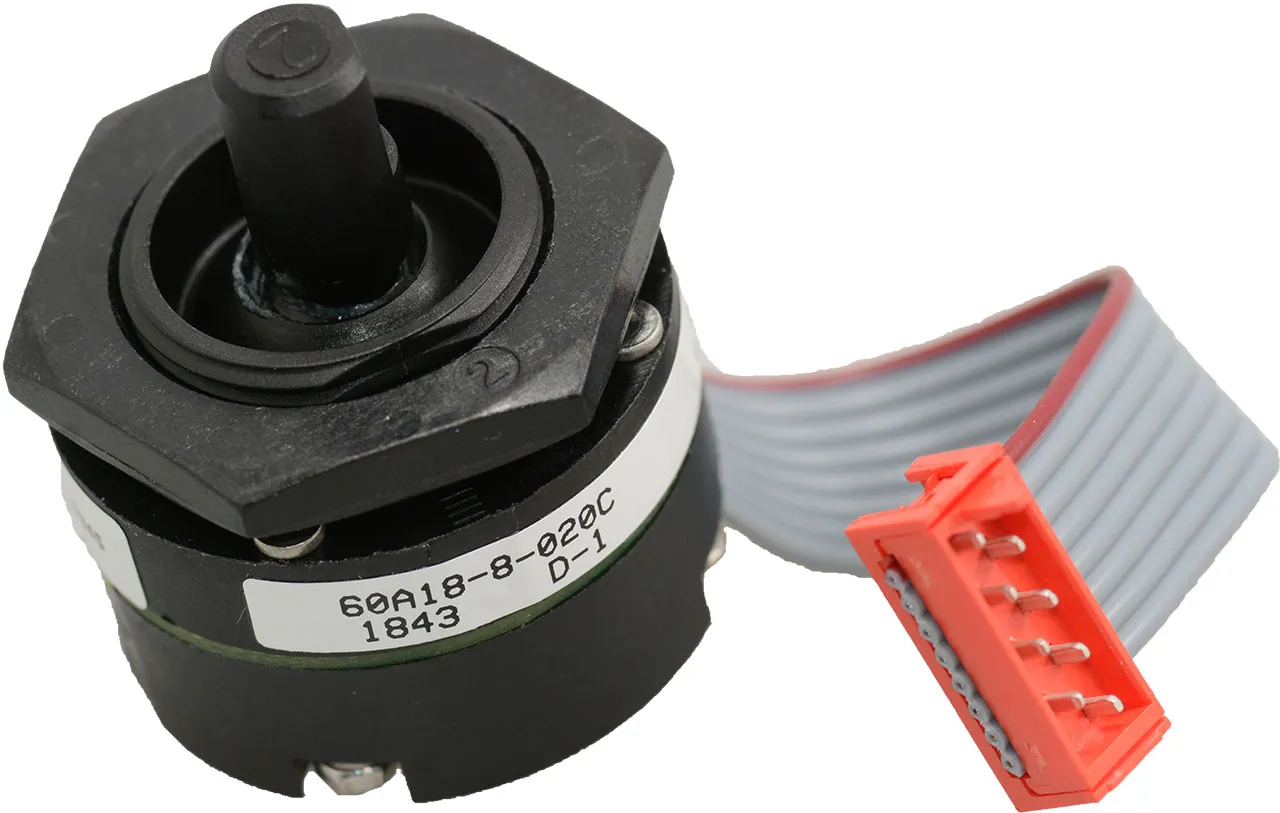

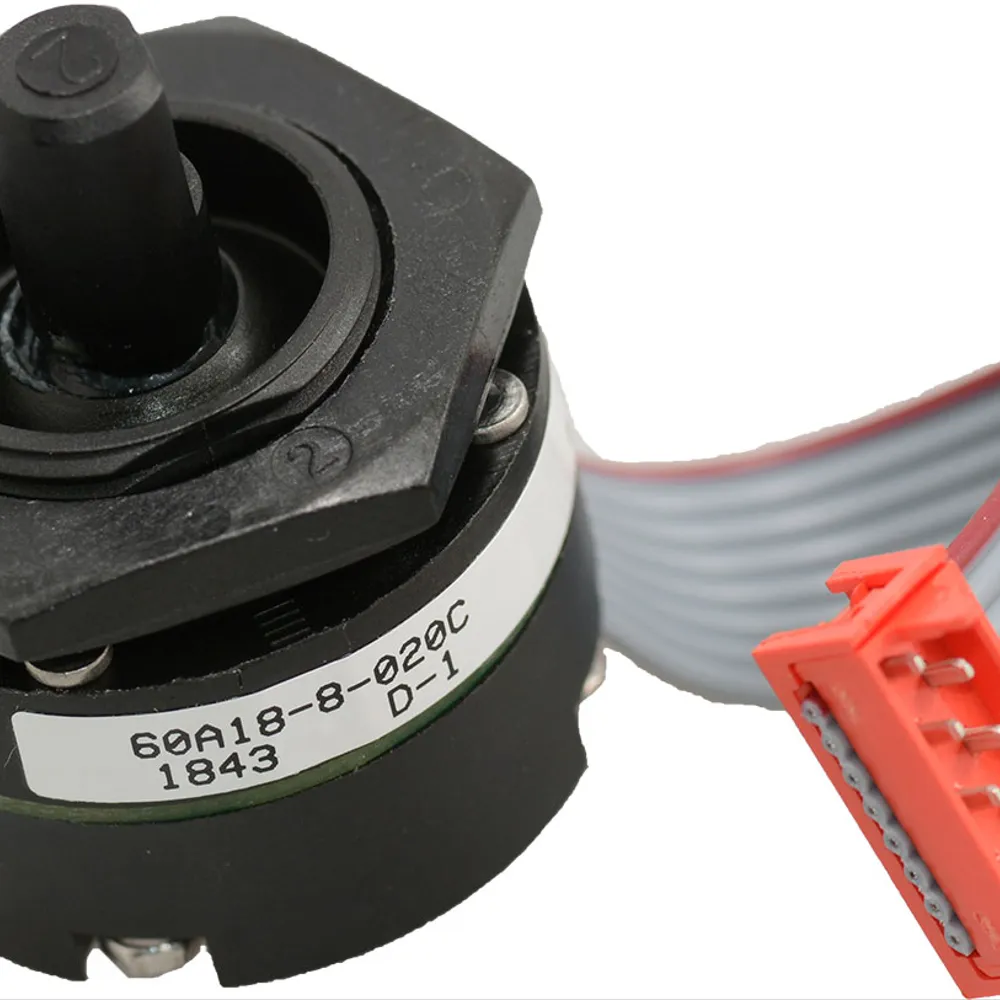

3-Axis Digital Joystick (Mechanical Switch, Pulse) Output

Features

• Type: Joystick, 3 - Axis
• Actuator Type: Flatted (6.35 mm Diameter)
• Switch Function: 360° Rotational, 8-Way Directional, Center Select
• Output: Digital (Mechanical Switch, Pulse)
• Voltage - Supply: 5 VDC
• Current Rating: 10 mA (DC)
• Voltage Rating - DC: 5 V
• Contact Material: Silver (Ag)
• Contact Finish: Phosphor Bronze
• Mounting Type: Panel Mount
• Termination Style: Cable with Connector
• Operating Temperature: -40°C to 85°C
• Panel Cutout Dimensions: Circular - 17.25 mm Dia
• Mechanical Life: 500,000 Cycles
• Electrical Life: 500,000 Cycles
• Operating Force: 400 gf
• Base Number: 0A18
