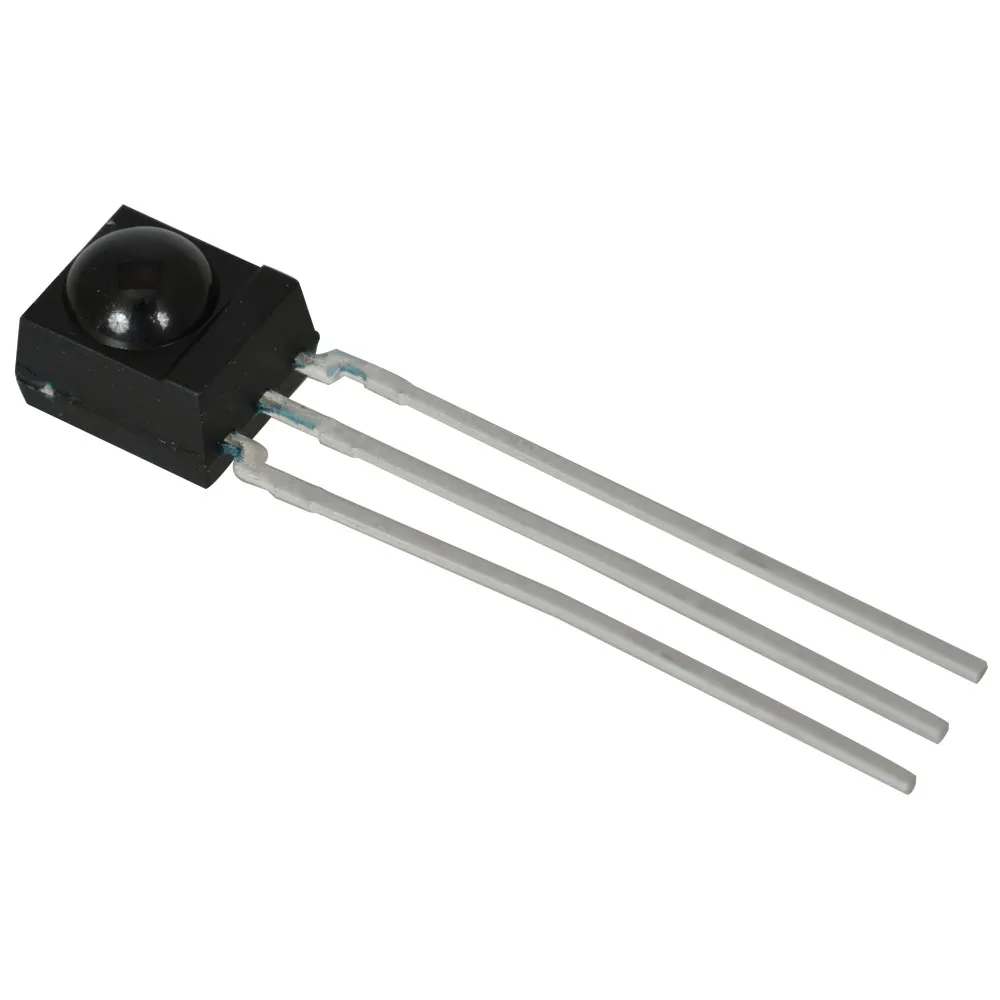

38 kHz Infrared Receiver for Long Burst Remote Controls
The TSOP48xx series is a miniaturized IR receiver modules for infrared remote control systems. A PIN diode and a preamplifier are assembled on lead frame, the epoxy package contains an IR filter.Specifications
- Improved immunity against HF and RF noise
- Improved immunity against optical noise
- Insensitive to supply voltage ripple and noise
- Receiver size: Dome
- Diameter: 0.18" (4.7mm)
- Height: 0.27"
- Lead length: 0.90"
- Lead spacing: 0.16"
- Typical forward voltage: 4.5-5.5 VDC @ 5mA
- Peak Wavelength: 950 nm
- Power: 10 mW
- Photo detector and preamplifier in one package
- Internal filter for PCM frequency
- Supply voltage: 2.5 V to 5.5 V
Product Identification
Product Type:IR Receiver
Dimensions & Appearance
Mounting:Through Hole
Operating conditions
Minimum Operating Temperature:-25°C
Maximum Operating Temperature:85°C
Packaging
Package:3-pin PCB
Features
Pins:2
Lens Type:Black
Maximum Light Current:N/A
Maximum Emitter Collector Voltage:N/A
Half Intensity Angle Degrees:N/A
Maximum Dark Current:N/A
Maximum Rise Time:N/A
Maximum Fall Time:N/A
Polarity:N/A
Power Dissipation:10 mW
Maximum Collector Emitter Voltage:N/A
Maximum Collector Current:N/A
Peak Wavelength:N/A
Maximum Collector Emitter Saturation Voltage:N/A
