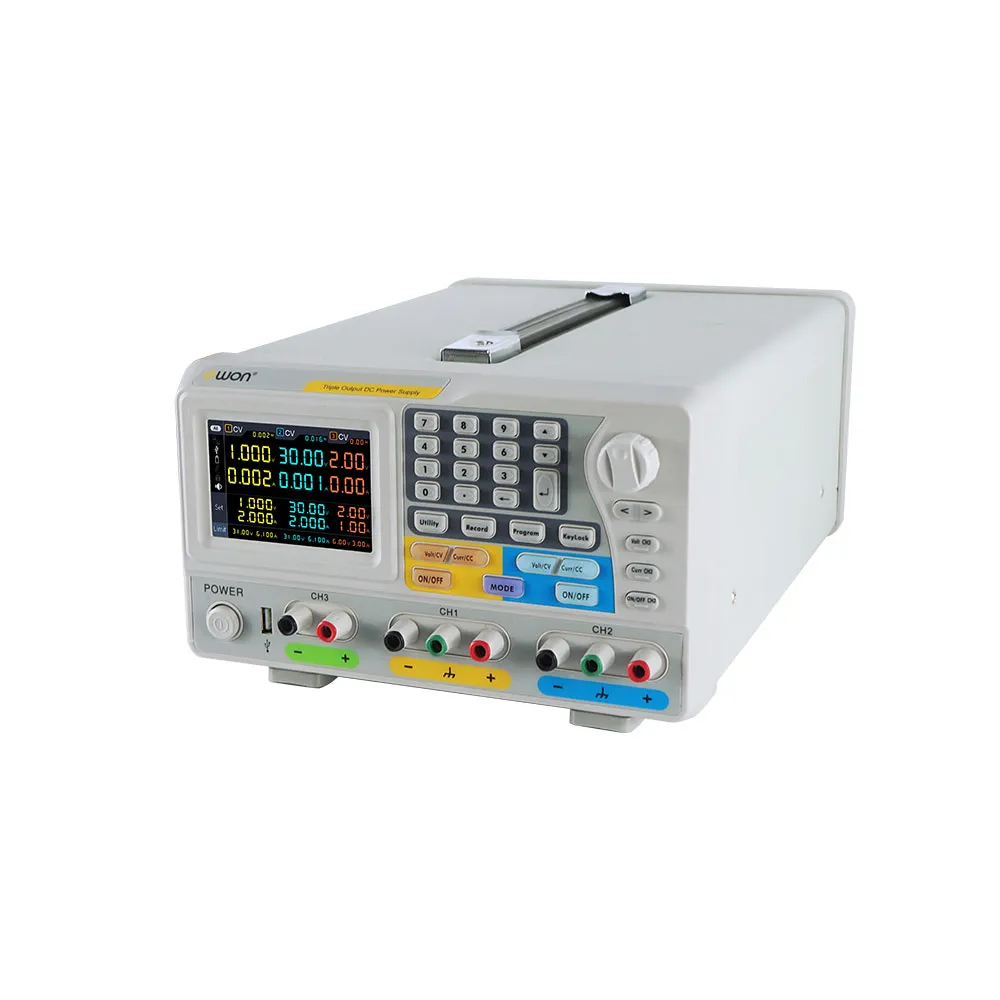

378W 30V 6A 6V 3A Three Channel Benchtop Programmable DC Power Supply 4" LCD

Features

  • Three independent controllable channels
  • Output resolution: 1mV/1mA
  • Low ripple and noise
  • Up to 100 group timers
  • Multi-working mode: individual, parallel and series
  • Over-voltage and over-current protection
  • Datalogging function: record the output voltage and current, and display recorded data in a chart
  • Auto cooling system
  • CV / CC auto-switch
  • 4" high resolution (480 x 320) LCD
  • Multiple communication interface: USB, RS232 and LAN
  • Supports SCPI and LabVIEW

Specifications

  • Total Output Power: 378 W
  • Output Range: 0 to 30 V @ 6 A (x 2 channels), 0 to 6 V @ 3 A
  • Interface: USB Host&Device, RS232 and LAN
  • Dimensions: 250 mm W x 358 mm D x 158 mm H

Videos

Product Identification

Product Type:Benchtop Power Supply

Compliance

RoHS Status:Undefined

Dimensions & Appearance

Depth:14.09 in.
Height:6.22 in.
Width:9.84 in.

Input

Input Frequency:50Hz, 60Hz
Input Voltage:110 VAC, 220 VAC

Output

Number of Outputs:3
Output Voltage:0 VDC to 30 VDC
Output Current:0 A to 6 A
Output Connector Type:Banana Jacks

Features

Type of Displays:Digital LCD
Power Rating:378 W
,
