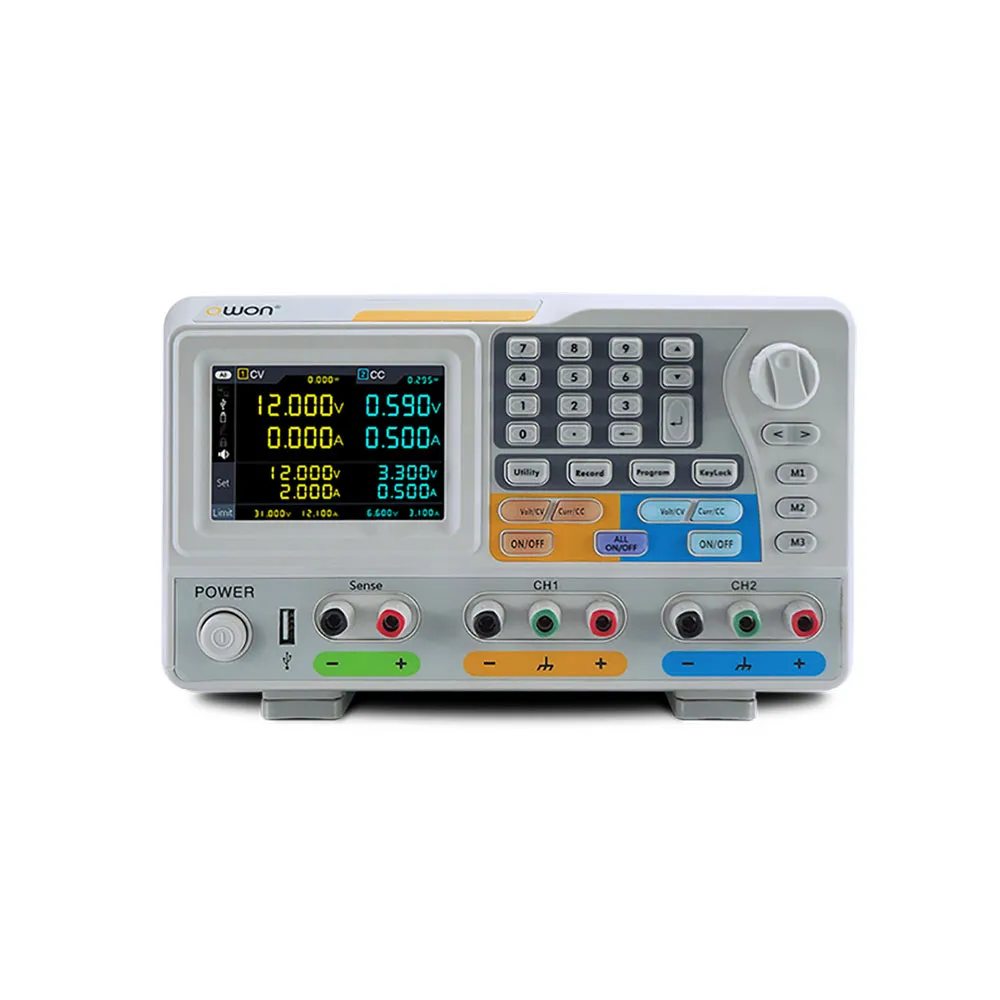

378W 30V 12A 6V 3A Dual Channel Benchtop Programmable DC Power Supply 4" LCD

Features

  • Two independent controllable channels + sense
  • Output resolution: 1mV/1mA
  • Low ripple and noise
  • Up to 100 group timers
  • Multi-working mode: individual, parallel and series
  • Over-voltage and over-current protection
  • Datalogging function: can record the output voltage and current and display recorded data in a chart
  • Auto cooling system
  • 4" high resolution (480 x 320) TFT LCD
  • Multiple communication interface: USB, RS232 and LAN
  • SCPI and LabVIEW supported

Specifications

  • Total Output Power: 378 W
  • Channels: Two independent controllable channels + sense
  • Output Channel 1: 0 to 30 @ 0 to 12 A
  • Output Channel 2: 0 to 6 V @ 0 to 3 A
  • Interface: USB Host & Device, RS232 and LAN
  • Dimensions: 250 mm W x 358 mm D x 158 mm H

Resources & Downloads

Product Identification

Product Type:Benchtop Power Supply

Compliance

RoHS Status:Undefined

Dimensions & Appearance

Depth:14.09 in.
Height:6.22 in.
Width:9.84 in.

Input

Input Frequency:50Hz, 60Hz
Input Voltage:110 VAC, 220 VAC

Output

Number of Outputs:2
Output Voltage:0 VDC to 30 VDC
Output Current:0 A to 12 A
Output Connector Type:Banana Jacks

Features

Type of Displays:Digital LCD
Power Rating:378 W
,
