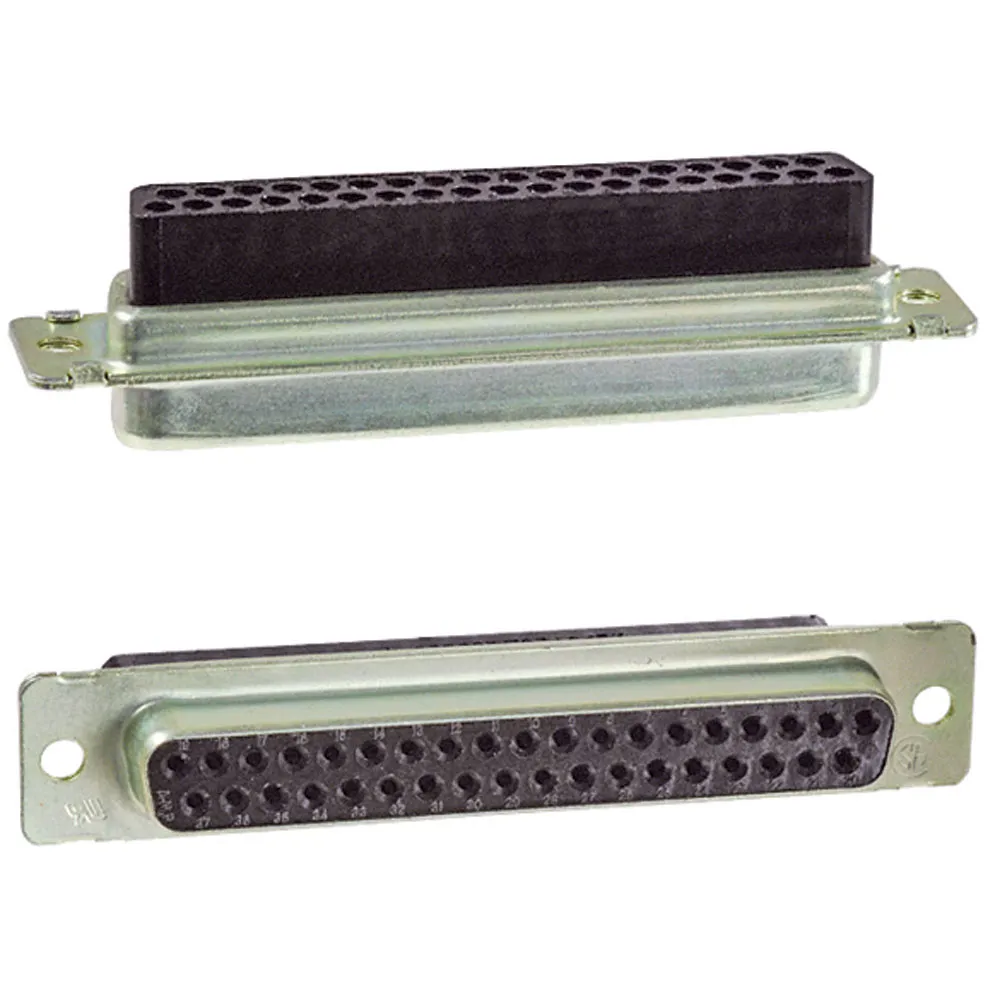

37 Position D-Sub Connector Housing Receptacle for Female Contacts
Specifications
- Series: Amplimite HDP-20
- Connector Style: D-Sub
- Connector Type: Receptacle for Female Contacts
- Number of Positions: 37
- Number of Rows: 2
- Shell Size, Connector Layout: 4 (DC, C)
- D-Sub Contact Size: 20
- Contact Type: Signal
- Mounting Type: Free Hanging (In-Line)
- Flange Feature: Housing/Shell (Unthreaded)
- Shell Material, Finish: Steel, Yellow Trivalent Chromium Chromate Zinc Plated
- Shell Finish Thickness: 200 µin (5.08 µm)
- Dielectric Material: Polyamide (PA), Nylon, Glass Filled
- Color: Black
- Note: Contacts Not Included
- Base Number: 205209
