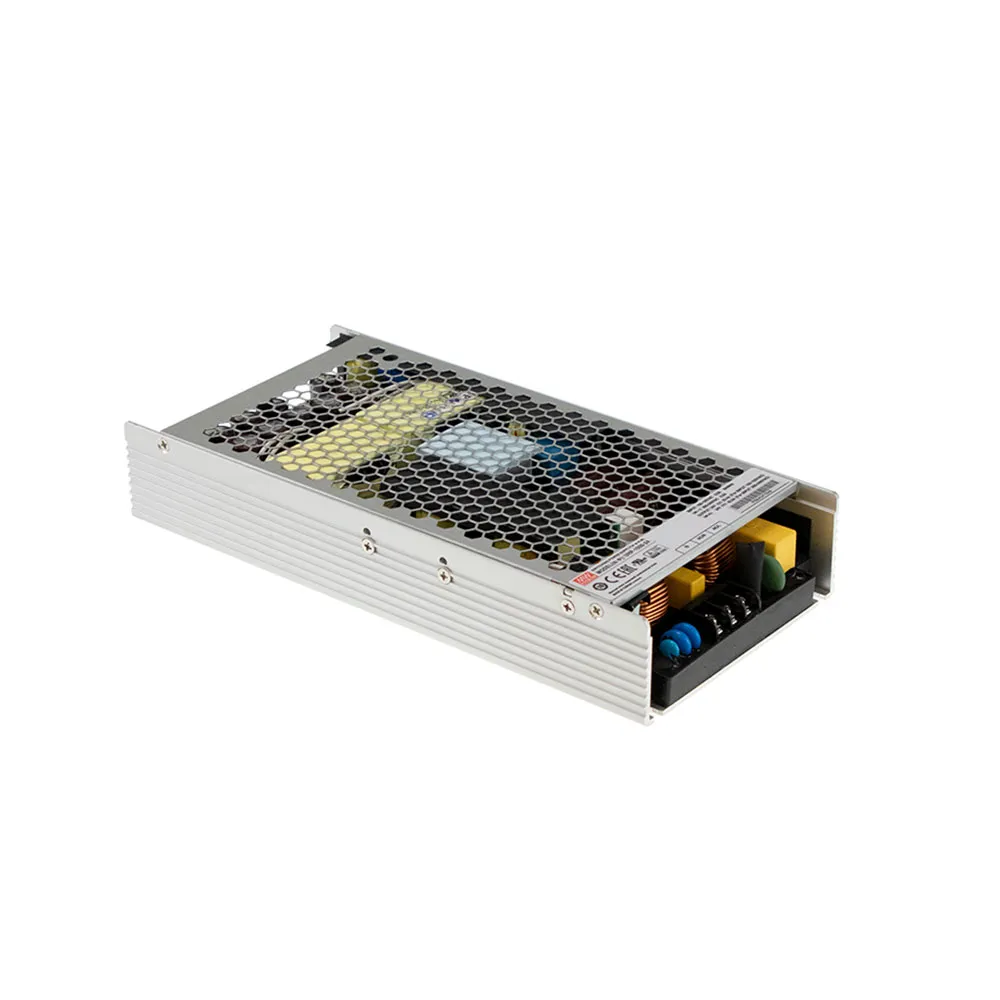

36 Volt DC 28 Amp 1008 Watt Slim Type Enclosed Switching Power Supply with PFC Function
Output: 36 Volts DC @ 28 AmpsFind out more about the MEAN WELL low-profile, miniaturized conduction cooling power supply family.
Features
- Slim and Low profile (41mm)
- Fanless and conduction-cooled design
- AC input voltage: 90 to 264 VAC @ 47 to 63 Hz
- Efficiency: 95.5%
- Withstand 300VAC surge input for 5 seconds
- Built-in active PFC function
- -30°C to +70°C working temperature
- Output voltage and constant current level programmable
- Output voltage adjustment range: 36 to 43.2V (by built-in potentiometer, SVR)
- Protections: Short circuit, Overload, Over voltage, Over temperature
- Built-in remote ON-OFF control
- DC OK active signal
- Operating altitude up to 5000 meter (Note.5)
- LED indicator for power on
- 5 year warranty
- Certificates:
- Safety: UL/EN62368-1
- EMC: EN 55032 / 55024
Applications
- Industrial automation machinery
- Industrial control system
- Mechanical and electrical equipment
- Electronic instruments, equipment or apparatus
- Test and measurement instrument
- Laser related machines
- Charging related equipment
- Household appliances
Overview
Product Identification
Type:Auto Switching SMPS
Manufacturer Series:UHP-1000
Compliance
Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL
Dimensions & Appearance
Style:Enclosed
Color:Silver
Height:1.61 in.
Width:4.53 in.
Length:9.45 in.
Operating conditions
Minimum Operating Temperature:-30°C
Maximum Operating Temperature:70°C
Input
Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:10.1 A
Output
Number of Outputs:1
Output Voltage (Channel 1):36 VDC
Output Connector Type:Screw Terminal Block
Output Voltage:36 VDC
Output Current (Channel 1):28 A
Output Current:28 A
Features
PFC Function:Yes
Minimum Isolation Voltage:3750V
Efficiency:95.5%
Power Rating:1008 W
