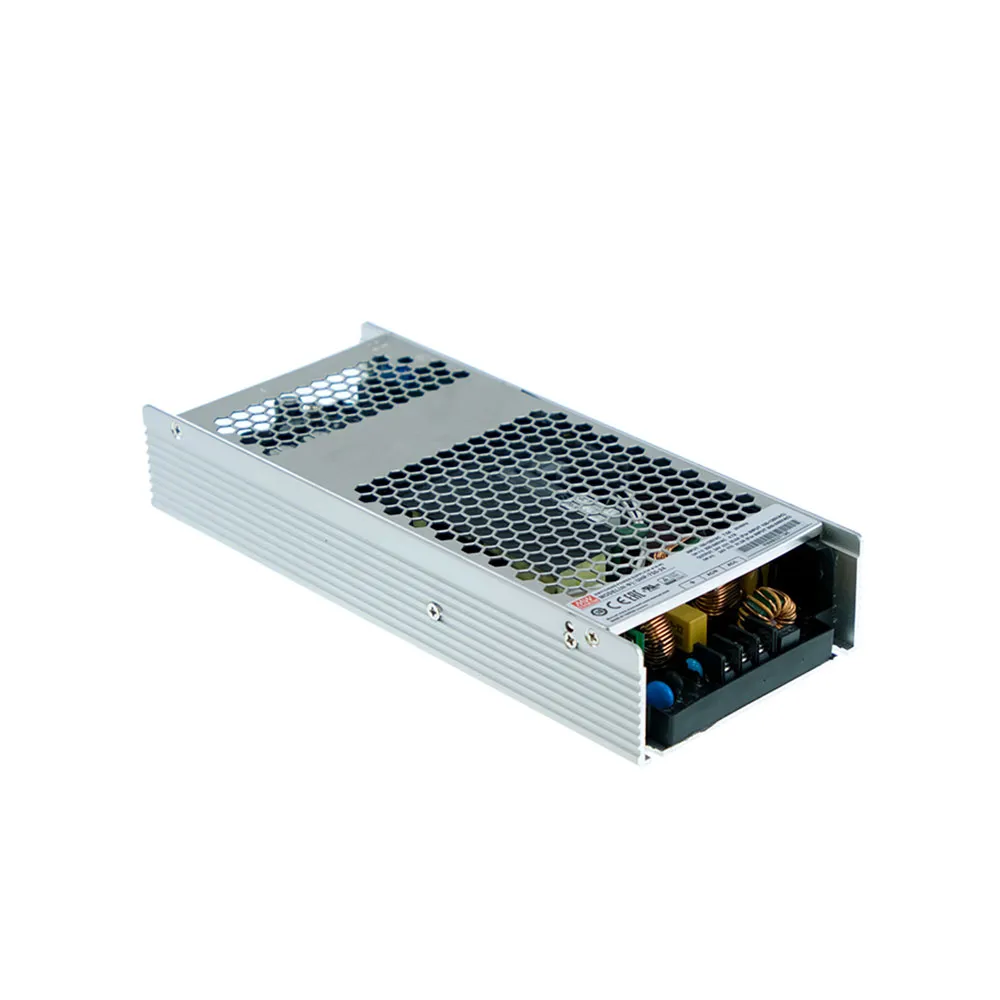

36 Volt DC 20.9 Amp 752.4 Watt Slim Type Enclosed Switching Power Supply with PFC Function

Output: 36 Volts DC @ 20.9 Amps

Find out more about the MEAN WELL low-profile, miniaturized conduction cooling power supply family.

Features

  • Slim and Low profile (41mm)
  • Fanless and conduction-cooled design
  • AC input voltage: 90 to 264 VAC @ 47 to 63 Hz
  • Efficiency: 95%
  • Withstand 300VAC surge input for 5 seconds
  • Built-in active PFC function
  • -30°C to +70°C working temperature
  • Protections: Short circuit, Overload, Over voltage, Over temperature
  • DC OK active signal
  • Operating altitude up to 5000 meter (Note. 6 on datasheet)
  • LED indicator for power on
  • 5 year warranty
  • Certificates:
    • Safety: UL/EN62368-1
    • EMC: EN 55032 / 55024

Applications

  • Industrial automation machinery
  • Industrial control system
  • Mechanical and electrical equipment
  • Electronic instruments, equipment or apparatus
  • Household appliances

Overview

Product Identification

Type:Auto Switching SMPS
Manufacturer Series:UHP-750

Compliance

Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL

Dimensions & Appearance

Style:Enclosed
Color:Silver
Height:1.61 in.
Width:3.94 in.
Length:9.33 in.

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:7.5 A

Output

Number of Outputs:1
Output Voltage (Channel 1):36 VDC
Output Connector Type:Screw Terminal Block
Output Voltage:36 VDC
Output Current (Channel 1):20.9 A
Output Current:20.90 A

Features

PFC Function:Yes
Minimum Isolation Voltage:3000V
Efficiency:95%
Power Rating:752.4 W
,
