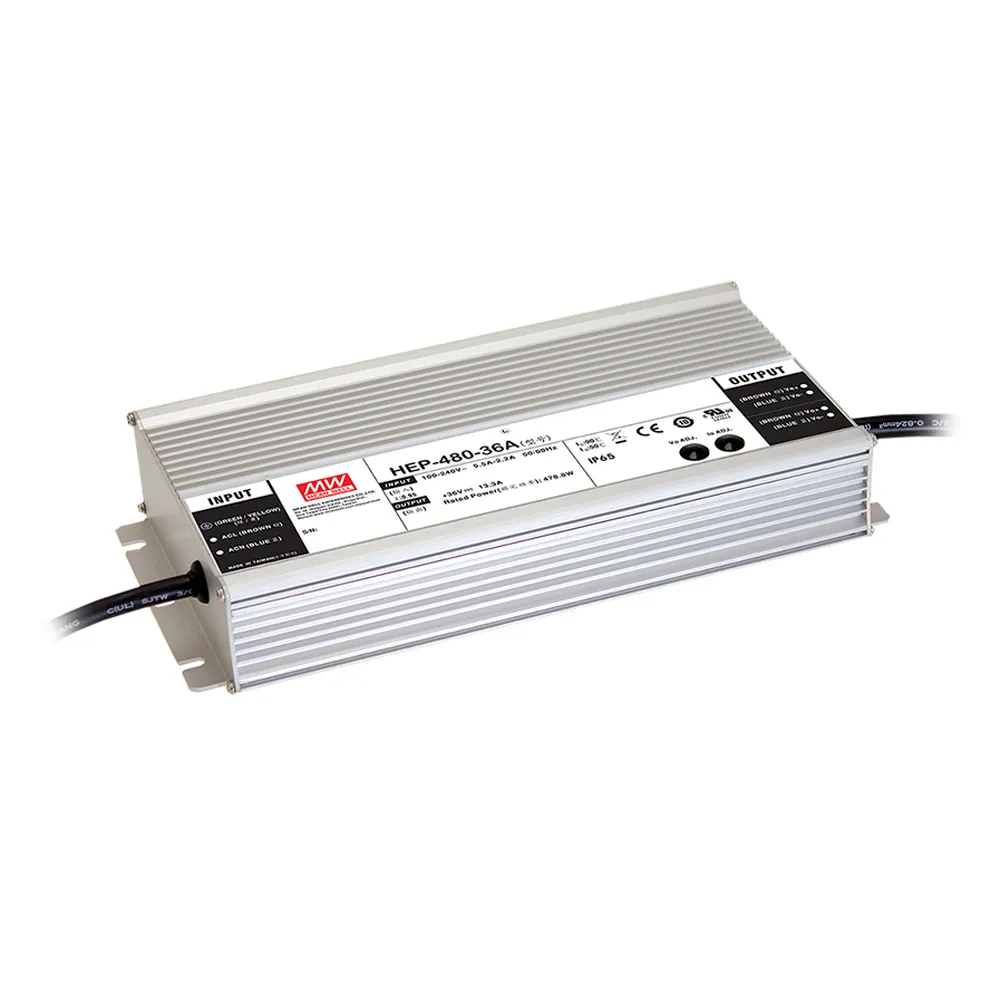

36VDC 13.3A 478W IP65 Enclosed Switching Power Supply - Outputs Adjustable by Internal Pot

36 Volts DC @ 13.3 Amps

Features

  • Universal AC input / Full range(up to 305VAC)
  • Built-in active PFC function
  • High efficiency up to 95%
  • Fanless design, cooling by free air convection
  • -55 to +65 wide operating range
  • Aluminum case and filled with heat-conducted silicone (potted)
  • IP65 design
  • Meet 6KV surge immunity level
  • Withstand 10G vibration test
  • Operating altitude up to 5000 meters (Note.7 on datasheet)
  • Protections: Short circuit, Overload, Over voltage, Over temperature
  • 6 year warranty

Specifications

  • Voltage adjustment range: 30.6V to 37.8V (via built-in potentiometer)
  • Current adjustment range: 6.6A to 13.3A (via built-in potentiometer)
  • Rated power: 478.8 watts
  • Line regulation: ± 0.5%
  • Load regulation: ± 0.5%
  • Efficiency: 95%
  • Input voltage: 90 to 305 VAC @ 47-63Hz
  • Agency approvals: UL, CUL, CB, CE

Applications

  • Outdoor telecommunication equipment
  • Outdoor electronic signage and billboard
  • Petroleum plant or mine shaft facility

Product Identification

Type:Auto Switching SMPS
Manufacturer Series:HEP-480

Compliance

Agency Approvals: CB, CE, CUL, EAC, EN, UL

Dimensions & Appearance

Style:Enclosed
Color:Silver
Height:1.72 in.
Length:10.31 in.
Width:4.92 in.

Operating conditions

Minimum Operating Temperature:-55°C
Maximum Operating Temperature:65°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 305 VAC
Maximum Input Current:5 A

Output

Number of Outputs:1
Output Voltage (Channel 1):36 VDC
Output Connector Type:Stripped and Tinned
Output Voltage:36 VDC
Output Current (Channel 1):13.3 A
Output Current:13.30 A

Features

PFC Function:Yes
Minimum Isolation Voltage:3750V
Efficiency:95%
Power Rating:478.8 W
,
