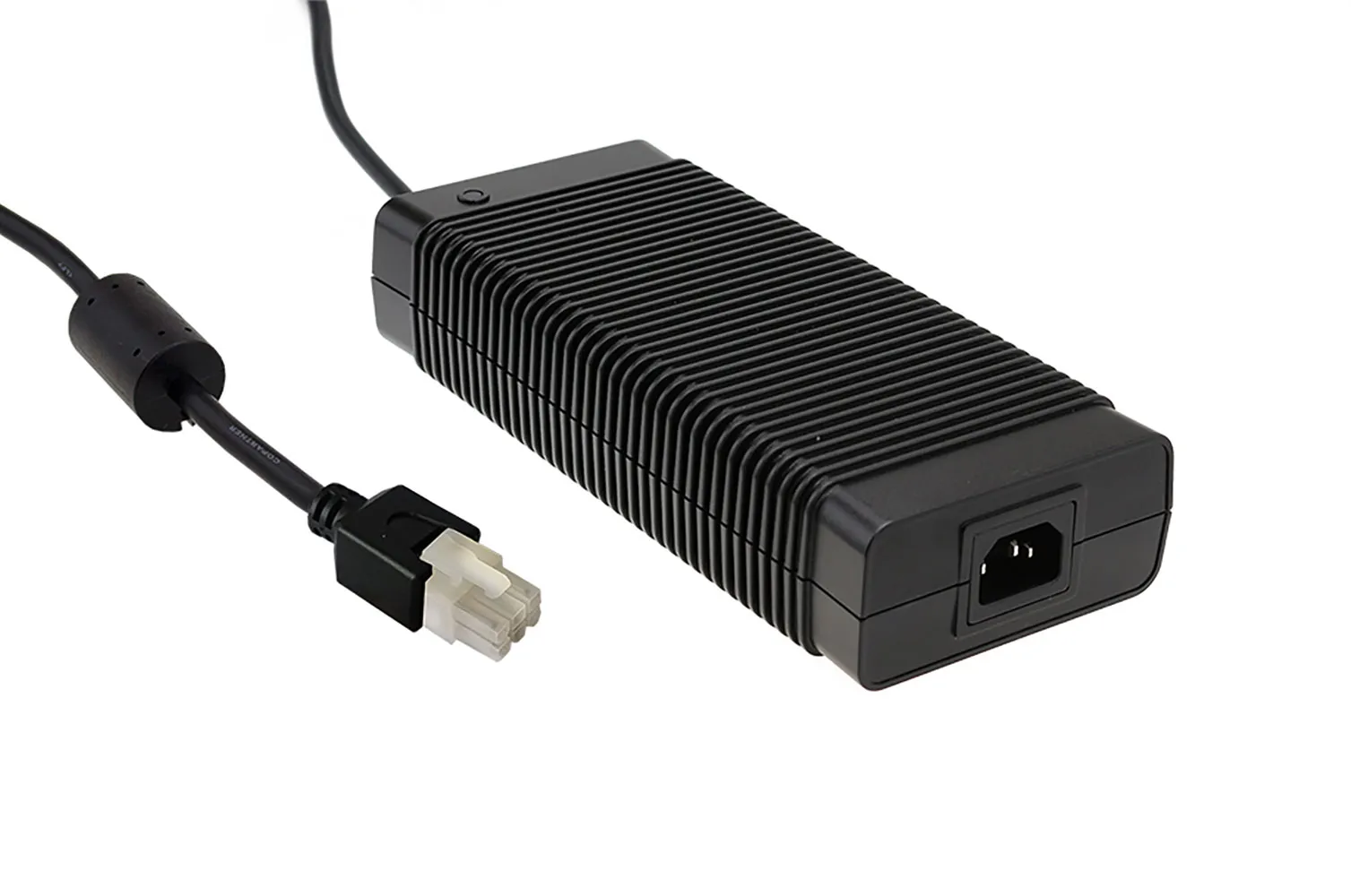

360W 48V 7.5A AC-DC High Reliability Industrial Table Top Power Supply
Features:
- Global certificates: UL, CUL, TUV, CB, CE, FCC, CCC, UKCA, Dekra, EAC, KC, IS
- 450W peak power (3 sec.)
- Universal AC input / Full range
- 3 pole AC inlet IEC320-C14. (AC input cord is not included, we recommend our 3-conductor AC power cord, P/N: 2271575)
- Output Connector: Molex 39-01-2080 (4.2mm) Connector
- Built-in active PFC function
- No load power consumption: <0.5W
- Energy efficiency Level VI
- Complies with international energy-saving standards
- Class I power (with earth pin)
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Fanless design with -30 to +70°C working temperature
- Fully enclosed plastic case
- LED indicator for power on
- 3 year warranty
Specifications
- DC Voltage: 48 VDC
- Rated Current: 7.5 A
- Rated Power: 360 W (max.); 450 W (Peak, 3 sec.)
- Input Voltage: 85-264 VAC @ 47-63 Hz; 3.8 A (115 VAC), 2 A (230 VAC)
Applications:
- Consumer electronic devices
- Telecommunication devices
- Office facilities
- Industrial equipment
- 3D printer
- Game console
- Vision mixer
- Power sourcing equipment of PoE
Overview
Product Identification
Type:Auto Switching SMPS
Manufacturer Series:GST360A
Compliance
Agency Approvals: AS/NZS, CB, CE, CUL, DEKRA, EAC, EN, FCC, UKCA, UL
Dimensions & Appearance
Style:Desktop
Color:Black
Height:1.81 in.
Width:3.74 in.
Length:8.66 in.
Operating conditions
Minimum Operating Temperature:-30°C
Maximum Operating Temperature:70°C
Input
Input Frequency:47 Hz to 63 Hz
Input Voltage:85 VAC to 264 VAC
Maximum Input Current:3.8 A
Output
Number of Outputs:1
Output Connector Diameters:6-Pin Molex
Output Connector Type:Molex 39-01-2060
Output Voltage (Channel 1):48 VDC
Output Voltage:48 VDC
Additional Output Voltages (VDC):N/A
Output Current (Channel 1):7.5 A
Output Current:7.5 A
Features
Minimum Isolation Voltage:3000V
Polarity:N/A
Product Note:Level VI
AC Power Cord:NOT INCLUDED, RECOMMEND 2271575
IP Rating:N/A
Efficiency:95%
Power Rating:360 W
