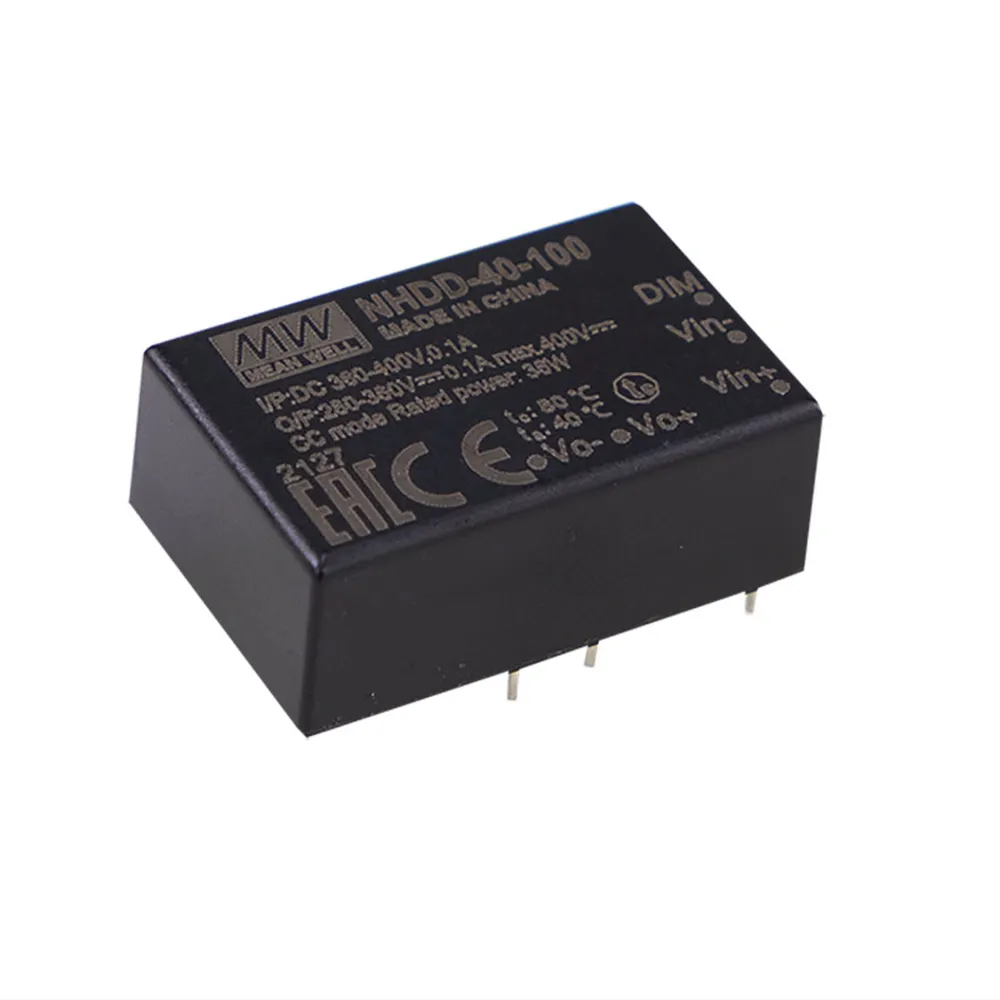

35W DC-DC Constant Current LED Driver 100mA 350V for 380V Input PCB Mount
Features
- Constant current mode output
- For DC 380V Bus lighting applications
- Plastic housing and fully encapsulated
- Built-in PWM and Remote ON/OFF control
- Protections: Short circuit, over temperature
- 5 year warranty
- Size: 1.26"L x 0.8"W x 0.49"H (32.1 x 20.5 x 12.5 mm)
Specifications
- Output Current Level: 100 mA
- Rated Power: 35 W
- Output DC Voltage Range: 350 V
- Output Style: PC Pins
- Input Voltage Range: 360 to 420 VDC (typical 380 VDC)
- Input DC Current: 0.1 A @ 380 VDC
- Agency Approvals: CE, EAC, UKCA, EN
Applications
- Panel lighting
- Indoor LED lighting
- Recessed lighting
- Linear lighting
- DC house lighting system
- Industrial lighting
Product Identification
Product Type:Constant Current High-Voltage Input SMPS
Manufacturer Series:NHDD-40
Compliance
Agency Approvals:CE, EN, EAC, UKCA
Dimensions & Appearance
Style:Encapsulated
Color:Black
Height:0.49 in.
Width:0.80 in.
Length:1.26 in.
Operating conditions
Minimum Operating Temperature:-30°C
Maximum Operating Temperature:40°C
Input
Input Frequency:N/A
Maximum Input Current:0.1 A
Input Voltage:360 VDC to 420 VDC
Output
Output Current (Channel 1):0.10 A
Number of Outputs:1
Output Current:0.10 A
Output Connector Type:PC Pins
Output Voltage (Channel 1):350 VDC
Output Voltage:350 VDC
Output Range:350 VDC
Features
PFC Function:No
Minimum Isolation Voltage:N/A
IP Rating:N/A
Efficiency:95%
Power Rating:35 W
