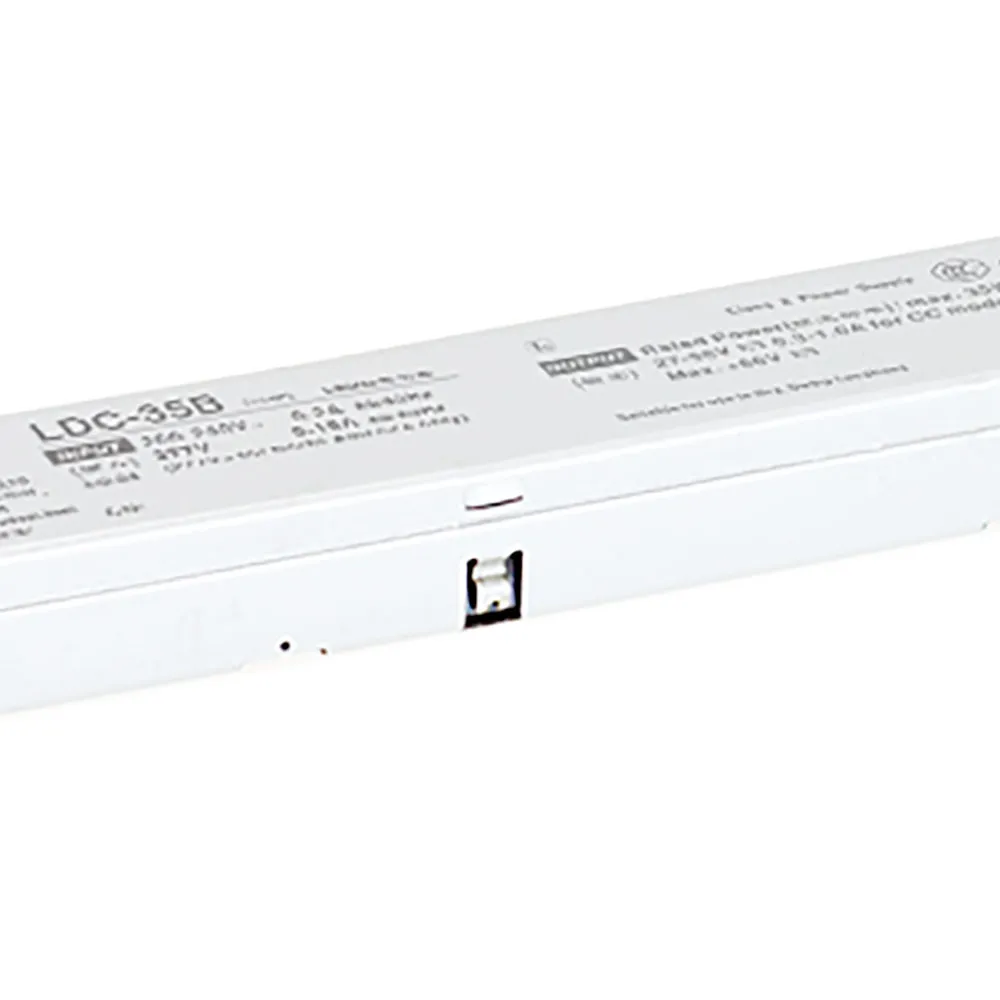

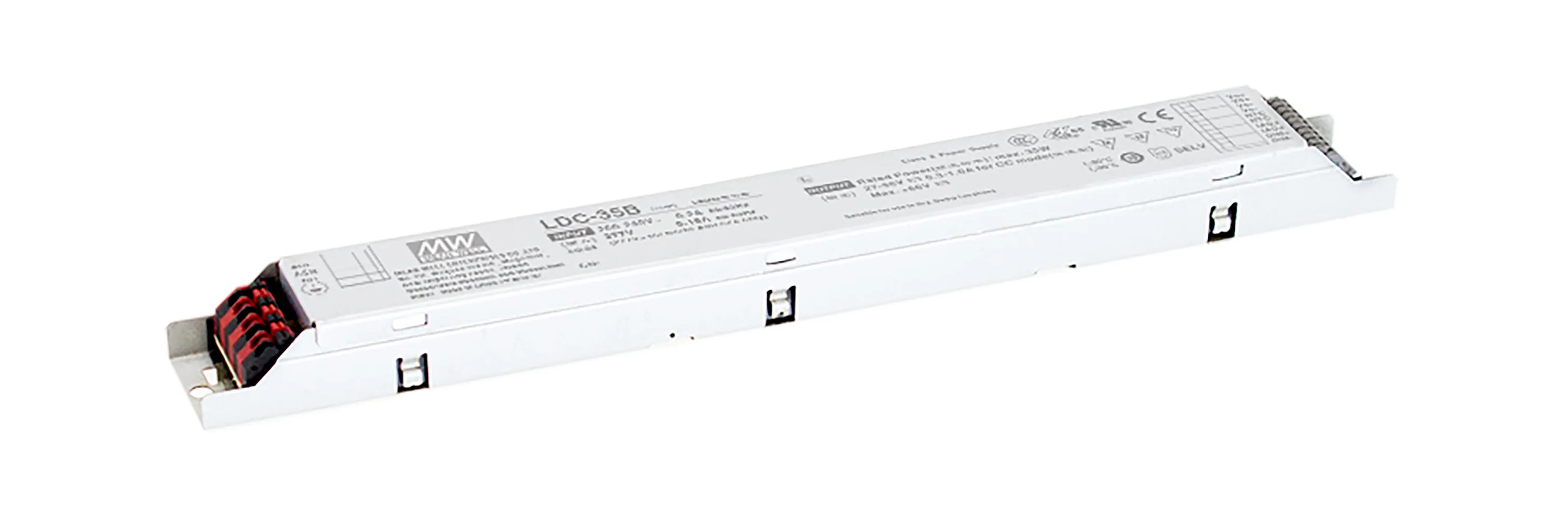

35W 3 in 1 Dimming Constant Power MODE Linear LED Driver

300mA to 1000 mA @ 27 to 56 Volts DC

Features

  • Input voltage: 180 to 295 VAC @ 47 to 63 Hz
  • Built-in active PFC function
  • Class 2 Power Supply
  • SELV and Isolated
  • Metal housing design
  • Flicker Free design
  • Full Power at 70 to 100% max Current
  • No load / Standby power consumption <0.5W
  • Output current level pre-settable
  • Constant Power mode output
  • Typical lifetime: >50,000 hours
  • SELV and Isolated
  • Agency approvals: UL/CUL/TUV/CEC/CCC
  • 5 year warranty

Applications

  • Linear LED lighting
  • LED panel lighting
  • Indoor LED lighting

Product Identification

Product Type:Auto Switching SMPS
Manufacturer Series:LDC-35

Compliance

Agency Approvals: CB, CCC, CE, CUL, EAC, EN, ENEC, UL

Dimensions & Appearance

Style:Enclosed
Color:White
Height:0.83 in.
Width:1.18 in.
Length:11.02 in.

Operating conditions

Minimum Operating Temperature:-25°C
Maximum Operating Temperature:80°C

Input

Input Frequency:47 Hz to 63 Hz
Maximum Input Current:0.2 A
Input Voltage:180 VAC to 295 VAC

Output

Number of Outputs:1
Output Current (Channel 1):0.625 A to 1 A
Output Voltage (Channel 1):27 VDC to 56 VDC
Output Connector Type:Screw Terminal Block
Output Range:27 VDC to 56 VDC
Output Voltage:See Output Range
Output Current:1 A

Features

PFC Function:Yes
Minimum Isolation Voltage:3750V
IP Rating:N/A
Efficiency:88%
Power Rating:35 W
,
