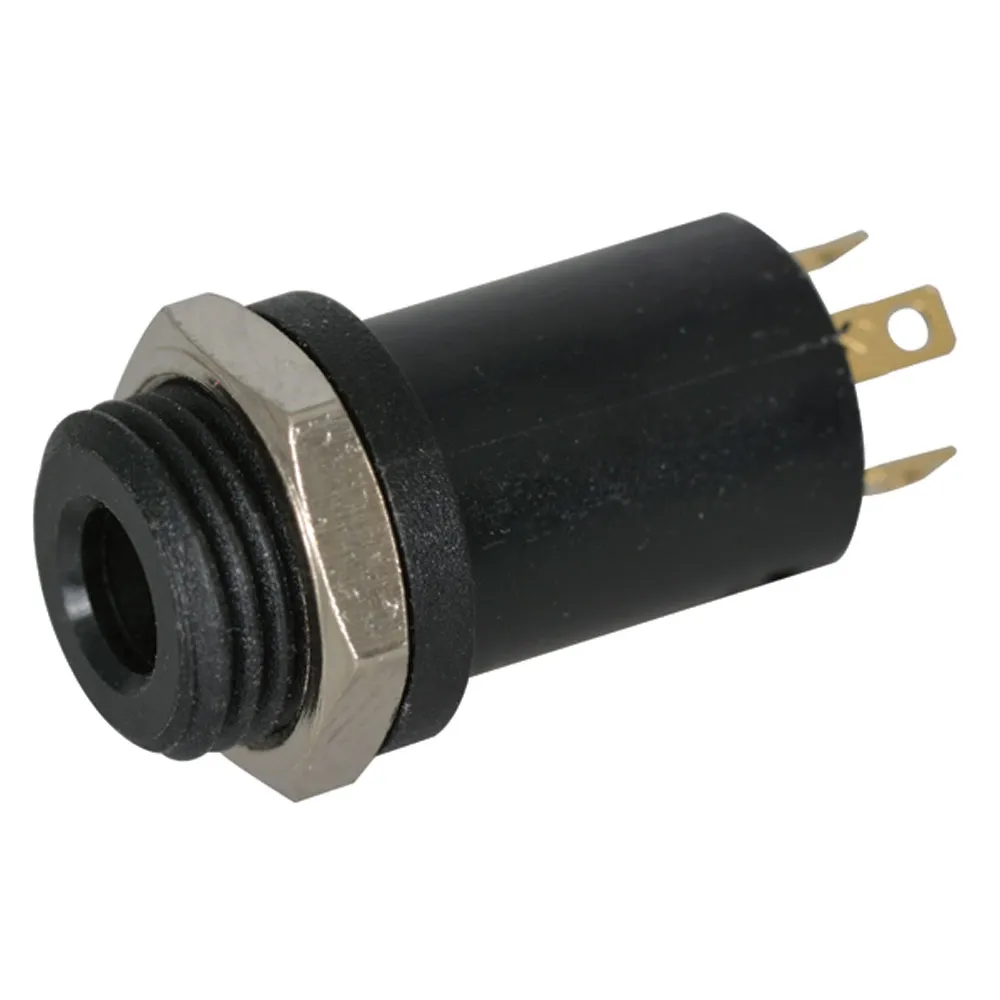

3.5mm 4 Conductor TRRS Panel Mount Jack

Specifications

  • 4 conductor
  • Panel mount, solder eyelet
       · Pin 1 - Earth spring
       · Pin 2 - Tip spring
       · Pin 3 - Ring spring
       · Pin 4 - Ring spring
  • Overall height: 0.644"
  • Body diameter: 0.315"
  • Threads: M8*P0.75

    Related Products

  • 3.5mm 4P plug (TRRS) (P/N: 2200954)

    • Product Identification

    Product Type:3.5 mm, Stereo
    Manufacturer Series:ValuePro

    Dimensions & Appearance

    Body Orientation:Straight
    Color:Black
    Mounting:Panel Mount
    Dimensions:16.4L x 8.0 Dia (mm)

    Operating conditions

    Minimum Operating Temperature:-20°C
    Maximum Operating Temperature:65°C

    Features

    Number of Contacts:4
    Contact Material:Copper Alloy
    Termination Method:Solder Lug
    Contact Plating:Nickel
    Gender:Jack
    Housing Material:Polyethylene
    Voltage Rating:25 VDC
    Current Rating:1 A
    ,
