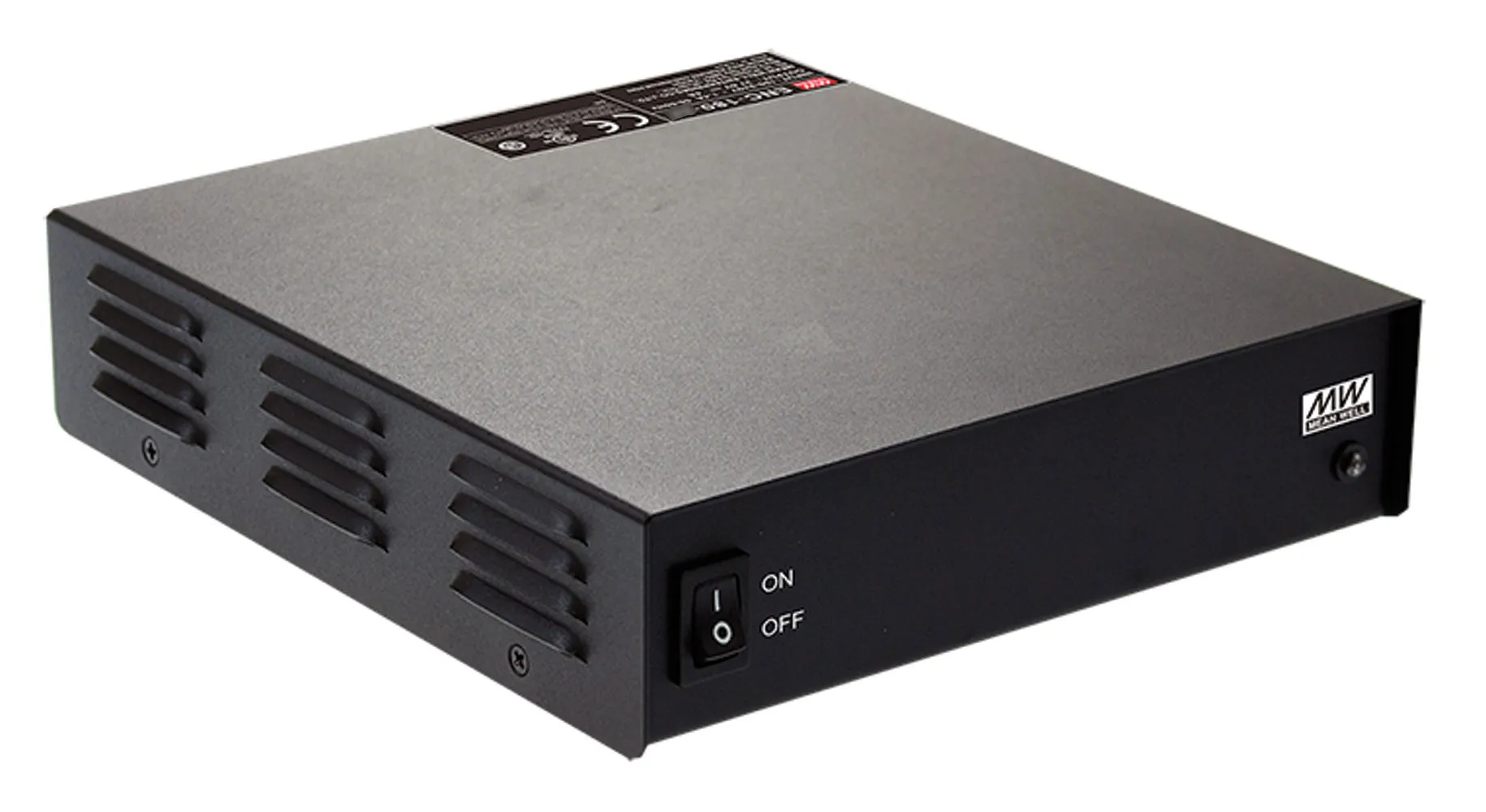

359W 27.6V 13A Level VI Desktop Type Power Supply

27.6V @ 13A

Features

  • Universal AC input/Full range (90-264VAC @ 47-63Hz)
  • Built-in active PFC function
  • Energy efficiency Level VI
  • No load pwer consumption <0.5W
  • Complies with EISA 207/DoE, NRCan and EU ErP
  • 125% peak load capacity
  • Protection against: Short circuit/Over-voltage/Under-voltage/Over-heating
  • Fanless design, with cooling via free air convection
  • 3 year warranty

Applications for Use

  • Land-based mobile radio systems, Surveilance systems, TV antenna installations

Product Identification

Type:Auto Switching SMPS
Manufacturer Series:ENP-360

Compliance

Agency Approvals: CB, CE, CUL, EAC, EN, FCC, UL

Dimensions & Appearance

Style:Desktop
Color:Black
Height:1.79 in.
Width:7.01 in.
Length:7.56 in.

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:3.8 A

Output

Number of Outputs:1
Output Connector Diameters:N/A
Output Voltage (Channel 1):27.6 VDC
Output Connector Type:Screw Terminal Block
Output Voltage:27.6 VDC
Additional Output Voltages (VDC):N/A
Output Current (Channel 1):13 A
Output Current:13 A

Features

Minimum Isolation Voltage:3000V
Polarity:N/A
Product Note:Level VI
AC Power Cord:NOT INCLUDED, RECOMMEND 2271575
IP Rating:N/A
Efficiency:93%
Power Rating:359 W
,
