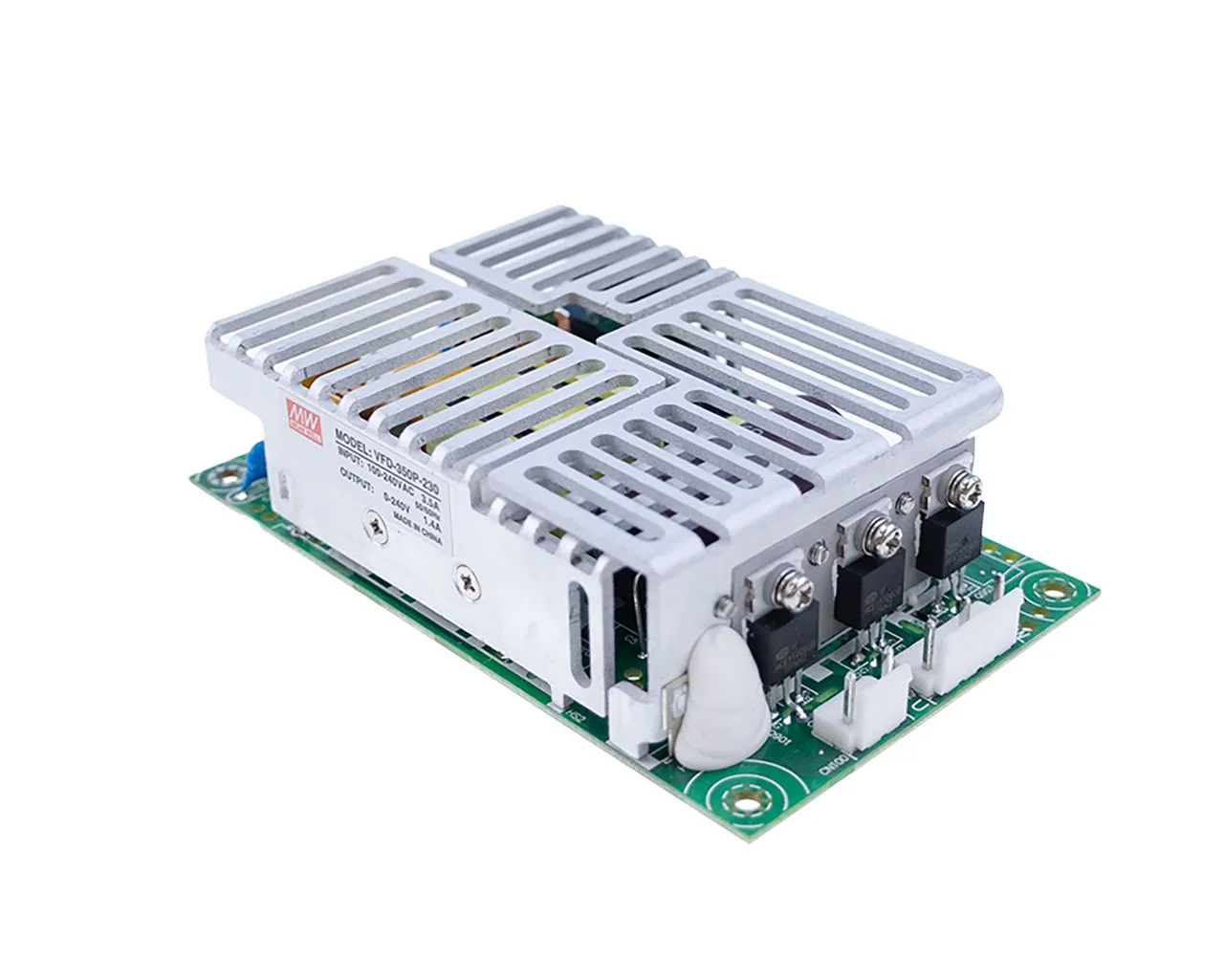

350W General Type Open-Frame Variable Frequency Drive with PFC Function for 200-240V Motor

MEAN WELL

Jameco Part #:

Manufacturer #:

Primary datasheet

Non Cancelable

Non Returnable

Product Price:

$42.950

In Stock: 0

Quantity	Unit Price	You Save	Discount
1+	$42.950	-	-
5+	$40.350	2.60	6.05%
25+	$38.250	4.70	10.94%

Features

5" x 3" miniature size
Universal AC input: 90 to 264 VAC with built-in PFC function
Controllable with external controller
Fanless design for no-noise and extended life cycle
High surge current of 200% for up to 5 seconds
Protections: Short circuit, over current
Provides multiple sensors for control:

Current sensor - motor torque control
DC bus voltage sensor - OVP/UVP
Temperature sensor - OTP

-30 to +70°C wide operating temperature range
Suitable for three phase motor drive (BLDC, Induction motor, SynRM)
3-year warranty

Overview

The VFD-350P-230 is a variable frequency drive that can be controlled with external PWM controller. The input range is from 90 VAC to 264 VAC and compact size of 5x"3" makes is suitable for a multitude of installations. This VFD can deliver 200% peak load and is of a fanless design. It is well suited for three-phase motor drive such as BLDC, induction motor, and SynRM applications.

Technical Specifications

Output voltage range: Three-phase line-to-line 0-240V, suited for 200-240V class motor
Output Capacity: 350 W
Rated Current: 1.4 A (convection); 2.2 A (15 CFM)
Power: 350 W (convection); 550 W (15 CFM)
Peak Current: 2.8 A
DC Bus Voltage: 380 VDC ±5

Applications

HVAC
Fan
Pump
Automatic door
Air conditioning
Conveyor
Medical device
Fitness equipment
