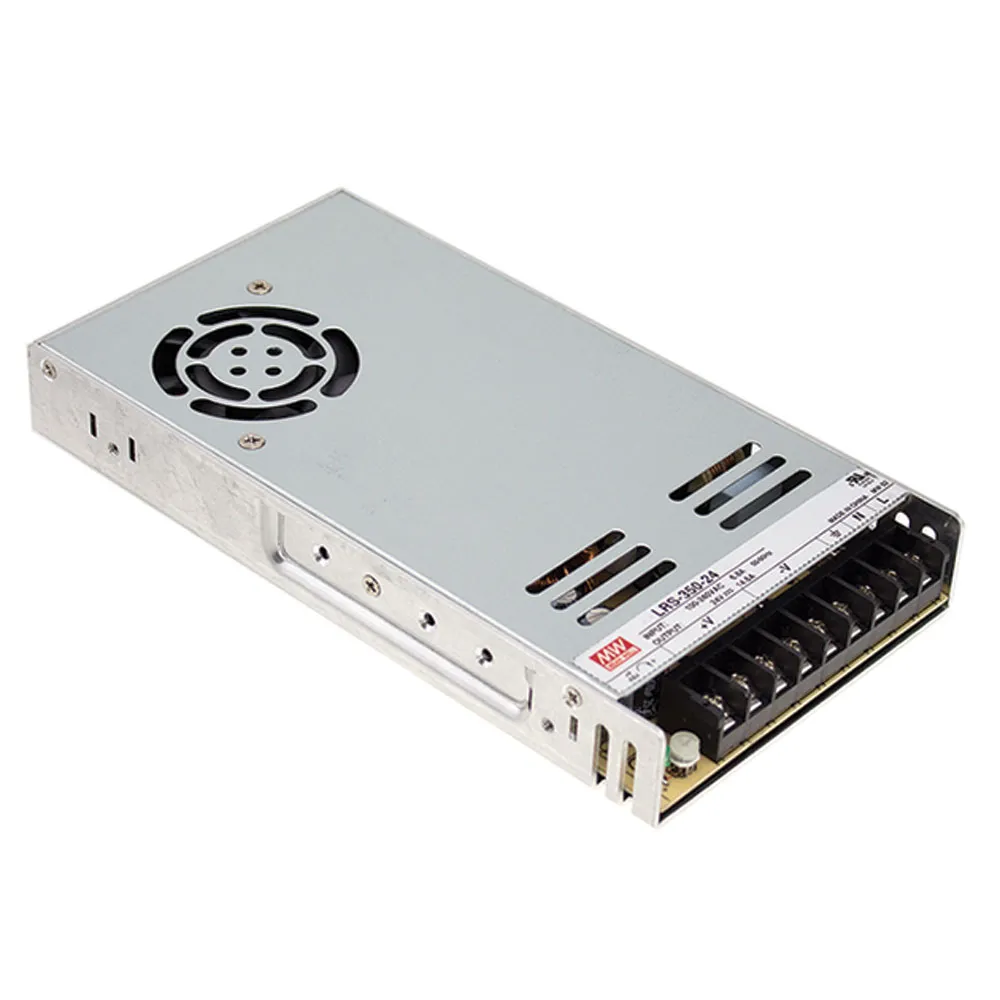

350.4W 48V 7.3A Single-Output Enclosed Power Supply

Features

  • AC input range selectable by a switch
  • Withstand 300 VAC surge input for 5 seconds
  • No load power consumption <0.75W
  • 1U low profile
  • High operating temperature, up to 70°C
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Built-in cooling fan, ON-OFF control
  • Compliance to UL 60950-1
  • Withstand 5G vibration test
  • High efficiency, long life and high reliability
  • LED indicator for power on
  • 100% full load burn-in test
  • 3 year warranty

Overview

Every day, the electronic parts in the things we use get smaller and more complicated. Switching Power Supplies (SPS) like the MEAN WELL LRS-350-48 are needed to give the power these small electronic parts need. This model has an output voltage of 24V, which makes it perfect for running electronics that need a lower voltage. It is one of the most popular LRS Series because it works well, is reliable, and isn't too expensive. Get this AC-to-DC switching power supply from Jameco Electronics when you need a reliable power supply. It is perfect for powering industrial automation machinery, industrial control systems, mechanical and electrical equipment, and a wide range of electronic instruments, equipment, or apparatus.

This AC/DC power supply can be as efficient as 89% and has a long life. It can work in temperatures from -25 to +70 degrees Celsius. The LRS-350-48 power supply uses less than 0.75W of power when there is no load. This makes it an energy-efficient way to power your electronic projects and builds. It can also stop vibrations up to 5G and has other safety features that are better than most, making it compliant with international safety standards like IEC/UL 62368-1. Plus, it has a great price-to-performance ratio, which makes it a great choice for hobbyists, students, and professionals alike.

At Jameco Electronics, we only sell parts and components of the highest quality, so you can be sure that you are getting reliable items that will do the job. Our online store has all the parts you need, from the MEAN WELL LRS-350-48 power supply to the bulk wire and interconnects to get your projects connected. Request a quote today, and you'll get quick shipping and a good price.

Applications

  • Industrial automation machinery
  • Industrial control system
  • Mechanical and electrical equipment
  • Electronic instruments, equipment or apparatus


Product Identification

Type:Auto Switching SMPS
Manufacturer Series:LRS-350

Compliance

Agency Approvals: BSMI, CB, CE, CUL, EAC, UL, IEC/EN 61558-1

Dimensions & Appearance

Style:Enclosed
Color:Silver
Height:1.2 in.
Width:4.5 in.
Length:8.5 in.

Operating conditions

Minimum Operating Temperature:-25°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 132 VAC, 180 VAC to 264 VAC
Maximum Input Current:6.8 A

Output

Number of Outputs:1
Output Voltage (Channel 1):48 VDC
Output Connector Type:Screw Terminal Block
Output Voltage:48 VDC
Output Current (Channel 1):7.3 A
Output Current:7.30 A

Features

PFC Function:No
Minimum Isolation Voltage:3000V
Efficiency:89%
Power Rating:350.4 W
,
