350W 48V 7.3A Enclosed Single Output High Peak Power Supply
Features
- AC input range selectable by switch
- Withstand 300 VAC surge input for 5 seconds
- Up to 200% peak power capability
- Protections: Short circuit, overload, over voltage, over temperature
- Forced air cooling by built-in DC fan
- Built-in cooling Fan ON-OFF control
- 1U low profile
- Compliance to IEC/UL62368-1
- Operating altitude up to 5000 meters
- Withstand 5G vibration test
- LED indicator for power on
- No load power consumption <0.75W
- High operating temperature up to 70°C
- High efficiency, long life and high reliability
- 3-year warranty
Overview

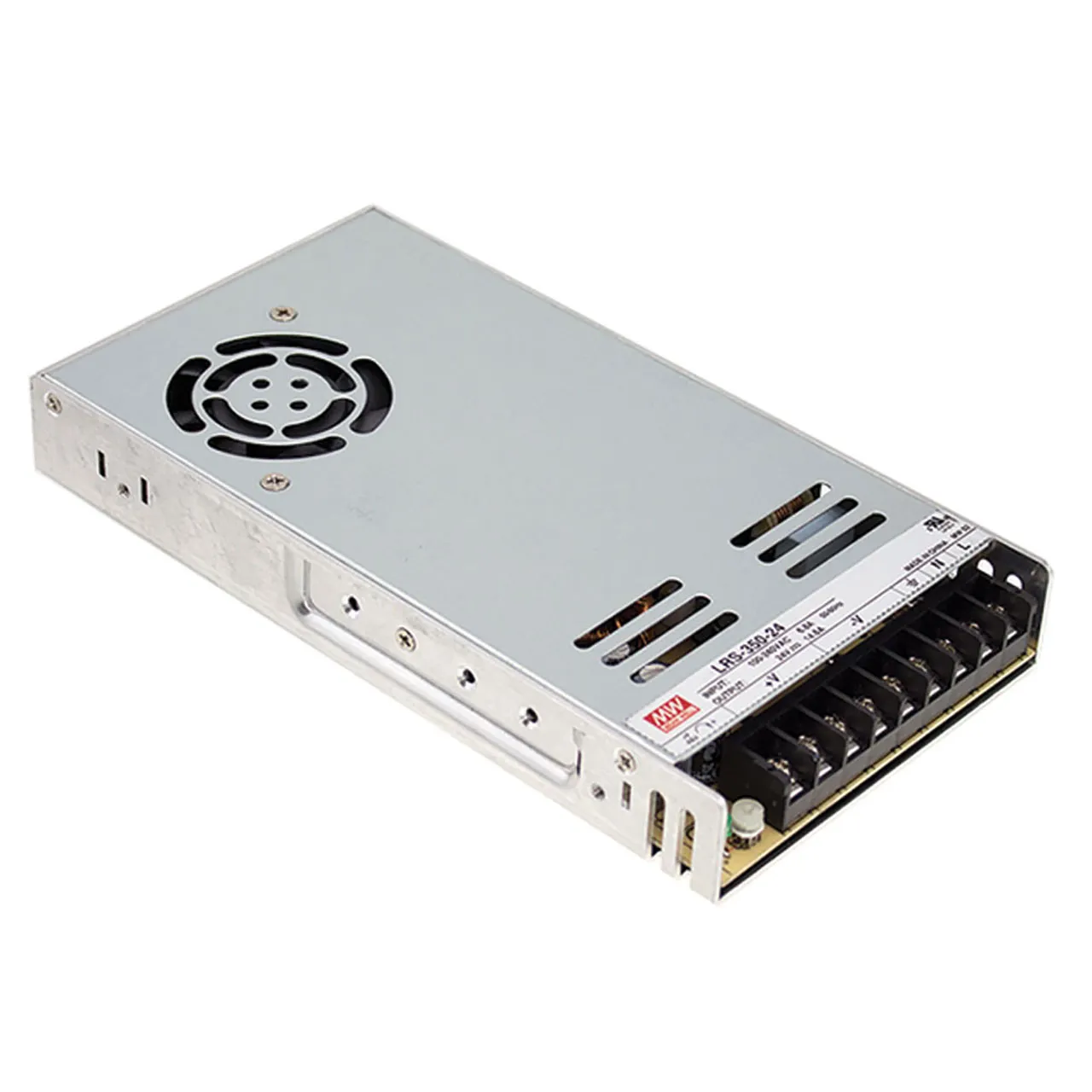

LRS-350N2 series is a 350W single-output enclosed type power supply with a 30mm low profile design. Adopting the input of 115VAC or 230VAC (selectable by switch), the entire series provides an output voltage line of 12V, 24V, 36V, and 48V. In addition to the high efficiency up to 89%, the built-in long life fan can work from -25°C to +70°C with full load. Delivering an extremely low no load power consumption (less than 0.75W), it allows the end system to easily meet the worldwide energy requirement.
LRS-350N2 has the complete protection functions and 5G anti-vibration capability and is compliant with international safety regulations such as IEC/UL 62368-1. LRS-350N2 series serves as a high price-to-performance power supply solution for various industrial applications. Moreover, it can provide 200% short-duration peak power for motor applications and electromechanical loads requiring much higher power during start-up.
Applications
- Industrial automation machinery
- Industrial control systems
- Mechanical and electrical equipment
- Electronic instruments, equipment or apparatus
