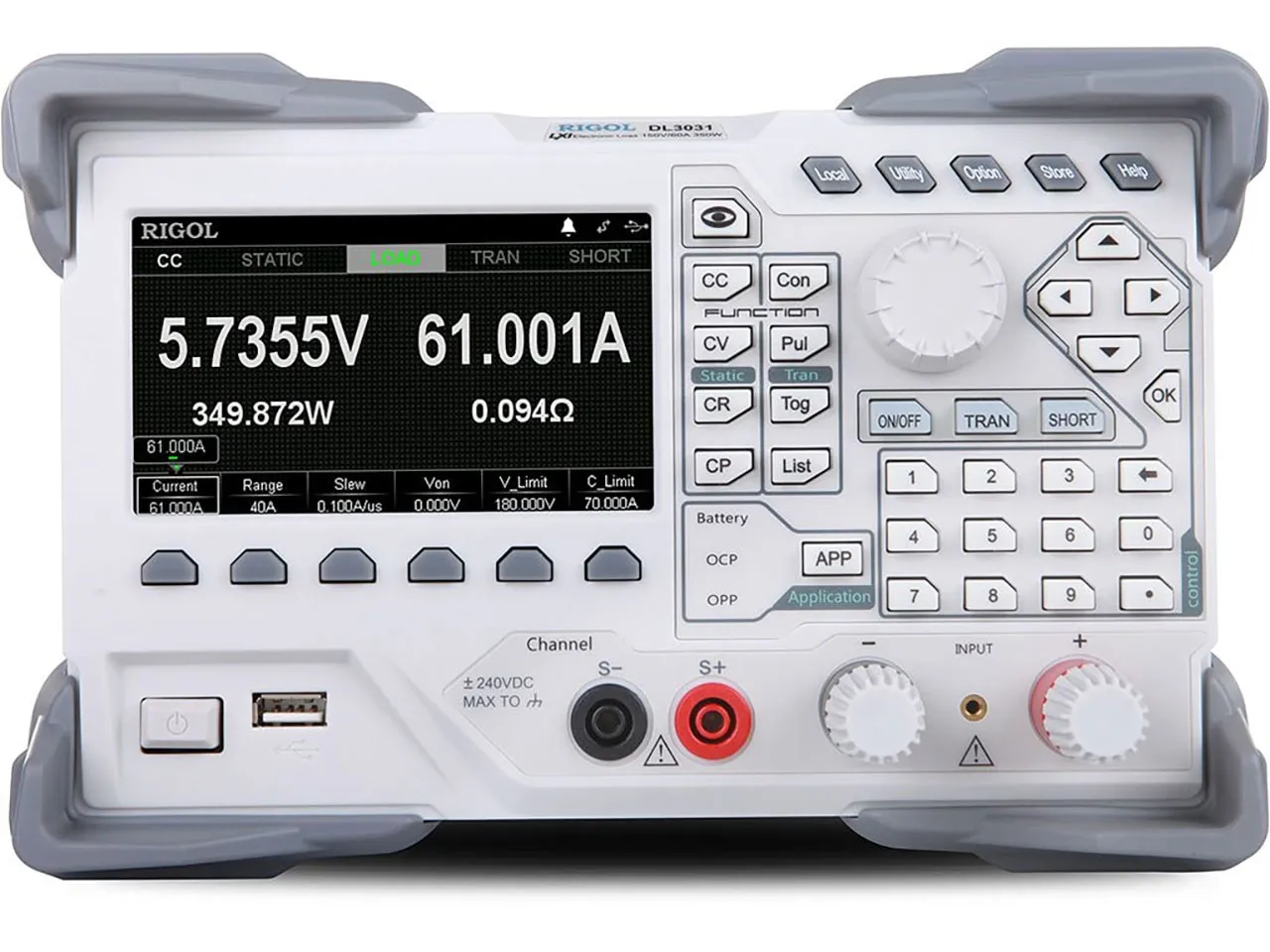

350W 150V 60A Precision DC Electronic Load (DL3031)

Features

• Total Power: 350 Watts
• Max Voltage: 150 Volts
• Max Current: 60 Amps
• Channel: 1
• Adjustable current rising speed: 0.001 A/µs to 5 A/µs
• 4.3-inch TFT LCD, capable of displaying multiple parameters and states simultaneously
• 4 static modes: CC, CV, CR, CP
• 3 dynamic modes: continuous, pulsed, toggled
• List function supports editing as many as 512 steps
• Battery test function, OCP test, OPP test, factory test function, etc.
• Short-circuit test function
• Power-off memory function
• Built-in RS232/USB/LAN communication interface

Overview

The high-performance, cost-efficient DC Load is a programmable DC electronic load. This device offers multiple interfaces for remote connectivity to fulfill your varied test requirements. It has an intuitive interface and excellent performance specs. Fuel cells, aerospace, and automotive electronics are just a few of the fields where it can be employed extensively.
