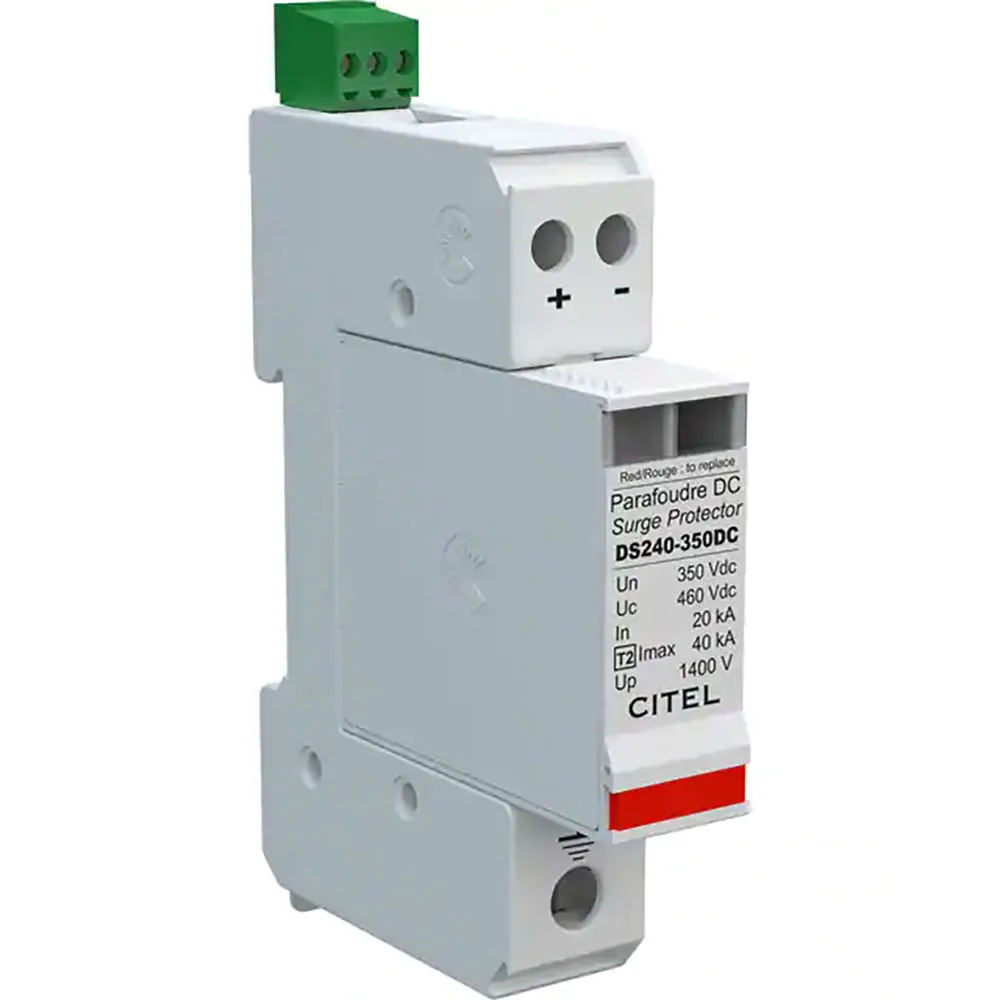

350 VDC DIN Rail Surge Protection Device 40kA Surge

Specifications

  • Max Load Current (IL): 20 A
  • Total Maximum discharge current: Imax Total: 80 kA
  • Protection mode(s): Common mode
  • Power SPD Type: UL1449 TYPE 4CA
  • Volts (V): 350 VDC
  • Phase (PH): n/a
  • Amps (A): n/a
  • Ambient Min (C): -35
  • Ambient Max (C): +85
  • Modes: DC+-DC-, DC+-G, DC-G
  • MLV DC (V): 2820/1410/1410
  • MCOV (V): 350/350/350
  • IN (kA): 10
  • SCCR (kA): n/a
  • IMAX (kA): 40
  • Outdoor Application: No
  • Technology: MOV
  • Network Configuration: 2W+G
  • Connection Method: Screw Terminal (8-12 AWG)
  • Mounting: DIN Rail
  • Material: Thermoplastic UL94-V0
  • NEMA Rating (IP Rating): NEMA 2 (IP20)
  • Fail-Safe Behavior: Disconnection via fuse-link
  • Real-Time Diagnostics: Visual indicator and remote contacts
  • Dimensions: See diagram (mm)
  • Weight: 0.30 lbs.

Compliance

Agency Approvals:UL, TUV, EAC

Dimensions & Appearance

Depth:67 mm
Width:18 mm
Height:90 mm
Mounting Type:DIN Rail

Features

IP Rating:IP20
Protection Style:Common Mode
Technology:MOV
Surge Current Rating:40 kA
Voltage Rating:350 VDC
Current Rating:20 A
,
