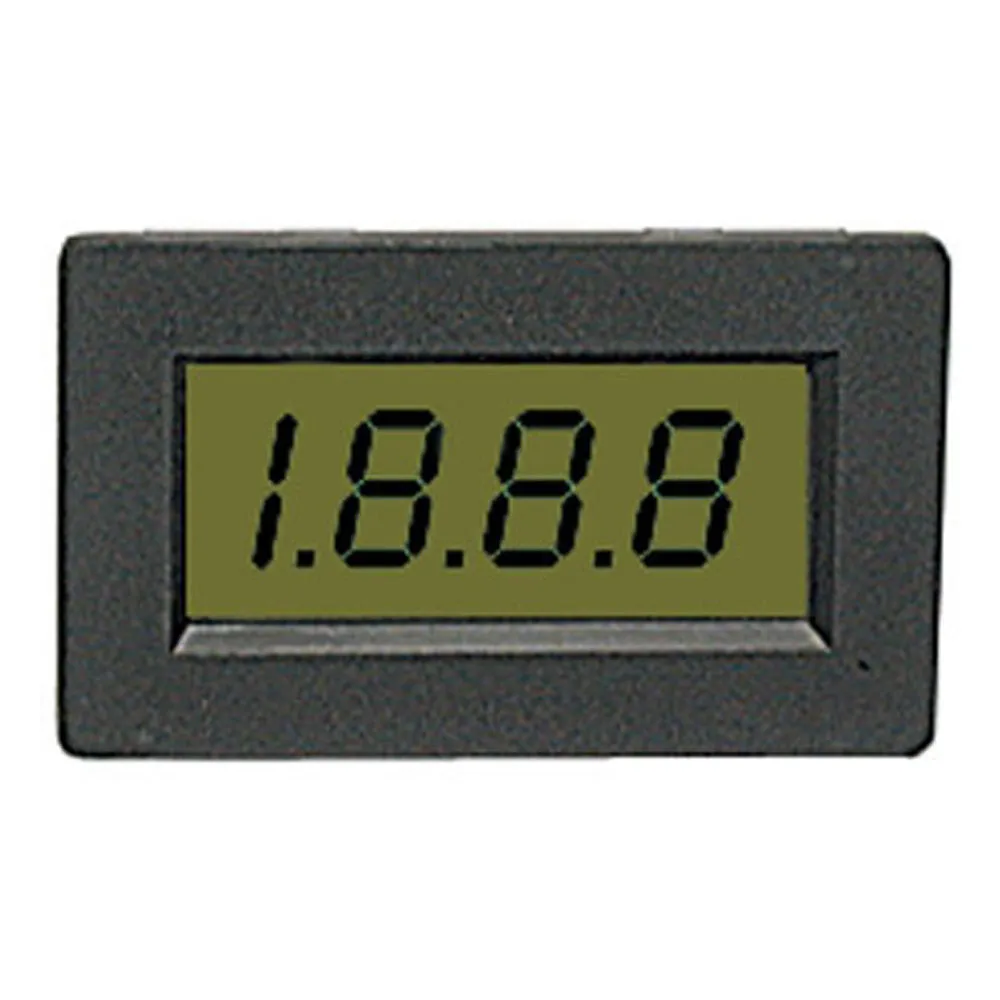

3.5 Digit LCD Digital Panel Meter

Features

  • Single 9V DC operation
  • Decimal point selectable
  • 0.51 inches (13mm) LCD figure height
  • Max. panel thickness: 0.165" (4.19mm)
  • Automatic Polarity Indication
  • Guaranteed zero reading for 0 volt input
Note: Cannot be used with common ground

Applications

  • Voltmeter
  • Current Meter
  • Thermometer
  • Capacitance Meter
  • dB Meter
  • Watt Meter
  • Other Industrial & Domestic Uses

Product Identification

Product Type:DC Voltmeter

Compliance

RoHS Status:Undefined

Dimensions & Appearance

Dimensions:2.68" x 1.73"

Input

Input:200mV FS
Input Voltage:8 VDC to 12 VDC

Features

Number of Digits:3.5
Decimal Point:Selectable
Display Type:LCD
Max Panel Thickness:0.165"
Character Size:0.51"
,
