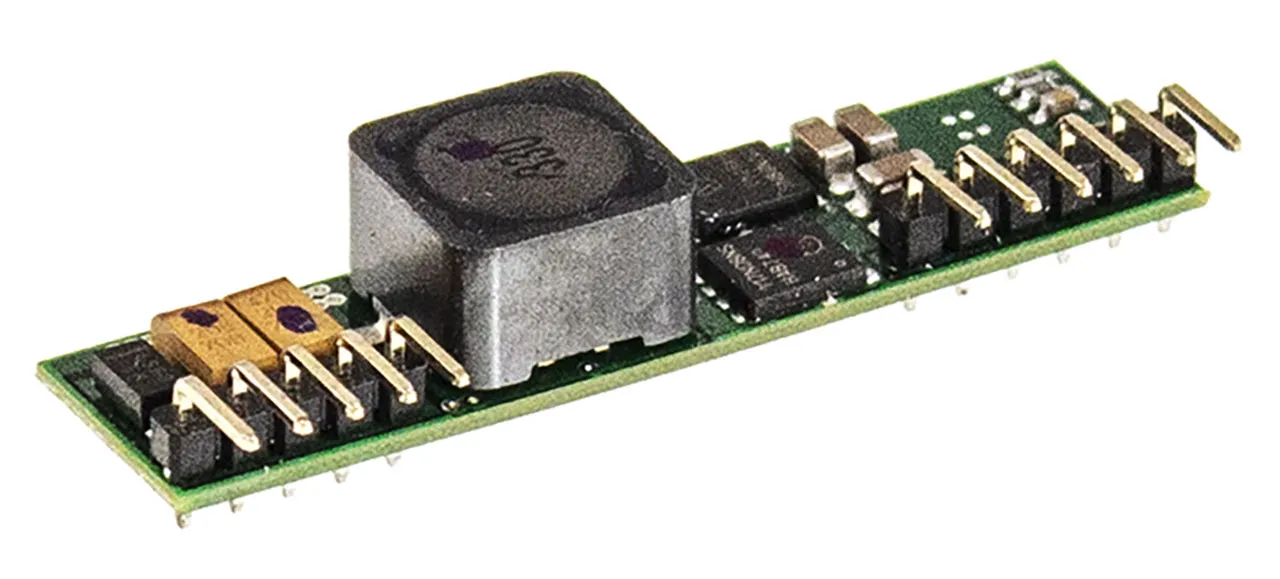

34.8W Non-Isolated DC-DC Regulated Converter 12V 2.9A Output 20-53Vin SIP

Features

  • Economical open frame design
  • Wide input range
  • High efficiency up to 95%
  • Remote ON/OFF control
  • Compact size: 2" x 0.512" x 0.433" (SIP package)
  • Protections: Short circuit, Overload, Over voltage
  • Wide working temperature: -30°C to +85°C
  • Cooling by free air convection
  • Complies to BS EN/EN55032 Class A without additional components
  • 3 year warranty

Overview

Specifications

  • DC Output Voltage: 12 VDC
  • Rated Output Current: 2.9 A
  • Rated Power: 34.8 W
  • External Capacitance Load (max.): 68 uF/25V low ESR
  • Input Voltage Range: 20 VDC to 53 VDC
  • Normal Input Voltage: 24 VDC (or 48 VDC)
  • Input DC Current (Full Load): 1580 mA / 24 VDC
  • Input DC Current (No Load): 30 mA
  • Input Protection: 3A fuse recommended

Product Identification

Type:Step Down
Product Type:DC-DC Non-isolated Regulated Converter SMPS
Manufacturer Series:NID35

Compliance

Agency Approvals:CE, EN, EAC, UKCA

Dimensions & Appearance

Color:Green
Height:0.512 in.
Width:0.433 in.
Length:2 in.
Mounting:Through Hole

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:85°C

Input

Input Voltage:24 VDC, 48 VDC
Input Voltage Range:20 VDC to 53 VDC
Maximum Input Current:1580 mA

Output

Number of Outputs:1
Output Connector Diameters:0.025" Square Post
Output Voltage:12 VDC
Output Connector Type:PC Pins
Additional Output Voltages (VDC):N/A
Output Current:2.9 A

Features

Pins:11
Efficiency:95%
Power Rating:34.8 W
,
