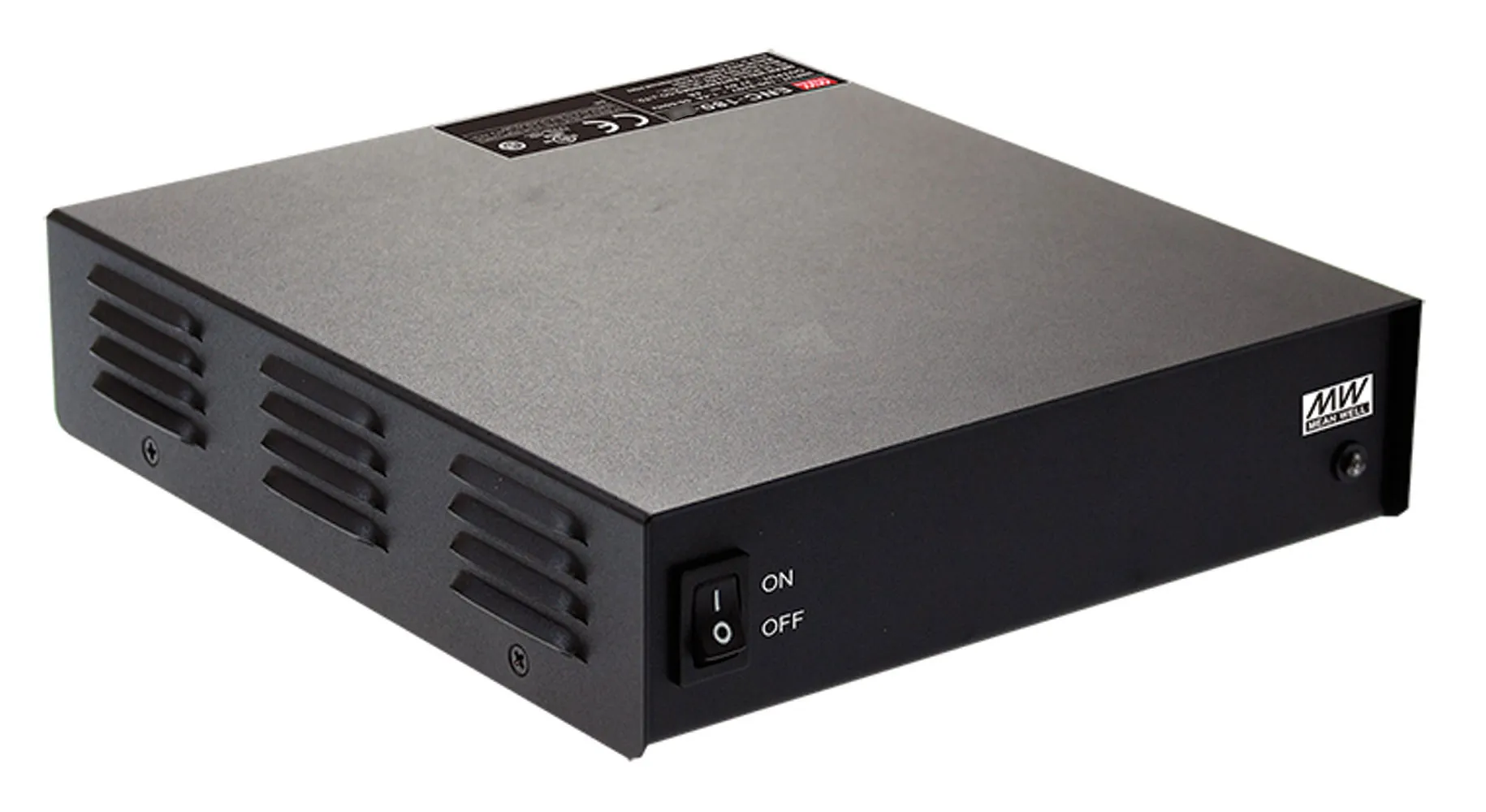

345W 57.6V 6A Programmable Desktop Type Battery Charger for SLA & Li-Ion Batteries

57.6V Boost/55.2V Float Charge Voltage @ 6 Amps

Features

    Recommended Battery Capacity: 25 - 65 Ah (Amp hours)
  • Input Voltage Range: 90-246VAC @ 47-63Hz
  • Compatible with both lead-acid (flooded/Gel/AGM) and li-ion (lithium-iron/lithium manganese) battery types
  • Built-in 3 stage programmable charging curve
  • Universal AC input/Full Range
  • Built-in active PFC function
  • Fanless design, with cooling via free air convection
  • Built-in temperature compensation function
  • Protections: Short circuit, over voltage, over temperature, battery under voltage, battery over voltage, battery reverse polarity protection
  • 3 year warranty

Specifications

  • Efficiency: 94%
  • Temperature: -30 to 70 Celsius
  • Dimensions: 7.56" x 7.01" x 1.79"

Applications for Use

  • Radio systems backup support
  • Surveillance systems
  • Electric Scooter Charging

Product Identification

Additional Feature:For Lead-Acid (flooded /Gel / AGM)
Product Type:Battery Charger
Manufacturer Series:ENC-120

Compliance

Agency Approvals: CB, CE, C-TICK, CUL, EAC, EN, FCC, UKCA, UL

Dimensions & Appearance

Color:Black
Length:1.8 in.
Height:7.6 in.
Width:7 in.

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:3.8 A

Output

Output Connector Type:Screw Terminal Block
Output Voltage:57.6 VDC
Output Range:36 VDC to 60 VDC
Output Current:6 A

Features

PFC Function:Yes
AC Power Cord:NOT INCLUDED, RECOMMEND 2271575
Efficiency:94%
Power Rating:345.6 W
,
