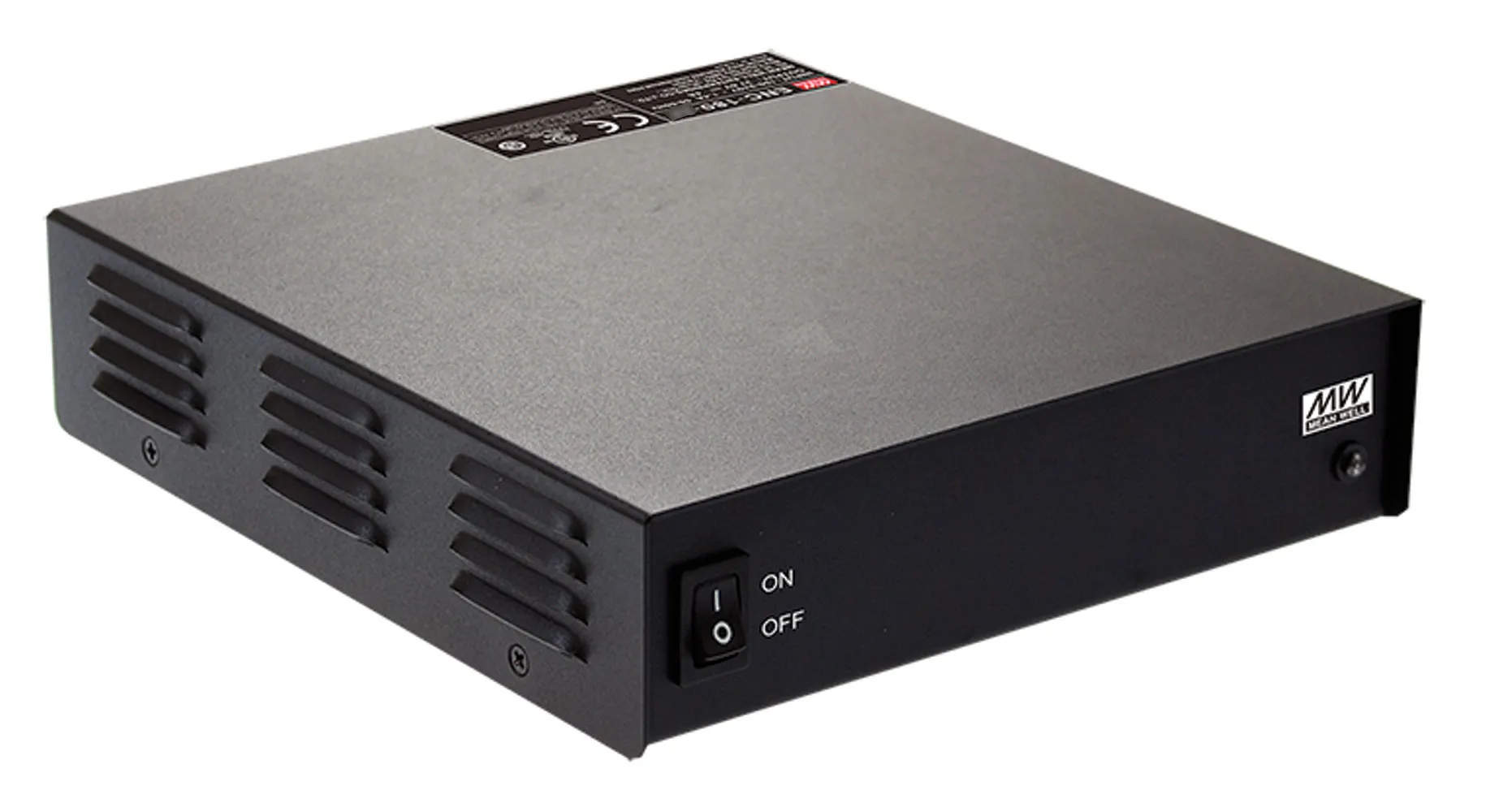

345W 14.4V 24A Programmable Desktop Type Battery Charger for SLA & Li-Ion Batteries

14.4V Boost/13.8 Float Charge Voltage @ 24 Amps

Features

  • Compatible with both lead-acid (flooded/Gel/AGM) and li-ion (lithium-iron/lithium manganese) battery types
  • Recommended Battery Capacity: 85 to 250 Ah (amp hours)
  • Built-in 3 stage programmable charging curve
  • Universal AC input/Full Range
  • Built-in active PFC function
  • Fanless design, with cooling via free air convection
  • Built-in temperature compensation function
  • 125% peak load capacity
  • Protection against: Short circuit/Over/Under-Voltage/Over-temperature/Reverse-polarity
  • 3 year warranty

Applications for Use

  • Radio systems backup support
  • Surveillance systems
  • Electric Scooter Charging

Product Identification

Additional Feature:For Lead-Acid (flooded /Gel / AGM)
Product Type:Battery Charger
Manufacturer Series:ENC-120

Compliance

Agency Approvals: CB, CE, C-TICK, CUL, EAC, EN, FCC, PSE, TUV, UKCA, UL

Dimensions & Appearance

Color:Black
Length:1.8 in.
Height:7.6 in.
Width:7 in.

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:3.8 A

Output

Output Range:9 VDC to 15 VDC
Output Voltage:14.4 VDC
Output Connector Type:Screw Terminal Block
Output Current:24 A

Features

PFC Function:Yes
AC Power Cord:NOT INCLUDED, RECOMMEND 2271575
Efficiency:91%
Power Rating:345.6 W
,
