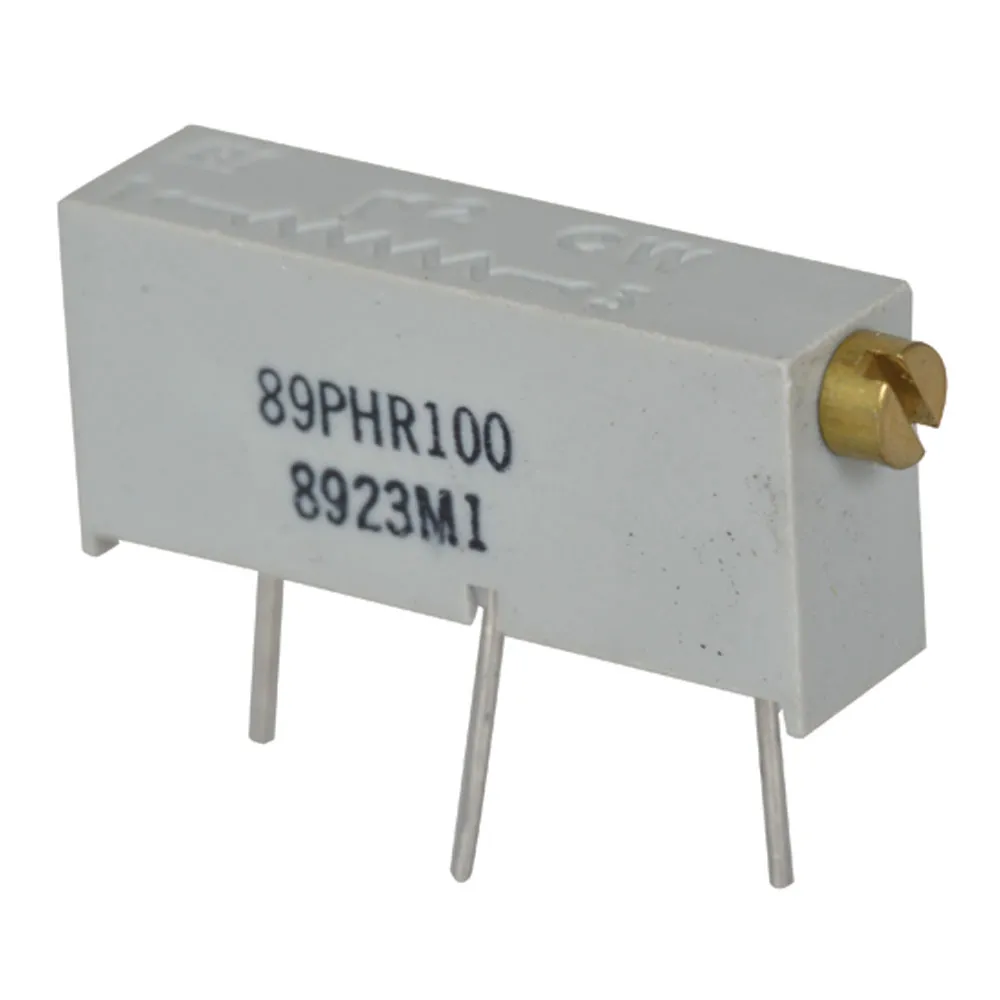

3/4 Inch Rectangular Cermet Trimming Potentiometer 20 Turns

Specifications

  • Ohms: 100
  • Shape: Rectangular
  • Size (inch):3/4
  • Watts: 3/4
  • Number of Turns: 20
  • Resistance Tolerance (±): 10%
  • Termination: Thru Hole
  • Size: Rectangular - 0.75"L x 0.195"W Face x 0.31"H

Product Identification

Family:P
Manufacturer Series:3009
Product Type:Trimmer

Dimensions & Appearance

Shaft Diameter:2.36 mm
Mounting:Through Hole
Length:19.05 mm
Width:4.83 mm
Height:8.98 mm

Operating conditions

Maximum Operating Temperature:125°C
Minimum Operating Temperature:-55°C

Features

Taper:Linear
Resistive Element Material:Cermet
Actuator Orientation:Side
Number of Turns:15
Tolerance:10%
Temperature Coefficient:100 ppm/°C
Resistance (Ohm):100
Technology:Sealed
Power Rating:0.75 W
Termination Style:Pins
Resistance:100 Ohm
Actuator Type:Side Slot
,
