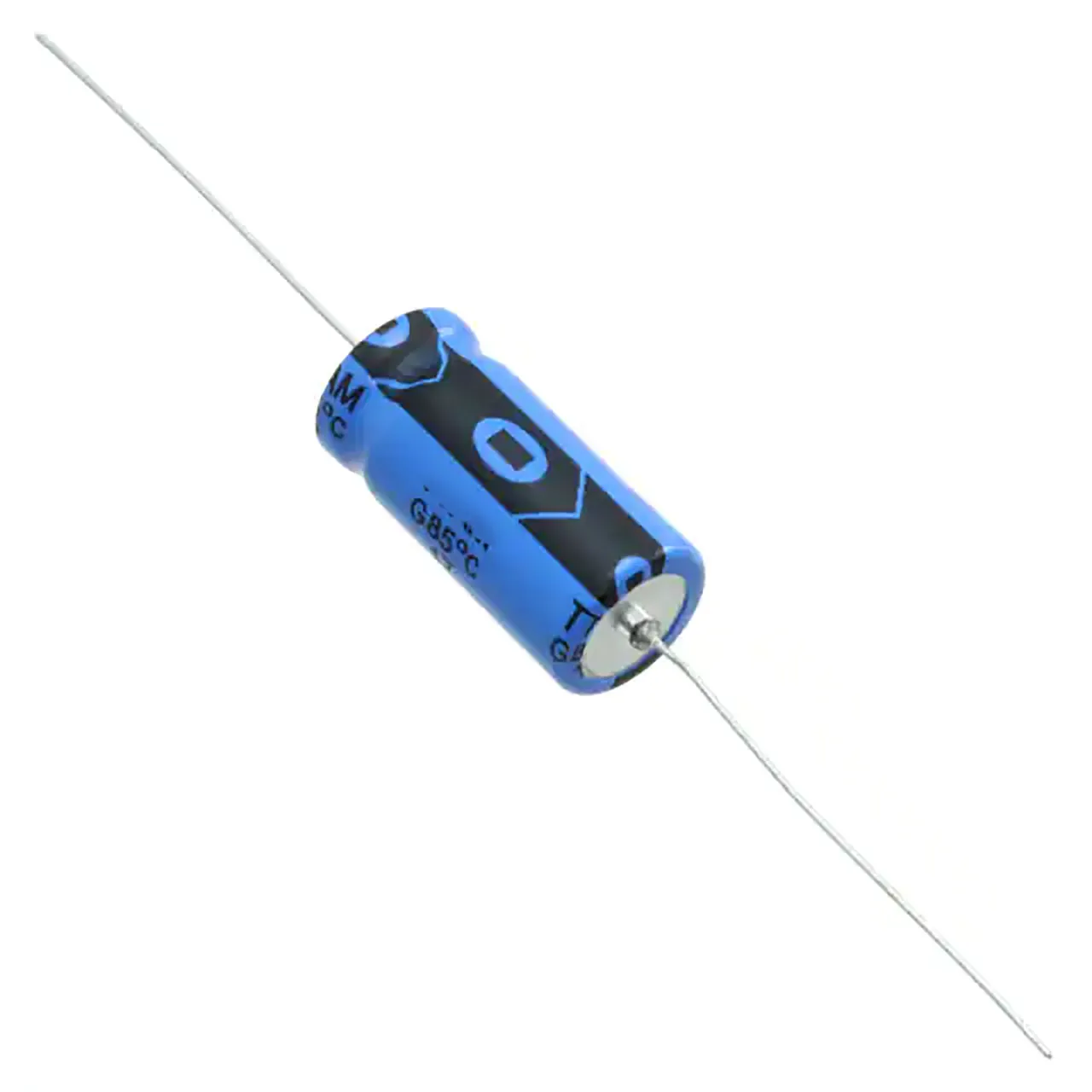

330µF 25V Axial Capacitor ±20%

Features

• Capacitance: 330 µF
• Tolerance: ±20%
• Voltage – Rated: 25 V
• ESR (Equivalent Series Resistance): 803.8mOhm at 120Hz
• Lifetime at Temp: 2000 Hrs at 85°C
• Operating Temperature: -40°C ~ 85°C
• Polarization: Polar
• Applications: General Purpose
• Ripple Current at Low Frequency: 385 mA at 120 Hz
• Ripple Current at High Frequency: 531.3 mA at 50 kHz
• Size / Dimension: 0.315" Dia x 0.787" L (16.00mm x 41.00mm)
• Mounting Type: Through Hole

Overview

This aluminum axial capacitor has a capacitance of 330µF and a voltage rating of 25.
