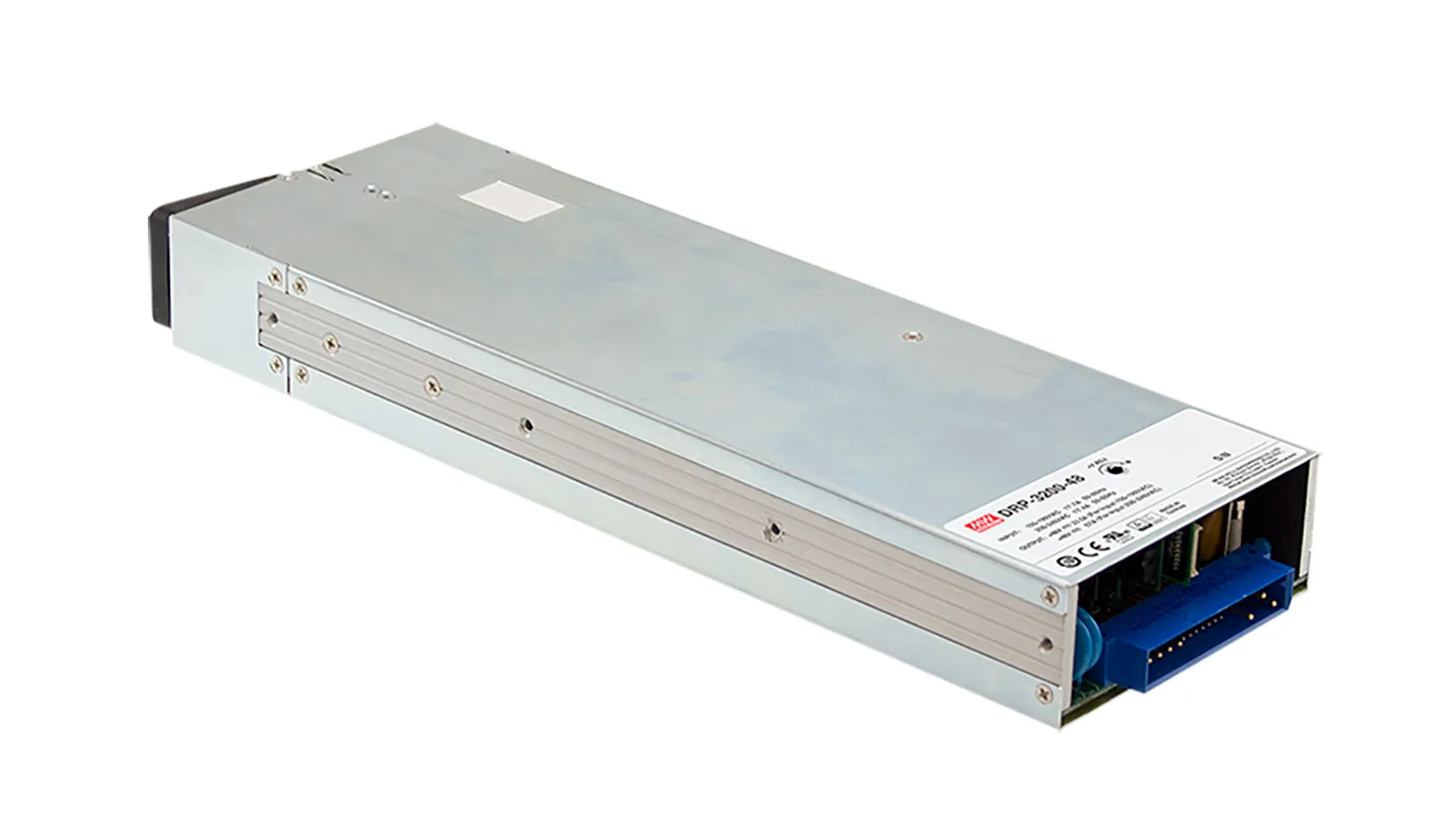

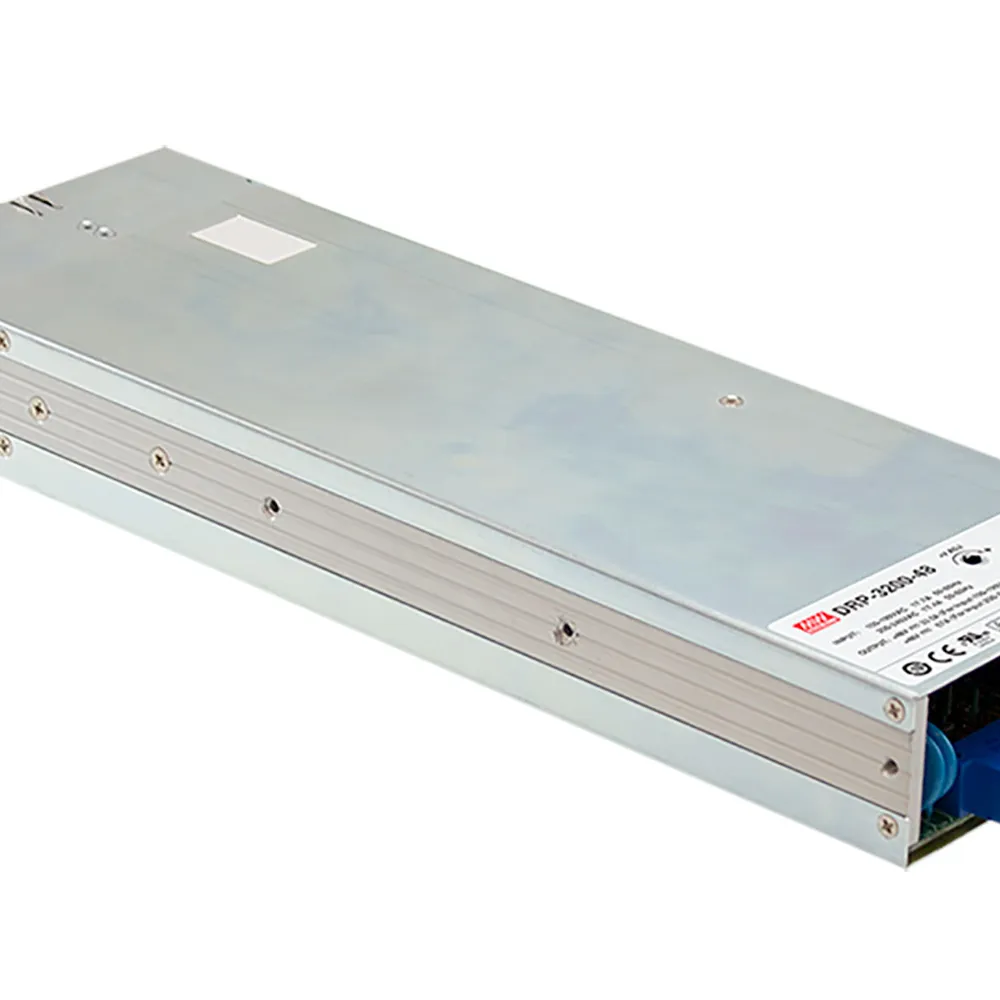

3216W AC-DC Rack Mountable Front End Power Supply with PFC and PMBus Protocol 48V 67A

48 Volts @ 67 Amps

Check out MEAN WELL's System Power Solutions

Features:

  • Universal AC input range
  • Protections: Short-circuit, Overload, Overvoltage, Overtemperature
  • Built-in active PFC function
  • Output voltage and constant current level programmable
  • Built-in OR-ing FET, support hot swap (hot plug)
  • Active current sharing up to 12800W for one 19" rack shelf
  • Built-in I2C interface, support PMBus protocol
  • 5-year warranty

Applications

  • Industrial automation
  • Distributed power architecture systems
  • Telecommunication systems
  • Redundant power system
  • Electric vehicle charger system
  • Constant current source system

Product Identification

Product Type:Regulated SMPS
Manufacturer Series:DRP-3200

Compliance

Agency Approvals: CB, CE, CUL, TUV, UL

Dimensions & Appearance

Style:Enclosed
Color:Silver
Height:1.6 in.
Length:12.8 in.
Width:4.2 in.

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:17 A

Output

Number of Outputs:1
Output Connector Type:Postronic PCIM34W13M400A1
Output Voltage:48 VDC
Output Current:67 A

Features

PFC Function:Yes
Minimum Isolation Voltage:3000V
Efficiency:94.5%
Power Rating:3216 W
,
