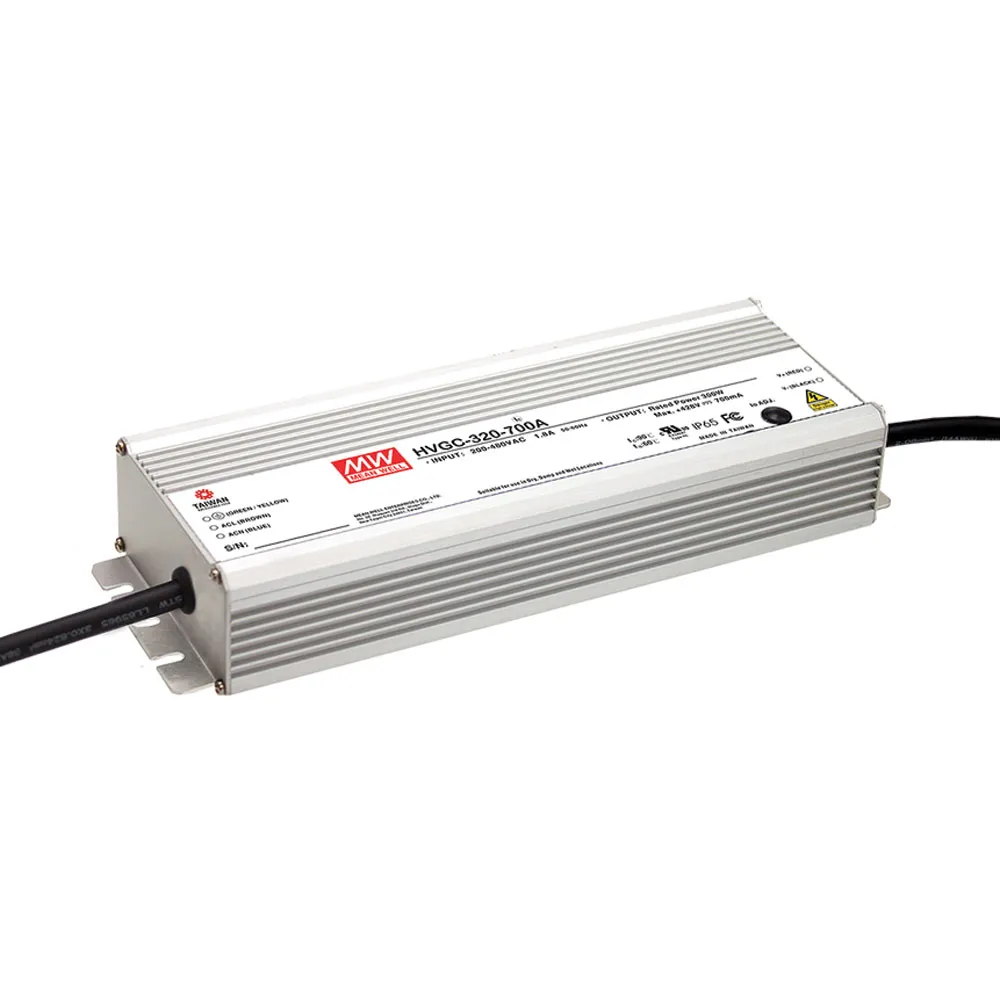

320W 2100mA 76.2-152.4V Constant Current Switching LED Power Supply

2100 mA @ 76.2-152.4 Volts

Features

  • "B" model - IP67, 3 in 1 Dimming Function (0~10Vdc, 10V PWM signal and resistance)
  • Wide input range (180-528 VAC)
  • Constant current mode output
  • Metal housing with Class I design
  • Built-in active PFC function
  • High efficiency up to: 93.5%
  • Cooling by free air convection
  • IP67 design for indoor or outdoor installations
  • Suitable for LED lighting and street lighting applications
  • Compliance to worldwide safety regulations for lighting
  • Suitable for dry / damp / wet locations
  • Type HL LED Driver for use in Class I, Division 2 hazardous(Classified) location luminaires
  • Typical lifetime >50,000 hours
  • 5 year warranty
  • Agency approvals: UL, CUL, CUS, FCC

    Applications

  • LED street lighting
  • LED high-bay lighting
  • Parking space lighting
  • LED fishing lamp
  • Class I, Division 2 hazardous (Classified) location luminaires

    • Product Identification

    Product Type:Auto Switching SMPS
    Manufacturer Series:HVGC-320

    Compliance

    Agency Approvals:UL, CUL, CE, FCC, EN, ENEC, EAC

    Dimensions & Appearance

    Style:Enclosed
    Color:Silver
    Height:1.72 in.
    Length:10.32 in.
    Width:3.54 in.

    Operating conditions

    Minimum Operating Temperature:-40°C
    Maximum Operating Temperature:80°C

    Input

    Input Frequency:47 Hz to 63 Hz
    Input Voltage:180 VAC to 528 VAC
    Maximum Input Current:1.1 A

    Output

    Number of Outputs:1
    Output Connector Type:Stripped and Tinned
    Output Voltage:See Output Range
    Output Current:2.10 A
    Output Range:76.2 VDC to 152.4 VDC

    Features

    PFC Function:Yes
    Minimum Isolation Voltage:3750V
    IP Rating:IP67
    Efficiency:93.5%
    Power Rating:320 W
    ,
