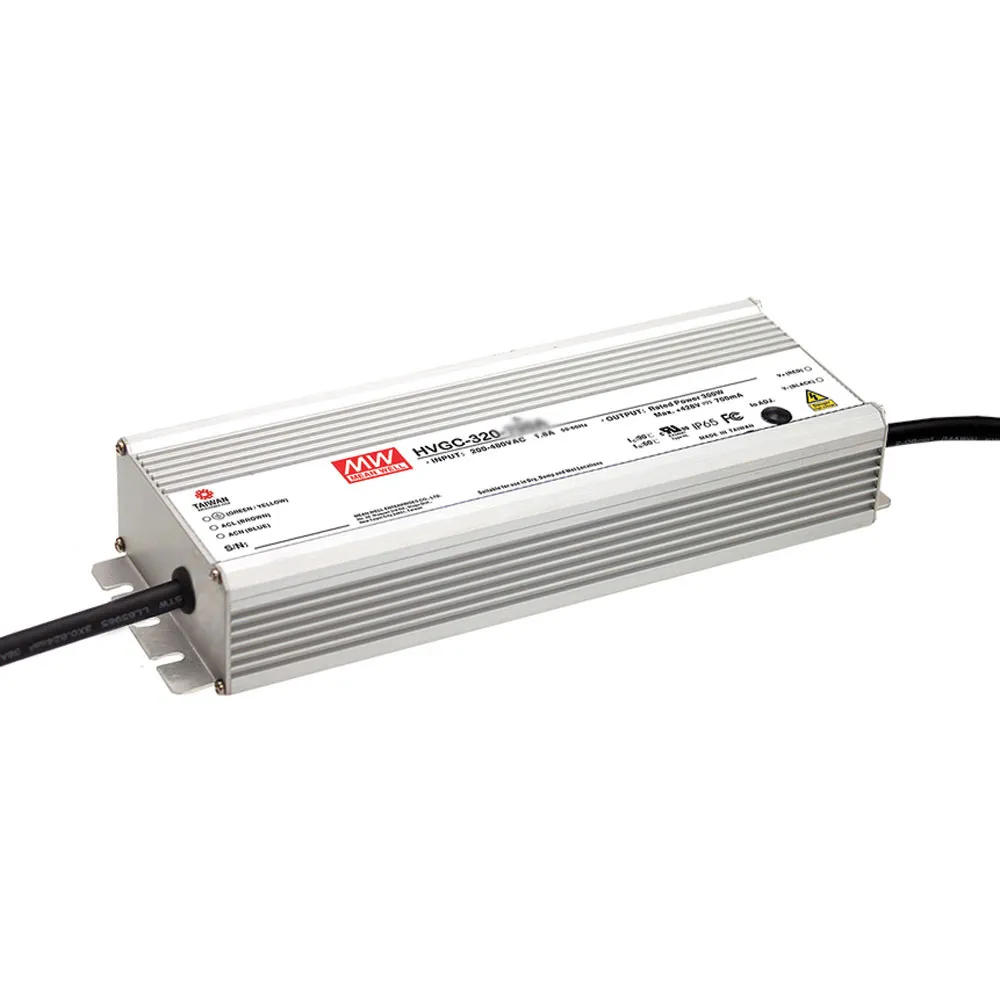

320W 1050mA 152.4-304.8V Constant Current Switching LED Power Supply

1050 mA @ 152.4 to 304.8 Volts

Features

  • "AB" model - IP65, Io adjustable through built-in potentiometer & 3-in-1 dimming function (0-10 VDC, 10V PWM signal and resistance)
  • Wide input range (180-528 VAC)
  • Constant current mode output
  • Metal housing with Class I design
  • Built-in active PFC function
  • High efficiency up to: 93.5%
  • Cooling by free air convection
  • IP65 design for indoor or outdoor installations
  • Suitable for LED lighting and street lighting applications
  • Compliance to worldwide safety regulations for lighting
  • Suitable for dry / damp / wet locations
  • Type HL LED Driver for use in Class I, Division 2 hazardous(Classified) location luminaires
  • Typical lifetime >50,000 hours
  • 5 year warranty
  • Agency approvals: UL, CUL, CUS, FCC

Specifications

  • Rated Current: 1050 mA
  • Rated Power: 320 W
  • Constant Current Region: 152.4 V to 304.8 V
  • Current Adjustment Range: 525 to 1050 mA (via built-in potentiometer)

Applications

  • LED street lighting
  • LED high-bay lighting
  • Parking space lighting
  • LED fishing lamp
  • Class I, Division 2 hazardous (Classified) location luminaires

Product Identification

Product Type:Auto Switching SMPS
Manufacturer Series:HVGC-320

Compliance

Agency Approvals:UL, CUL, CE, FCC, EN, ENEC, EAC

Dimensions & Appearance

Style:Enclosed
Color:Silver
Height:1.72 in.
Length:10.32 in.
Width:3.54 in.

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:80°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:180 VAC to 528 VAC
Maximum Input Current:1.1 A

Output

Number of Outputs:1
Output Connector Type:Stripped and Tinned
Output Voltage:See Output Range
Output Current:1.05 A
Output Range:152.4 VDC to 304.8 VDC

Features

PFC Function:Yes
Minimum Isolation Voltage:3750V
IP Rating:IP65
Efficiency:93.5%
Power Rating:320 W
,
