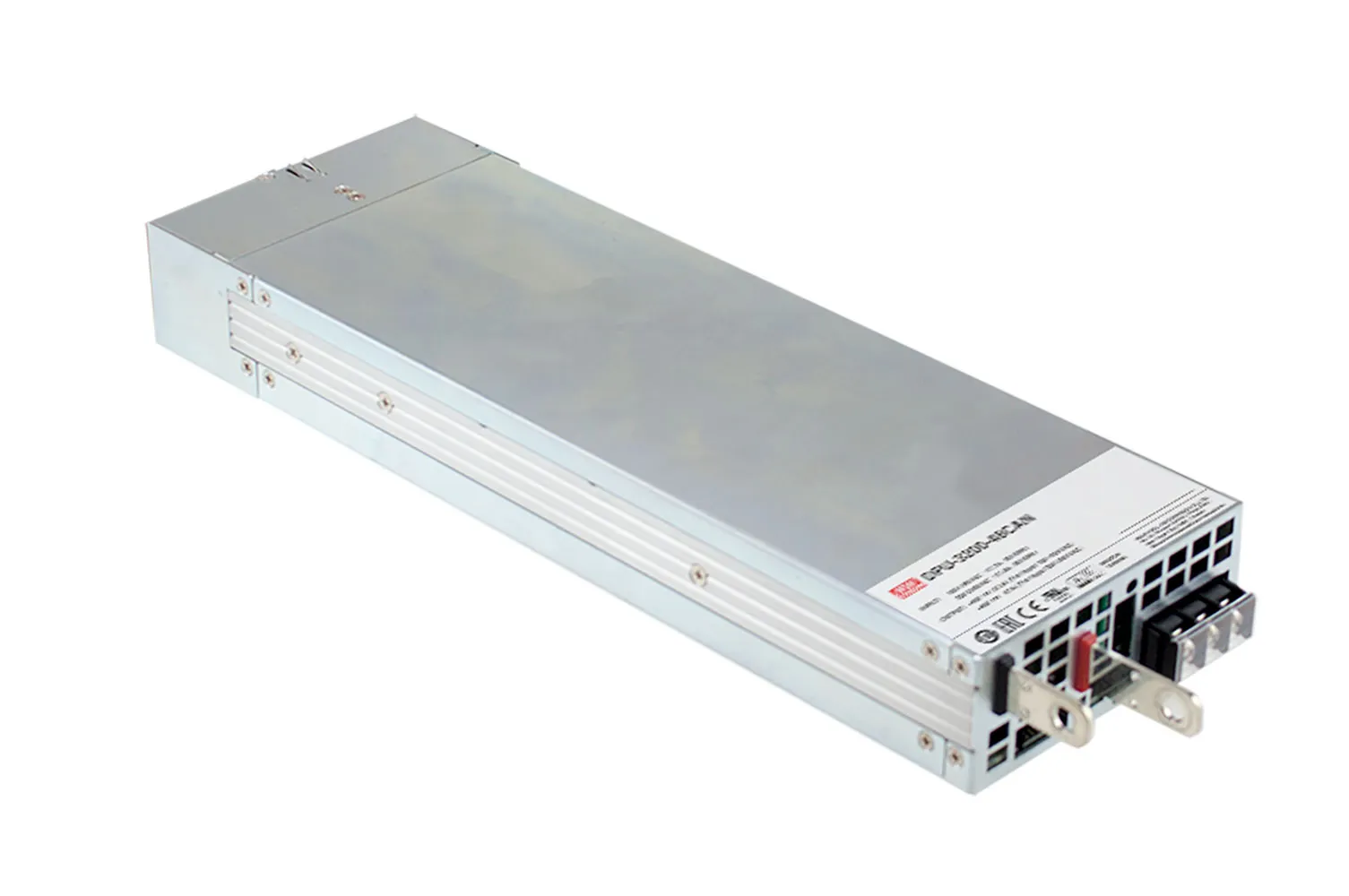

3200W 1U Profile AC-DC Single Output Power Supply with PFC and Parallel Function 24V 133A

Output: 24 Volts DC @ 133 Amps

Features:

  • Built-in active PFC function
  • Forced air cooling by built-in DC fan
  • Output voltage and constant current level programmable
  • Active current sharing up to 16000W (4+1)
  • High efficiency up to 93.5%
  • Protections: Short circuit / Overload/ Over Voltage / Over temperature
  • 5 year warranty

Applications

  • Factory control or automation apparatus
  • Test and measurement instrument
  • Laser related machine
  • Aging facility
  • Digital broadcasting
  • Constant current source
  • Redundant system

Product Identification

Type:Auto Switching SMPS
Manufacturer Series:DPU-3200

Compliance

Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL

Dimensions & Appearance

Style:Enclosed
Color:Silver
Height:1.61 in.
Length:12.83 in.
Width:4.21 in.

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:17 A

Output

Number of Outputs:1
Output Voltage (Channel 1):24 VDC
Output Connector Type:Screw Terminal Block
Output Voltage:24 VDC
Output Current (Channel 1):133 A
Output Current:133 A

Features

PFC Function:Yes
Minimum Isolation Voltage:3000V
Efficiency:93.5%
Power Rating:3192 W
,
